ENGINE OVERHAUL GASKET KIT

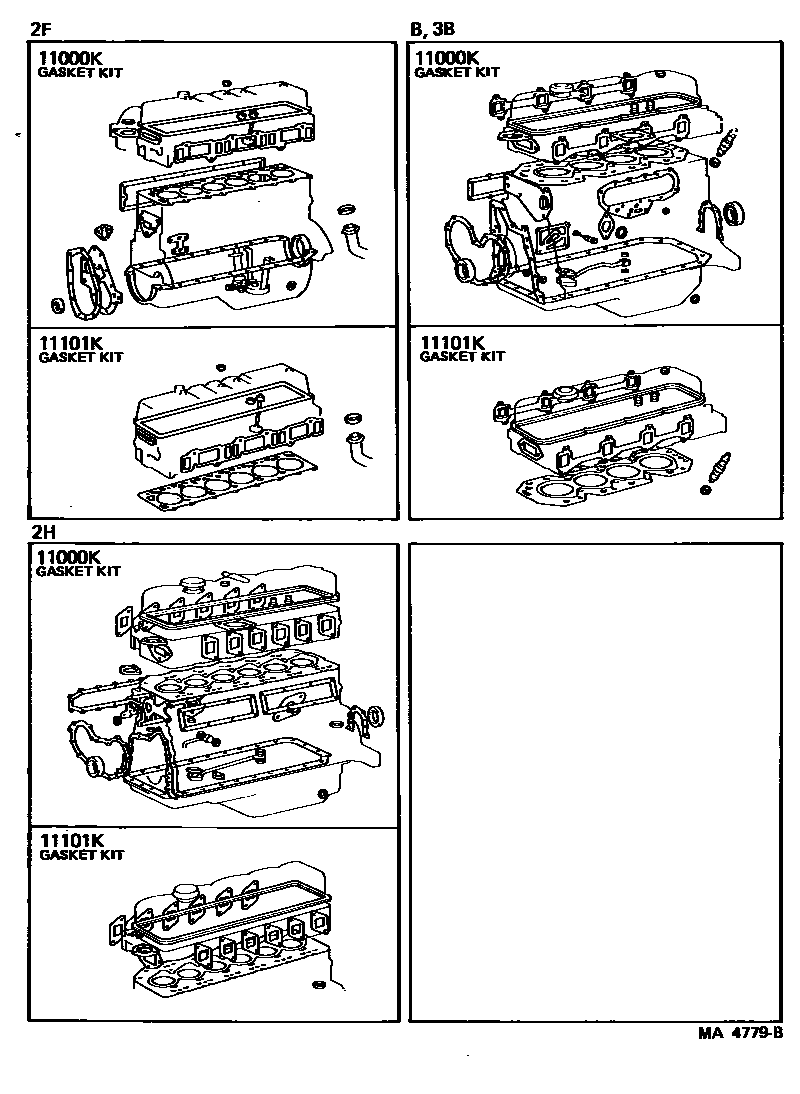

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-56030i198008-198105

main04111-56031i198105-198308

main04111-56032i198308-198408

main04111-56034i198408-198410

main04111-58011i198008-198105

main04111-58012i198105-198308

main04111-58013i198308-198408

main04111-58050i198408-198410

main04111-61040i198008-198410

main04111-61041i198410-198604

main04111-68010i198008-198506

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-56020i198008-198308

main04112-56021i198308-198408

main04112-56023i198408-198410

main04112-58010i198008-198308

main04112-58011i198308-198408

main04112-58040i198408-198410

main04112-61040i198008-198604

main04112-68010i198008-198506

2 parts on this diagram · 1 diagram in section
