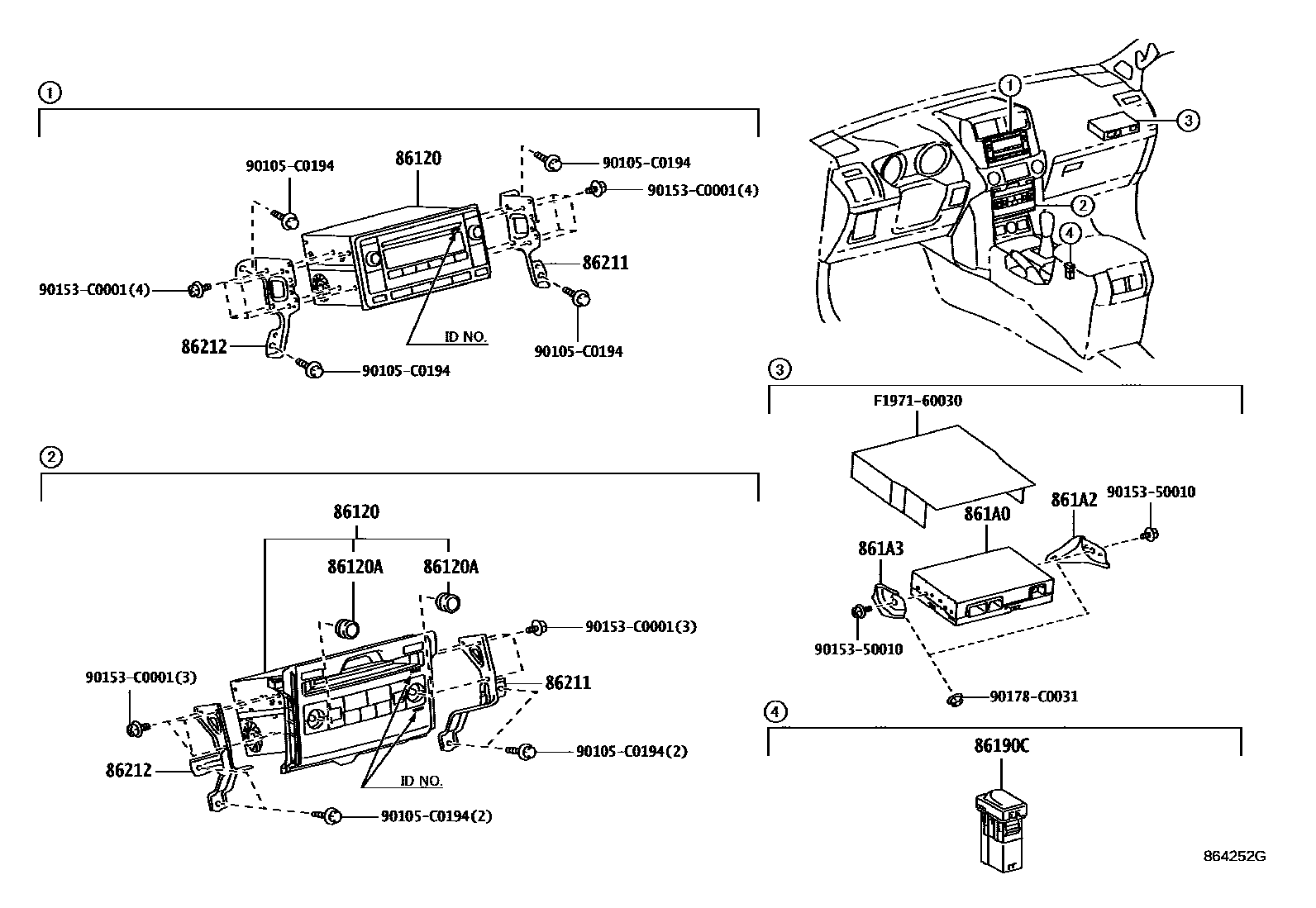

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AUDIO UNIT & USB JACK & ECU 0002 1AUDIO UNIT & USB JACK 0003 1AUDIO UNIT & USB JACK 0004 1AUDIO AMP 0005 1AUDIO AMP 0006 1AUDIO AMP(VERTICAL MOUNT) 0007 1AUDIO AMP(HORIZONTAL MOUNT) 0008 1CONDENSER 0009 1CONDENSER 0010 1I-POD/VTR CABLE

86120RECEIVER ASSY, RADIO

main86120-0G040supersedes 86120-0G050iGRJ150..TX201005-201311

PIONEER,ID=P7592,TX-L PACKAGE&AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

sub86120-0G041

main86120-0G070supersedes 86120-0G060iGRJ150..VX201005-201311

PIONEER,ID=P7591,AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

sub86120-0G071

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22074×2supersedes 90010-22073iGRJ150..VX201005-201311

AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0G010iGRJ150201212-201311

main86190-0G020iGRJ152,TRJ152201311-201711

main86190-12040iGRJ152201711-202006

main86190-60040iGRJ150201005-201212

861A0COMPUTER ASSY, MULTI-MEDIA INTERFACE

main861A0-0G010supersedes 861A0-48030iGRJ150201212-201311

AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

main861A0-77010supersedes 861A0-48030iGRJ150201005-201107

AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

sub861A0-77011

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-60010iGRJ150201005-201311

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-60010iGRJ150201005-201311

86211BRACKET, RADIO, NO.1

main86211-0G010supersedes 86211-0G020iGRJ150..TX201005-201311

AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

86212BRACKET, RADIO, NO.2

main86212-0G010supersedes 86212-0G020iGRJ150..TX201005-201311

AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

90105C0194

main90105-C0194

9015350010

main90153-50010

90153C0001

main90153-C0001

90178C0031

main90178-C0031

F197160030COVER, ECU WATER PROOF

mainF1971-60030

13 parts on this diagram · 10 diagrams in section
