REAR WIPER

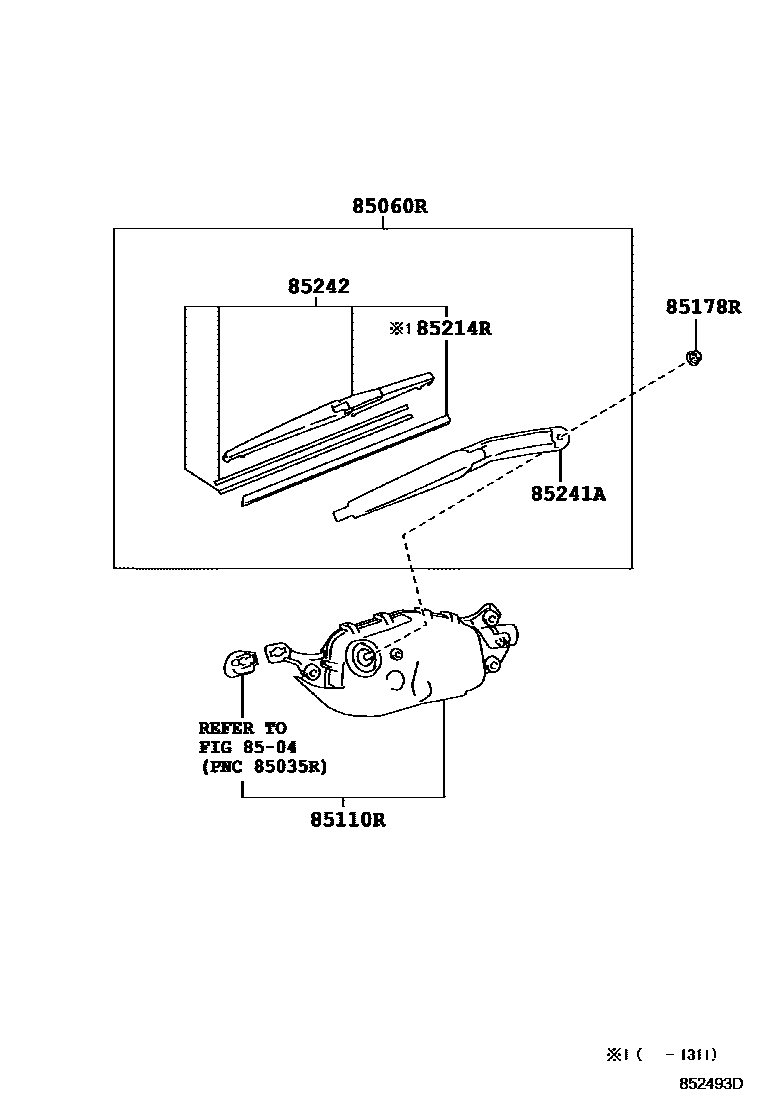

Parts diagram

8504

85060RARM AND BLADE ASSY, REAR WIPER

main85240-0G040i201311-201412

main85240-0G041i201501-201509

85110RMOTOR ASSY, REAR WIPER

main85130-0G040i201212-201311

main85130-60270i201005-201212

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06178i201311-201401

main90182-C0006i201401-201711

85214RRUBBER, REAR WIPER

main85214-42040i201005-201311

85241AARM, REAR WIPER

main85241-60150i201005-201311

main85241-60151i201501-201509

85242BLADE, RR WIPER

main85242-42030i201005-201311

main85242-60100i201501-201509

7 parts on this diagram · 1 diagram in section
