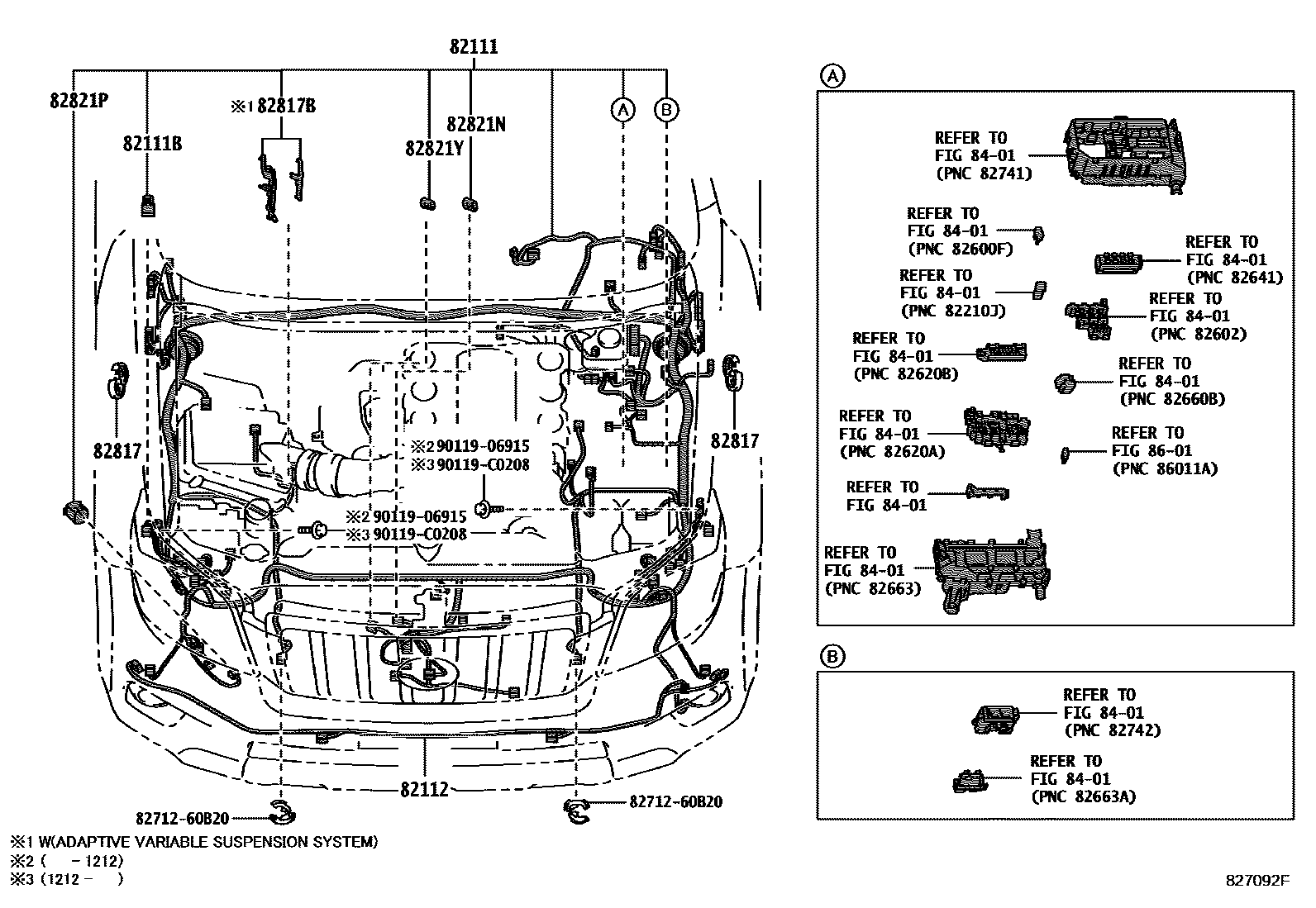

WIRING & CLAMP

0001 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0006 1ENGINE 0008 1ENGINE 0009 1ENGINE 0011 1INSTRUMENT PANEL & CONSOLE BO0014 1DOOR 0017 1FLOOR,FRAME & ROOF 0020 1SEAT 0023 1CLAMP & BRACKET 0025 1CLAMP & BRACKET 0027 1CLAMP & BRACKET 0029 1CLAMP & BRACKET 0031 1CABLE BOND 0033 1CABLE BOND 0034 1CABLE BOND 0035 1CONNECTOR 1/4 0036 1CONNECTOR 2/4 0037 1CONNECTOR 3/4 0038 1CONNECTOR 4/4

82111WIRE, ENGINE ROOM MAIN

main82111-0G070iGRJ150..TX201005-201208

main82111-0G130iGRJ150..TX201208-201311

main82111-0G220iTRJ152201509-201711

main82111-6AG70iTRJ150201503-201509

main82111-0G090supersedes 82111-0G080iGRJ150..VX201005-201208

*AVS-WITH

main82111-0G150supersedes 82111-0G140iGRJ150..VX201208-201311

*AVS-WITH

main82111-0G180supersedes 82111-0G170iGRJ150..VX201311-201509

AUDIO-AVN & JBL & 14SPEAKER

main82111-0G210supersedes 82111-0G310iGRJ152..VX201509-201711

AUDIO-AVN & JBL & 14SPEAKER

main82111-0G230iTRJ152..6FC201509-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL

main82111-0G280supersedes 82111-0G310iGRJ152..VX201711-201802

VX NAVI PACKAGE

main82111-0G281supersedes 82111-0G310iGRJ152..VX201803-201804

VX NAVI PACKAGE

main82111-0G282supersedes 82111-0G310iGRJ152..VX201805-201806

VX NAVI PACKAGE

main82111-0G320supersedes 82111-0G310iGRJ152..VX201806-202006

VX NAVI PACKAGE

main82111-6AG80iTRJ150..4FC201503-201509

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL

82111BCONDENSER

main90980-04083iTRJ150201503-201509

82112WIRE, ENGINE ROOM, NO.2

main82112-0G040iGRJ150..VX201005-201311

TX-L PACKAGE&AUDIO-HDD NAVIGATION & DVD-CHANGER & 14SPEAKER

main82112-0G050iGRJ15#,TRJ15#..TX201311-201711

main82112-0G060iGRJ15#..VX201311-201711

TX-L PACKAGE

main82112-0G100supersedes 82112-0G090iGRJ152..VX201711-202006

TX-L NAVI PACKAGE&AUDIO-AVN & JBL & 14SPEAKER

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840×3iGRJ152,TRJ152201509-201711

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-60K80iGRJ152201711-201806

82821NCOVER, CONNECTOR

main82821-12400iGRJ152,TRJ152201503-201711

82821PCOVER, CONNECTOR

main82821-50560iGRJ152,TRJ152201509-201711

82821YCOVER, CONNECTOR

main82821-71080iTRJ150201503-201509

8401

8601

8271260B20CLAMP, WIRING HARNESS

main82712-60B20

9011906915

main90119-06915

90119C0208

main90119-C0208

13 parts on this diagram · 21 diagrams in section
