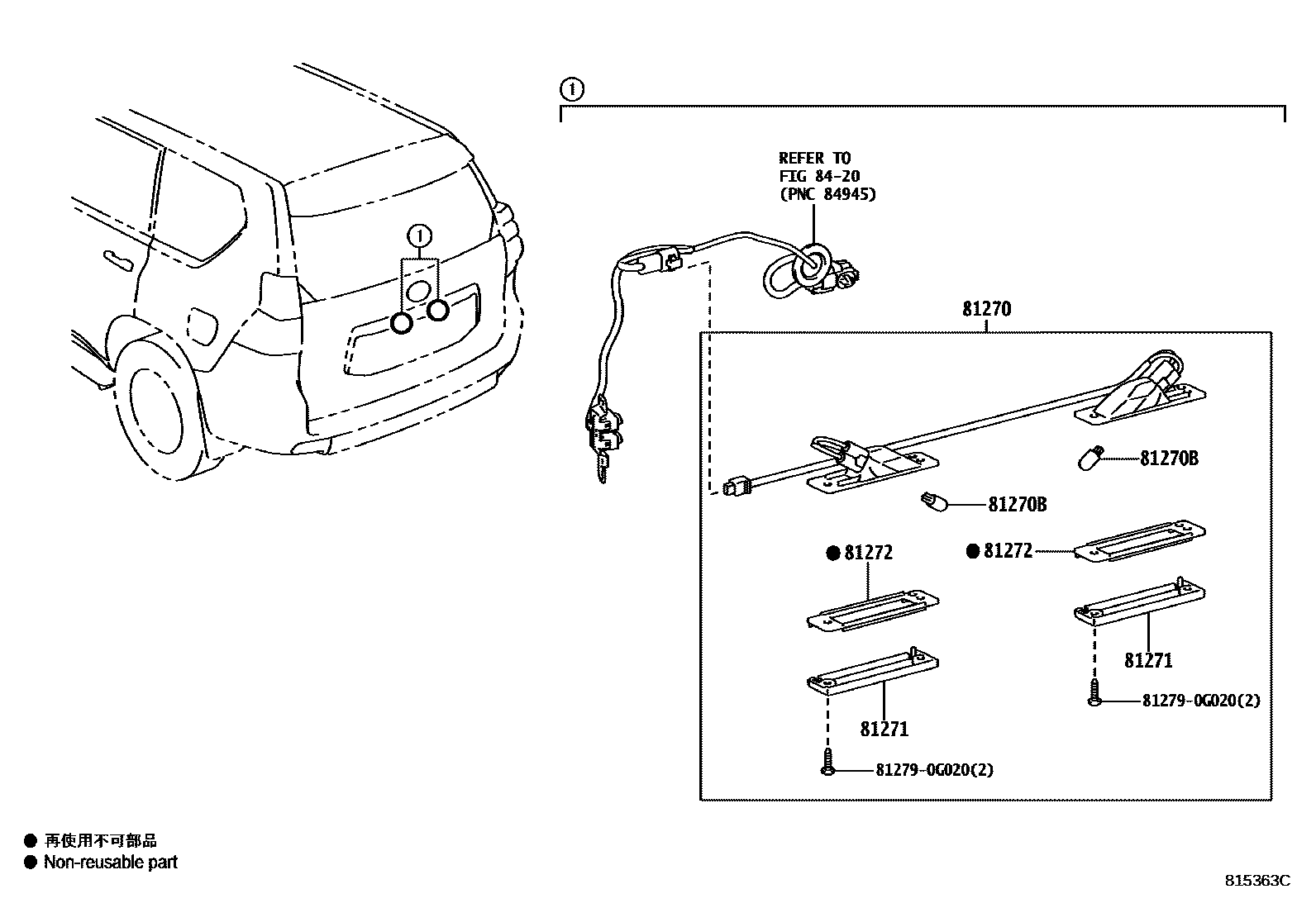

REAR LICENSE PLATE LAMP

0001 1SPARE TIRE-WITH(UNDER FRAME) 0002 1SPARE TIRE-WITH(BACK DOOR)

81270LAMP ASSY, LICENSE PLATE

main81270-0G020iGRJ150201005-201311

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iGRJ150201005-201311

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-0G020×2iGRJ150201005-201311

main81271-24010×2supersedes 81271-0G020iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

81272GASKET, LICENSE PLATE LAMP LENS

main81272-0G020×2iGRJ150201005-201311

main81272-24010×2supersedes 81272-0G020iGRJ152201711-202006

SPARE TIRE-WITH(BACK DOOR)

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

812790G020WASHER, SIDE TURN SIGNAL LAMP

main81279-0G020

6 parts on this diagram · 2 diagrams in section
