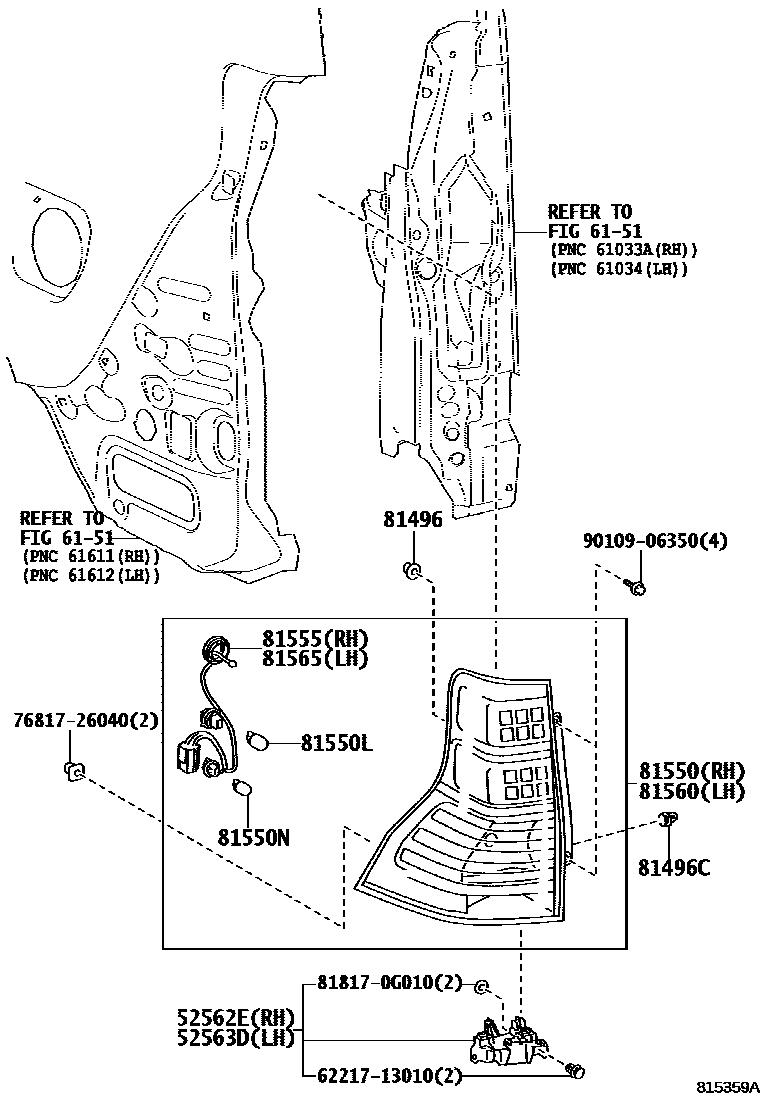

REAR COMBINATION LAMP

0001 1 0004 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0G010iGRJ150201005-201311

main52562-0G020iGRJ152201711-202006

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0G010iGRJ150201005-201311

main52563-0G020iGRJ152201711-202006

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iGRJ150201005-201311

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iGRJ150201005-201311

main90467-C0019×2iGRJ152201908-202006

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0G010iGRJ150201005-201307

main81550-0G011iGRJ150201308-201311

main81550-0G020iGRJ150,TRJ150201311-201509

main81550-0G021iGRJ152,TRJ152201701-201711

main81550-0G040iGRJ152201711-202006

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iGRJ150201005-201311

81550NBULB, BACK UP LAMP

main90981-11059×2iGRJ150201005-201311

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0G010iGRJ150201005-201308

main81555-0G011iGRJ150201308-201311

main81555-0G020iGRJ150,TRJ150201311-201509

main81555-0G021iGRJ152,TRJ152201701-201711

main81555-60C30iGRJ152201711-202006

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0G010iGRJ150201005-201307

main81560-0G011iGRJ150201308-201311

main81560-0G020iGRJ150,TRJ150201311-201508

main81560-0G021iGRJ152,TRJ152201509-201612

main81560-0G022iGRJ152,TRJ152201701-201711

main81560-0G040iGRJ152201711-202006

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0G010iGRJ150201005-201308

main81555-0G011iGRJ150201308-201311

main81555-0G020iGRJ150,TRJ150201311-201509

main81555-0G021iGRJ152,TRJ152201701-201711

main81555-60C30iGRJ152201711-202006

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

818170G010PACKING, CENTER STOP LAMP

main81817-0G010

9010906350

main90109-06350

15 parts on this diagram · 2 diagrams in section
