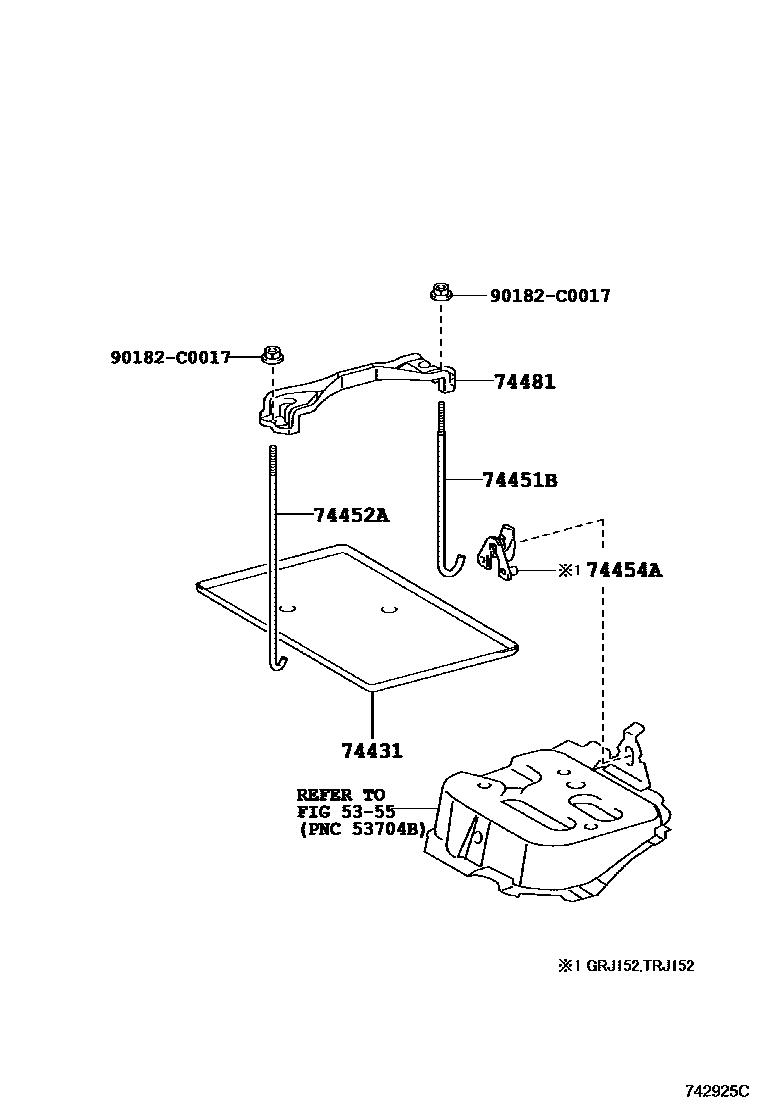

BATTERY CARRIER

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

74431TRAY, BATTERY

main74431-0G010iGRJ150201005-201311

74451BBOLT, BATTERY CLAMP

main74451-35090iGRJ150201005-201311

74452ABOLT, BATTERY CLAMP, NO.2

main74451-52070iGRJ150201005-201311

main74451-52071iGRJ150,TRJ150201410-201509

74454ASUPPORT, BATTERY SET BOLT

main74454-60040iGRJ152,TRJ152201509-201711

74481CLAMP, BATTERY HOLD DOWN

main74481-26020iGRJ150201005-201311

90182C0017

main90182-C0017

7 parts on this diagram · 1 diagram in section
