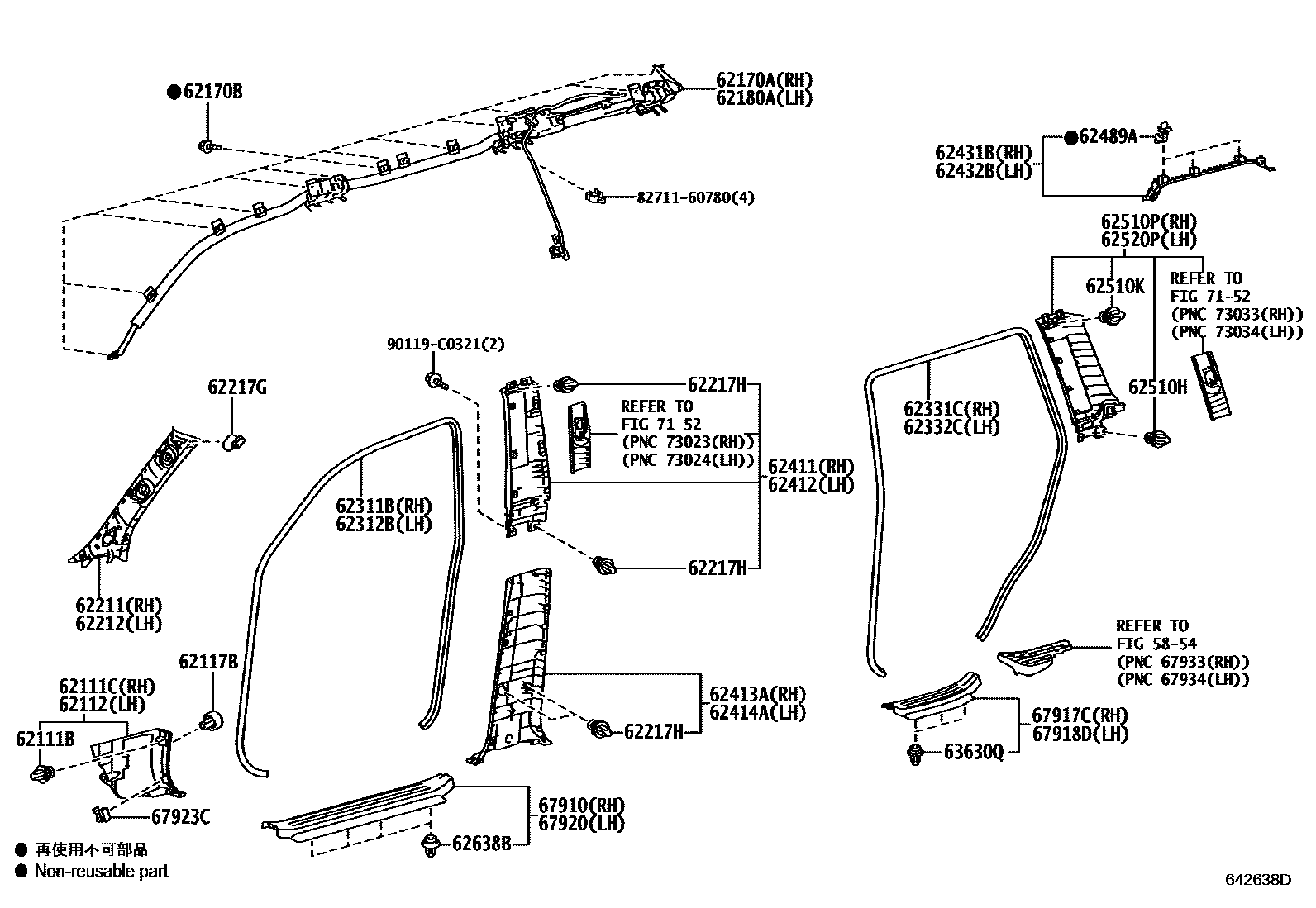

INSIDE TRIM BOARD

0001 1 0002 1 0003 1W/O(REAR NO.2 SEAT) 0004 1W(REAR NO.2 SEAT) 0005 1W(REAR NO.2 SEAT)

5854

62111BCLIP(FOR COWL SIDE TRIM)

main62217-13010iGRJ150,TRJ150201005-202006

62111CBOARD, COWL SIDE TRIM, RH

main62111-0G020-A0iGRJ150201005-201311

IVORY,TRIM0#

main62111-0G020-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62111-0G020-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main62111-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-0G020-A0iGRJ150201005-201311

IVORY,TRIM0#

main62112-0G020-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62112-0G020-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main62112-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06183iGRJ152201005-202006

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0G020iGRJ152..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main62170-0G020iGRJ152201005-202006

main62170-0G030iGRJ152,TRJ152..TX201311-201711

62170BBOLT, W/WASHER

main90119-06869iGRJ150..VX201311-201409

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main90119-06869iGRJ150201005-201311

main90119-C0359iGRJ150..VX201409-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main90119-C0359iGRJ152201711-202006

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0G020iGRJ150..VX201311-201711

REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER

main62180-0G020iGRJ150201005-202006

main62180-0G050iGRJ152,TRJ152..TX201311-201711

62211GARNISH, FRONT PILLAR, RH

main62210-0G020-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62210-0G040

main62210-0G020-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62210-0G040

main62210-0G020-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62210-0G040

main62210-0G040-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62210-0G040-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62210-0G040-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-0G020-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62220-0G040

main62220-0G020-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62220-0G040

main62220-0G020-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62220-0G040

main62220-0G040-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62220-0G040-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62220-0G040-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-60020iGRJ152,TRJ152201005-202006

62217HCLIP, CENTER PILLER GARNISH

main90467-10161iGRJ150201005-202006

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62311-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62311-0G010-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main62311-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62312-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62312-0G010-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main62312-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62331-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62331-0G010-C0iGRJ15#,TRJ15#201311-202006

BLACK,TRIM2#

main62331-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62332-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62332-0G010-C0iGRJ152201311-202006

BLACK,TRIM2#

main62332-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-0G010-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62410-0G020

main62410-0G010-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62410-0G020

main62410-0G010-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62410-0G020

main62410-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62410-0G020-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62410-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-0G010-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62420-0G020

main62420-0G010-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62420-0G020

main62420-0G010-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62420-0G020

main62420-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62420-0G020-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62420-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0G020-A0iGRJ150201212-201311

IVORY,TRIM0#

main62413-0G020-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62413-0G020-C0iGRJ15#,TRJ15#201311-201711

BLACK,TRIM2#

main62413-60090-A0iGRJ150201005-201212

IVORY,TRIM0#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0G020-A0iGRJ150201212-201311

IVORY,TRIM0#

main62414-0G020-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62414-0G020-C0iGRJ15#,TRJ15#201311-201711

BLACK,TRIM2#

main62414-60090-A0iGRJ150201005-201212

IVORY,TRIM0#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62431-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62431-0G010-B0iGRJ15#,TRJ15#201311-202006

LT.GRAY,TRIM2#

main62431-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62432BGARNISH, ROOF SIDE RAIL, NO.1 LH

main62432-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

main62432-0G010-A1iGRJ15#,TRJ15#201311-201711

FLAXEN,TRIM0#

main62432-0G010-B0iGRJ15#,TRJ15#201311-202006

LT.GRAY,TRIM2#

main62432-0G010-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-60020iGRJ150,TRJ150201005-202006

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10161iGRJ150,TRJ150201005-202006

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10188iGRJ152,TRJ152201005-202006

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-0G010-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62510-0G020

main62510-0G010-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62510-0G020

main62510-0G010-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62510-0G020

main62510-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62510-0G020-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62510-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-0G010-A1iGRJ150201005-201311

IVORY,TRIM0#

sub62520-0G020

main62520-0G010-A2iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub62520-0G020

main62520-0G010-B0iGRJ15#,TRJ15#201311-201511

LT.GRAY,TRIM2#

sub62520-0G020

main62520-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main62520-0G020-B0iGRJ152,TRJ152201512-202006

LT.GRAY,TRIM2#

main62520-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

62638BCLIP

main90467-10162iGRJ150201005-202006

63630QCLIP

main90467-10162iGRJ150201005-202006

67910PLATE ASSY, DOOR SCUFF, RH

main67910-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

sub67910-0G020

main67910-0G010-A1iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub67910-0G020

main67910-0G010-C0iGRJ15#,TRJ15#201311-201511

BLACK,TRIM2#

sub67910-0G020

main67910-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main67910-0G020-C0iGRJ152,TRJ152201512-202006

BLACK,TRIM2#

main67910-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67930-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

sub67930-0G030

main67930-0G010-A1iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub67930-0G030

main67930-0G010-C0iGRJ15#,TRJ15#201311-201511

BLACK,TRIM2#

sub67930-0G030

main67930-0G030-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main67930-0G030-C0iGRJ152,TRJ152201512-202006

BLACK,TRIM2#

main67930-0G030-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

67918DPLATE, REAR DOOR SCUFF, LH

main67940-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

sub67940-0G030

main67940-0G010-A1iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub67940-0G030

main67940-0G010-C0iGRJ15#,TRJ15#201311-201511

BLACK,TRIM2#

sub67940-0G030

main67940-0G030-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main67940-0G030-C0iGRJ152,TRJ152201512-202006

BLACK,TRIM2#

main67940-0G030-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

67920PLATE ASSY, DOOR SCUFF, LH

main67920-0G010-A0iGRJ150201005-201311

IVORY,TRIM0#

sub67920-0G020

main67920-0G010-A1iGRJ15#,TRJ15#201311-201511

FLAXEN,TRIM0#

sub67920-0G020

main67920-0G010-C0iGRJ15#,TRJ15#201311-201511

BLACK,TRIM2#

sub67920-0G020

main67920-0G020-A0iGRJ152,TRJ152201512-201711

FLAXEN,TRIM0#

main67920-0G020-C0iGRJ152201512-202006

BLACK,TRIM2#

main67920-0G020-E0iGRJ152201711-202006

NEUTRAL BEIGE,TRIM4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030iGRJ152201005-202006

7152

8271160780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60780

90119C0321

main90119-C0321

37 parts on this diagram · 5 diagrams in section
