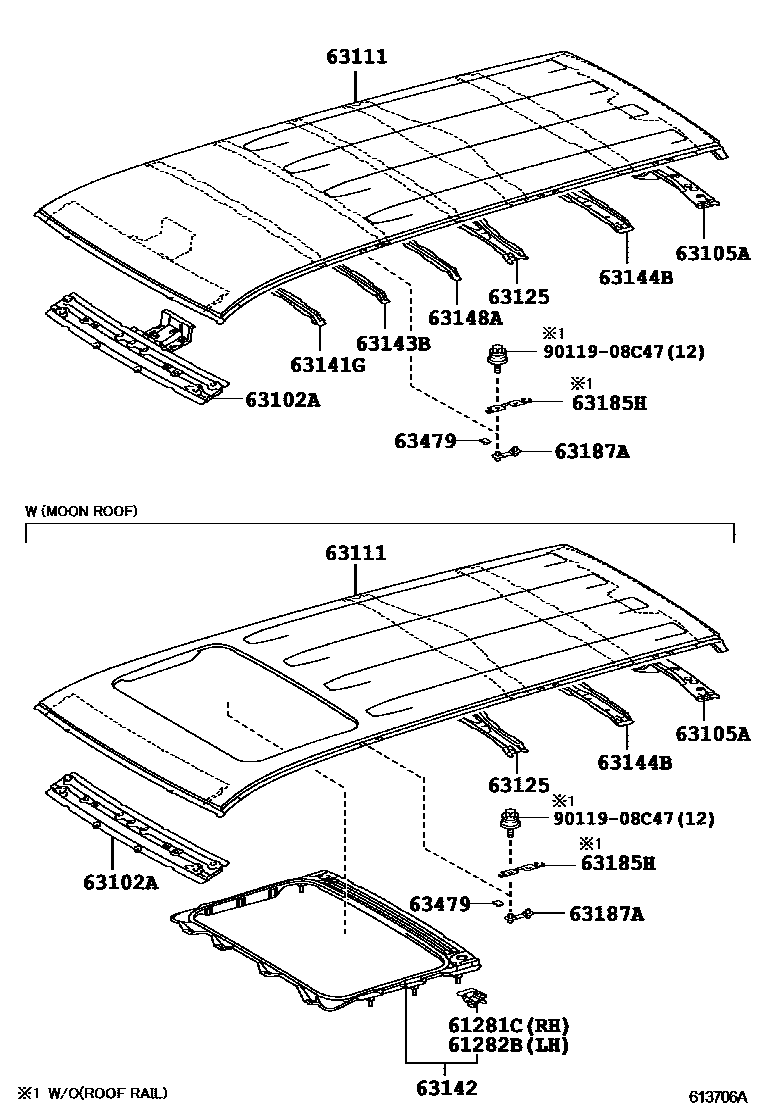

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

61281CBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-60050iGRJ150..VX201005-201311

TX-L PACKAGE

61282BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 LH

main61282-60010iGRJ150..TX201311-201509

TX-L PACKAGE

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0G020supersedes 63102-0G010iTRJ152;GRJ152..VX201311-201711

TX-L PACKAGE

main63102-60140supersedes 63102-60130iGRJ150..VX201005-201311

TX-L PACKAGE

sub63102-60141

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0G010iGRJ152201711-202006

main63105-60300iGRJ150201005-201311

63111PANEL, ROOF

main63111-60630supersedes 63111-60620iGRJ150..TX201311-201509

TX-L PACKAGE

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-0G010iGRJ152201711-202006

main63125-60070iGRJ150201005-201311

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60110iGRJ150..TX201005-201311

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60070iGRJ150..VX201005-201311

TX-L PACKAGE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-60070iGRJ150..TX201005-201311

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-0G010iGRJ150,TRJ150201311-201509

main63144-60070iGRJ150201005-201311

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-60010iGRJ150..TX201005-201311

63185HBRACKET, ROOF RACK

main63185-0G010×6iGRJ150,TRJ150..TX201311-201509

main63185-42020×6iGRJ150..TX201005-201212

63187ABRACKET, ROOF RACK, REAR

main63187-0G010×6iGRJ152201711-202006

main63187-35020×6iGRJ150201005-201212

63479RETAINER, ROOF INNER RACK

main63479-60020×6iGRJ150201005-201311

9011908C47

main90119-08C47

15 parts on this diagram · 3 diagrams in section
