Toyota LAND CRUISER PRADO — FLOOR INSULATOR

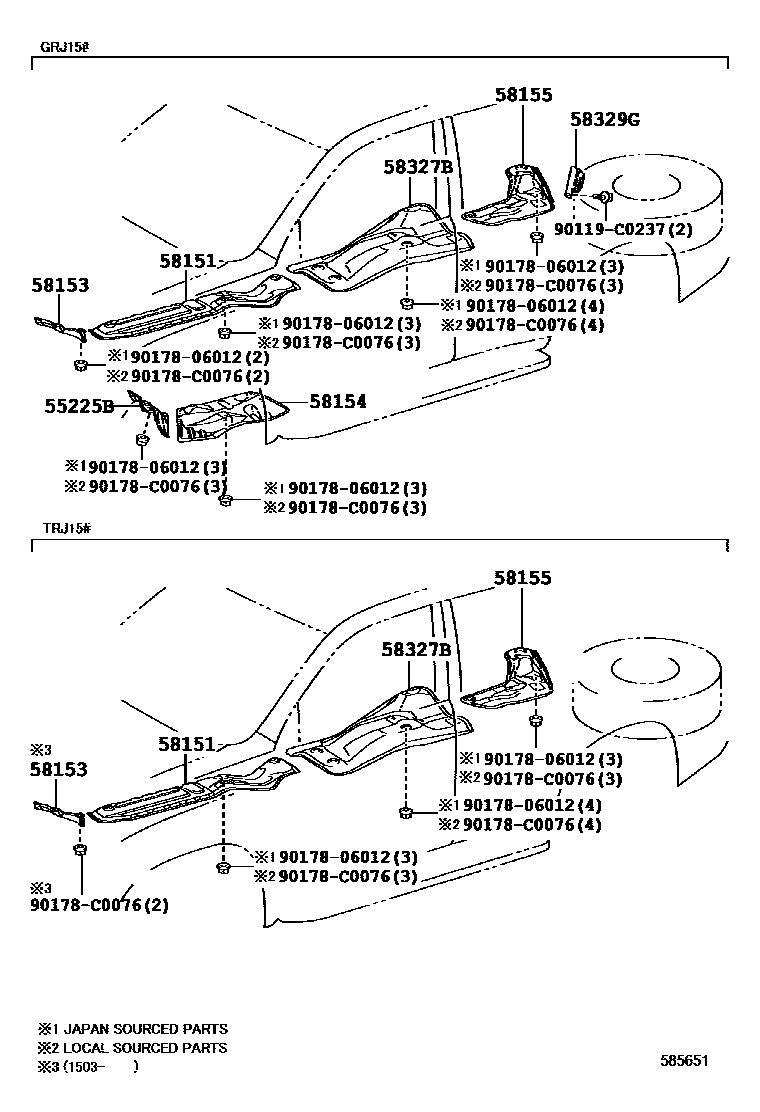

Parts diagram

55225BINSULATOR, DASH PANEL HEAT

58151INSULATOR, FRONT FLOOR HEAT, NO.1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

58154INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER

58155INSULATOR, FRONT FLOOR HEAT, NO.3

58327BINSULATOR, MAIN MUFFLER HEAT

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

90119C0237

9017806012

90178C0076

10 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota LAND CRUISER PRADO

This section contains 10 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota LAND CRUISER PRADO. Key components include: INSULATOR, DASH PANEL HEAT, INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER, INSULATOR, FRONT FLOOR HEAT, NO.3.
