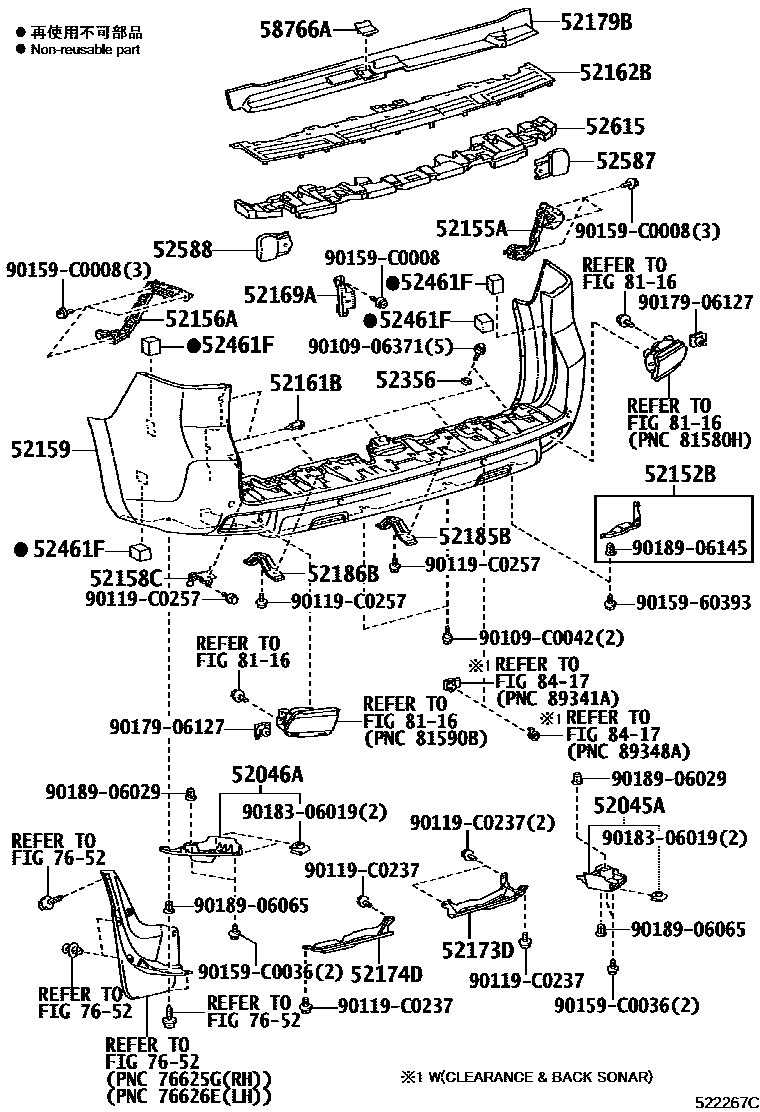

REAR BUMPER & BUMPER STAY
52045APROTECTOR SUB-ASSY, REAR BUMPER, RH
52046APROTECTOR SUB-ASSY, REAR BUMPER, LH
52152BEXTENSION, REAR BUMPER, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.,TX-L PACKAGE
PAINT REQ.,TX-L PACKAGE
TX-L NAVI PACKAGE&AUDIO-AVN & JBL & 14SPEAKER
52162BPLATE, REAR BUMPER, NO.1
52169ASUPPORT, REAR BUMPER SIDE, NO.3
52173DREINFORCEMENT, REAR BUMPER BAR, RH
52174DREINFORCEMENT, REAR BUMPER BAR, LH
52179BPLATE, REAR BUMPER BAR
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52356CUSHION, REAR BUMPER STEP
52461FPAD, REAR BUMPER
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
58766ACOVER, JACK BOX HOLE
7652
8116
8417
9010906371
main90109-06371
90109C0042
main90109-C0042
90119C0237
main90119-C0237
90119C0257
main90119-C0257
9015960393
main90159-60393
90159C0008
main90159-C0008
90159C0036
main90159-C0036
9017906127
main90179-06127
9018306019
main90183-06019
9018906029
main90189-06029
9018906065
main90189-06065
9018906145
main90189-06145
36 parts on this diagram · 2 diagrams in section
