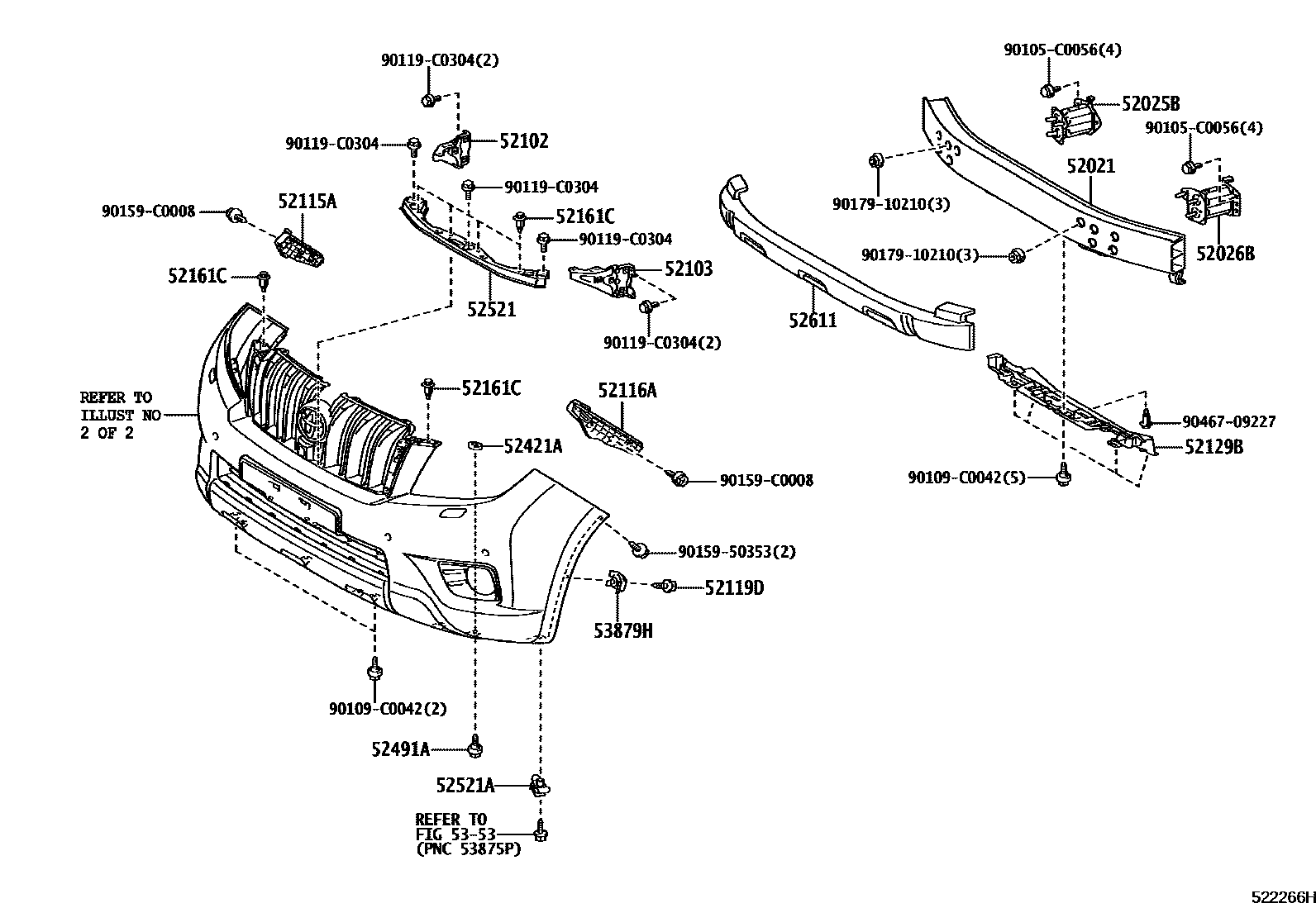

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0G010iGRJ152201711-202006

main52021-0G021iGRJ152,TRJ152201509-201711

main52021-60160iGRJ150201005-201311

sub52021-60200

main52021-60230iGRJ150,TRJ150201311-201509

sub52021-60231

52025BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH

main52025-60040iGRJ150201005-201311

main52025-60050iGRJ150,TRJ150201311-201509

52026BEXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH

main52026-60040iGRJ150201005-201311

main52026-60050iGRJ150,TRJ150201311-201509

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

main52102-0G010iGRJ150201005-201311

main52102-0G020iGRJ150,TRJ150201311-201509

main52102-0G031iGRJ152201711-202006

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

main52103-0G010iGRJ150201005-201311

main52103-0G020iGRJ150,TRJ150201311-201509

main52103-0G031iGRJ152201711-202006

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0G010iGRJ150201005-201311

main52115-0G020iGRJ150,TRJ150201311-201509

main52115-0G030iGRJ152201711-202006

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0G010iGRJ150201005-201311

main52116-0G020iGRJ150,TRJ150201311-201509

main52116-0G030iGRJ152201711-202006

52119DSCREW, NO.1

main90159-C0036×2iGRJ152201711-202006

52129BCOVER, FRONT BUMPER, LOWER

main52129-0G010iGRJ150201005-201311

main52129-0G030iGRJ150,TRJ150201311-201509

main52129-0G040iGRJ152201711-202006

52161CPIECE, FRONT BUMPER

main52161-02040×4iGRJ152201805-202006

main52161-16010×6iGRJ150201005-201311

sub52161-0K040

52421APAD, FRONT BUMPER

main52421-0G010×2iGRJ152,TRJ152201311-201711

main52421-60191×2iGRJ150201005-201311

52491ABOLT, BUMPER PAD

main52491-60010×2iGRJ15#,TRJ15#201311-201711

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52506-0G010iGRJ152201711-202006

main52521-0G010iGRJ150201005-201311

main52521-0G020iGRJ152,TRJ152201311-201711

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05138×2iGRJ150201005-201311

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0G010iGRJ150201005-201311

main52611-0G020iGRJ152,TRJ152201311-201711

5353

53879HRETAINER, FRONT FENDER LINER

main53879-0G010×2iGRJ150201005-201311

90105C0056

main90105-C0056

90109C0042

main90109-C0042

90119C0304

main90119-C0304

9015950353

main90159-50353

90159C0008

main90159-C0008

9017910210

main90179-10210

9046709227

main90467-09227

24 parts on this diagram · 6 diagrams in section
