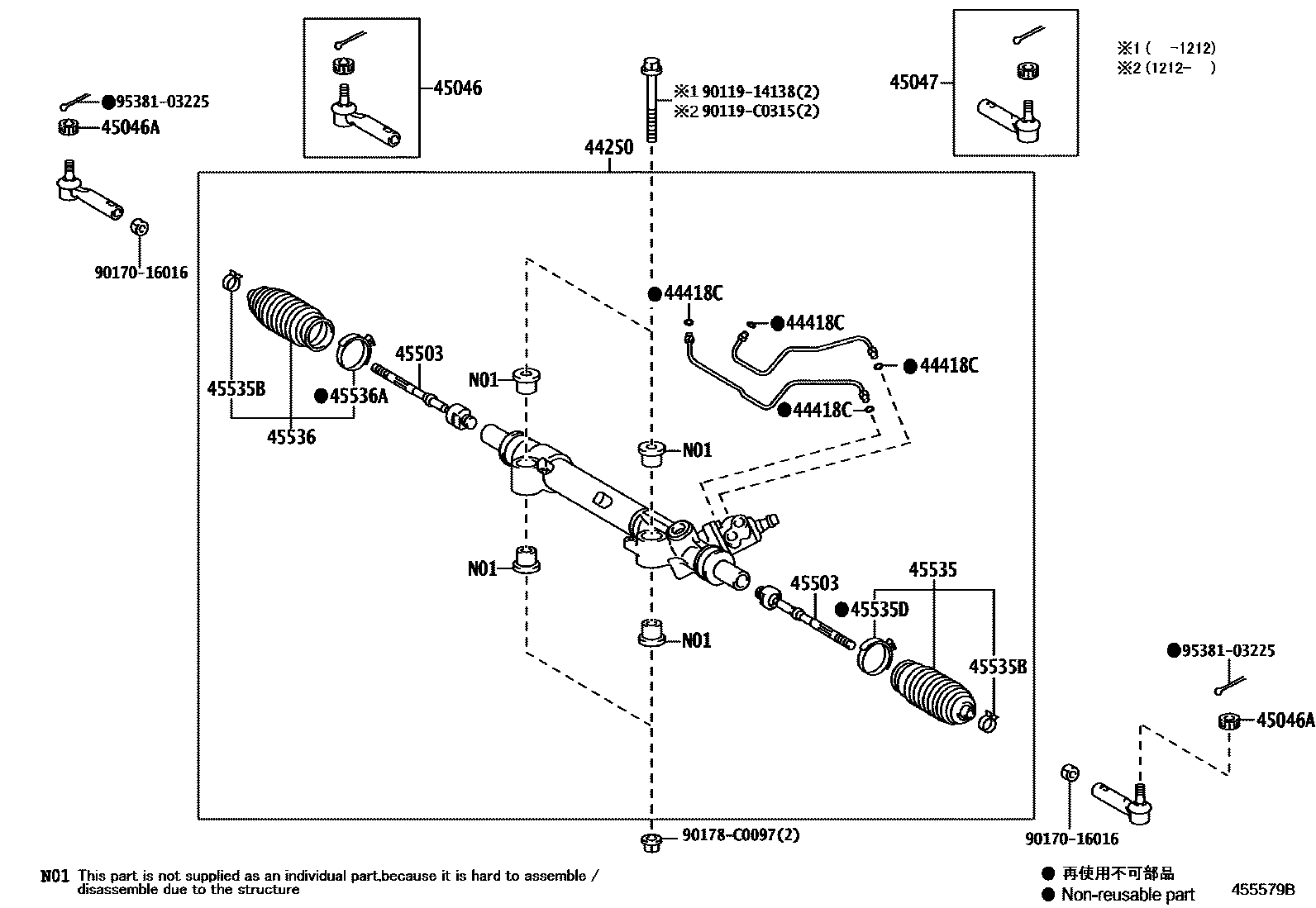

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0G020iGRJ150201005-201311

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-03001×4iGRJ150201005-201311

45046END SUB-ASSY, TIE ROD, RH

main45046-69245iGRJ150201005-201311

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGRJ150201005-201212

main90171-C0004×2iGRJ150201212-201311

45047END SUB-ASSY, TIE ROD, LH

main45046-69245iGRJ150201005-201311

45503END SUB-ASSY, STEERING RACK

main45503-60040×2iGRJ150201005-201311

45535BOOT, STEERING RACK, NO.1

main45535-69025iGRJ150201005-201311

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iGRJ150201005-201311

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60008iGRJ150201005-201311

45536BOOT, STEERING RACK, NO.2

main45535-69015iGRJ150201005-201311

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60008iGRJ150201005-201311

9011914138

main90119-14138

90119C0315

main90119-C0315

9017016016

main90170-16016

90178C0097

main90178-C0097

9538103225

main95381-03225

16 parts on this diagram · 1 diagram in section
