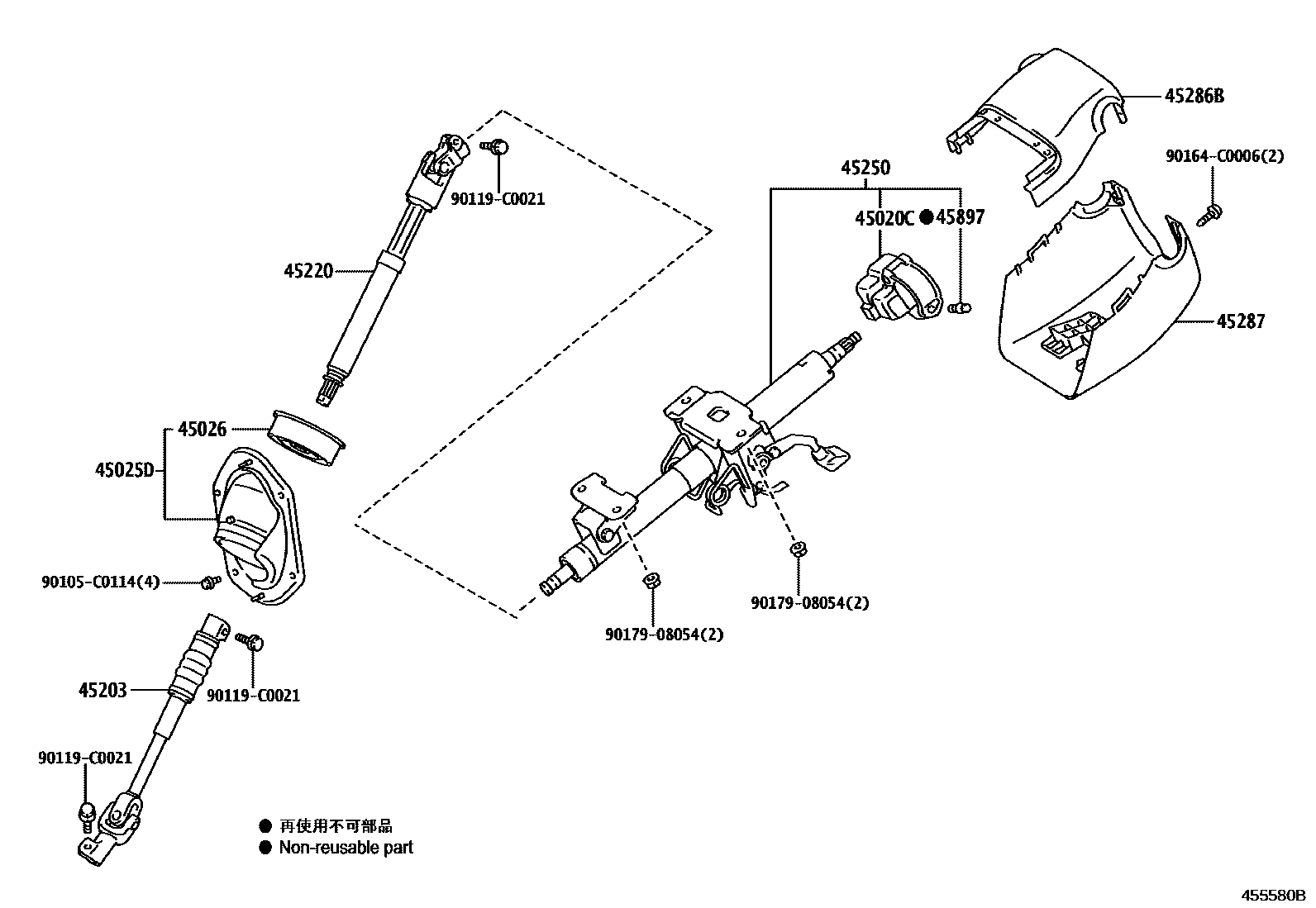

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D160iGRJ152..TX201711-202006

main45020-0G010iGRJ152..VX201902-202006

main45020-0N030iGRJ152..VX201601-201711

main45020-0N040iGRJ152,TRJ152..TX201601-201711

main45020-30A70iGRJ150..VX201005-201110

main45020-60830iGRJ152..VX201711-201901

main45020-68040iGRJ15#,TRJ15#..TX201311-201512

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0G010iGRJ150201005-201212

main45025-0G011iGRJ150201301-201311

main45025-0G012iGRJ152201807-202006

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60040iGRJ150201005-201212

main45026-60041iGRJ150201301-201311

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0G010iGRJ150201005-201310

main45203-0G011iGRJ150,TRJ150201311-201509

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0G010iGRJ152201711-202006

45250COLUMN ASSY, STEERING

main45250-0G010iGRJ150..TX201005-201201

main45250-0G011iGRJ150..TX201202-201311

main45250-0G020iGRJ152..TX201711-202006

main45250-60A90iGRJ150..VX201005-201109

main45250-60C40iGRJ150..VX201110-201111

sub89227-60080

sub93381-15008

45286BCOVER, STEERING COLUMN, UPR

main45286-0G010-C0iGRJ15#,TRJ15#..TX201311-201711

BLACK,TRIM2#

main45286-0G010-E0iGRJ150..TX201005-201311

DK. BROWN,TRIM0#

main45286-0G010-E1iGRJ15#,TRJ15#..TX201311-201711

ORCHID BROWN,TRIM0#

main45286-0G020-C0iGRJ15#..VX201311-201711

BLACK,TRIM2#

main45286-0G020-E0iGRJ150..VX201005-201311

DK. BROWN,TRIM0#

main45286-0G020-E1iGRJ15#..VX201311-201711

ORCHID BROWN,TRIM0#

main45286-0G040-C0iGRJ152..TX201711-202006

BLACK,TRIM2#

main45286-0G040-E0iGRJ152..TX201711-202006

ORCHID BROWN,TRIM4#

main45286-0G050-C0iGRJ152..VX201711-202006

BLACK,TRIM2#

main45286-0G050-E0iGRJ152..VX201711-202006

ORCHID BROWN,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-0G010-C0iGRJ15#,TRJ15#..TX201311-201711

BLACK,TRIM2#

main45287-0G010-E0iGRJ150..TX201005-201311

DK. BROWN,TRIM0#

main45287-0G010-E1iGRJ15#,TRJ15#..TX201311-201711

ORCHID BROWN,TRIM0#

main45287-0G020-C0iGRJ15#..VX201311-201711

BLACK,TRIM2#

main45287-0G020-E0iGRJ150..VX201005-201311

DK. BROWN,TRIM0#

main45287-0G020-E1iGRJ15#..VX201311-201711

ORCHID BROWN,TRIM0#

main45287-0G040-C0iGRJ152..TX201711-202006

BLACK,TRIM2#

main45287-0G040-E0iGRJ152..TX201711-202006

ORCHID BROWN,TRIM4#

main45287-0G050-C0iGRJ152..VX201711-202006

BLACK,TRIM2#

main45287-0G050-E0iGRJ152..VX201711-202006

ORCHID BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020iGRJ150..TX201005-201311

90105C0114

main90105-C0114

90119C0021

main90119-C0021

90164C0006

main90164-C0006

9017908054

main90179-08054

13 parts on this diagram · 3 diagrams in section
