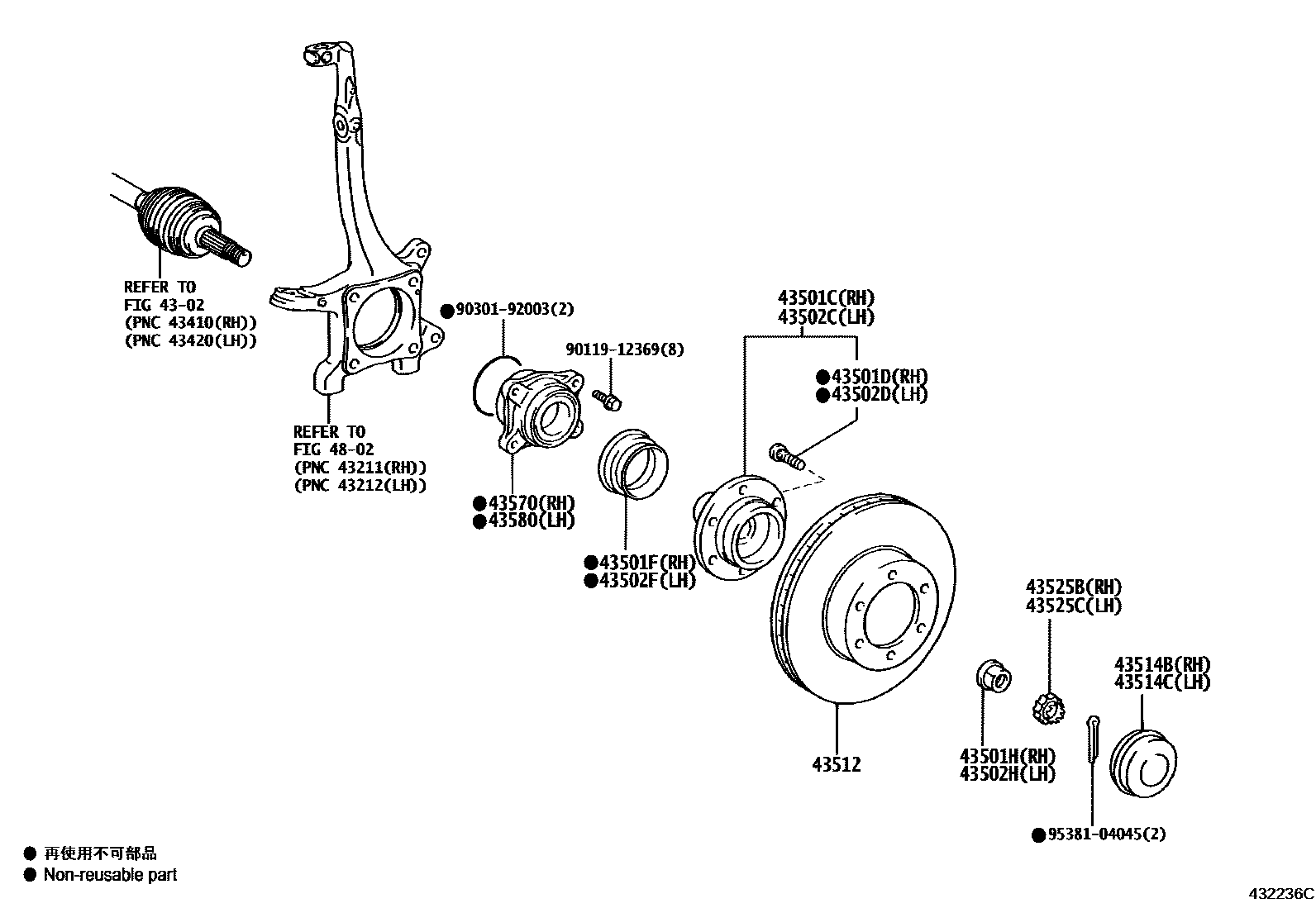

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-60200iGRJ150201005-201006

main43502-60201iGRJ150201007-201311

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iGRJ152,TRJ152201311-201711

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90312-96001iGRJ150201005-201311

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-28002iGRJ150201005-201212

main90178-C0079iGRJ152,TRJ152201311-201711

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-60200iGRJ150201005-201006

main43502-60201iGRJ150201007-201311

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iGRJ150201005-201311

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90312-96001iGRJ150201005-201311

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-28002iGRJ150201005-201212

main90178-C0079iGRJ152,TRJ152201311-201711

43512DISC, FRONT

main43512-60190iGRJ150201308-201309

main43512-60191×2iGRJ150201308-201311

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-0G010iGRJ150,TRJ150201311-201509

main43514-28010iGRJ150201005-201212

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-0G010iGRJ152201711-202006

main43514-28010iGRJ150201005-201212

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-35010iGRJ150,TRJ150201311-201509

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-35010iGRJ150201005-201311

43570BEARING ASSY, FRONT AXLE W/ABS ROTOR RH

main43570-60010iGRJ150201005-201108

main43570-60011iGRJ150201109-201311

43580BEARING ASSY, FRONT AXLE W/ABS ROTOR LH

main43570-60010iGRJ150201005-201108

main43570-60011iGRJ150201109-201311

4802

9011912369

main90119-12369

9030192003

main90301-92003

9538104045

main95381-04045

20 parts on this diagram · 1 diagram in section
