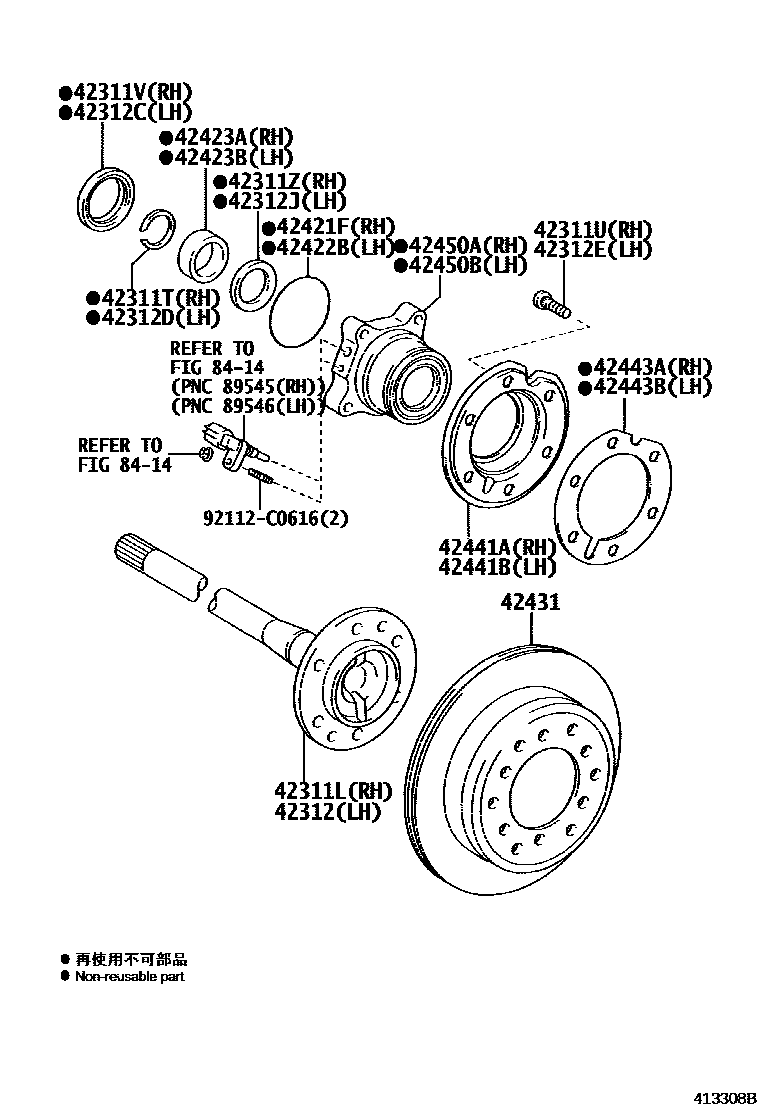

REAR AXLE SHAFT & HUB

42311LSHAFT, REAR AXLE, RH

main42311-60241iGRJ150201005-201112

main42311-60242iGRJ150201201-202006

42311TRING, SNAP(FOR REAR AXLE SHAFT RH)

main90520-41019iGRJ150201005-202006

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02079iGRJ150201005-202006

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90310-58003iGRJ150201005-201107

main90310-58004iGRJ150201107-202006

42311ZWASHER(FOR REAR AXLE SHAFT RH)

main90208-44001iGRJ150201005-202006

42312SHAFT, REAR AXLE, LH

main42311-60241iGRJ150201005-201112

main42311-60242iGRJ150201201-202006

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90310-58003iGRJ150201005-201107

main90310-58004iGRJ150201107-202006

42312DRING, SNAP(FOR REAR AXLE SHAFT LH)

main90520-41019iGRJ150201005-202006

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02079iGRJ150201005-202006

42312JWASHER(FOR REAR AXLE SHAFT LH)

main90208-44001iGRJ150201005-202006

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-83002iGRJ150201005-202006

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-83002iGRJ150201005-202006

42423ARETAINER, REAR AXLE BEARING, INNER RH

main42423-60050iGRJ150201005-202006

42423BRETAINER, REAR AXLE BEARING, INNER LH

main42423-60050iGRJ150201005-202006

42431DISC, REAR

main42431-60311iGRJ150201005-202006

42441ADEFLECTOR, BRAKE DRUM OIL RH

main42441-60060iGRJ150201005-202006

42441BDEFLECTOR, BRAKE DRUM OIL LH

main42441-60060iGRJ150201005-202006

42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH

main42443-60010iGRJ150201005-202006

42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH

main42443-60010iGRJ150201005-202006

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-60050iGRJ150201005-202006

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42460-60010iGRJ150201005-202006

8414ABS & VSC

→ Go to FIG 84-14

92112C0616

main92112-C0616

23 parts on this diagram · 1 diagram in section
