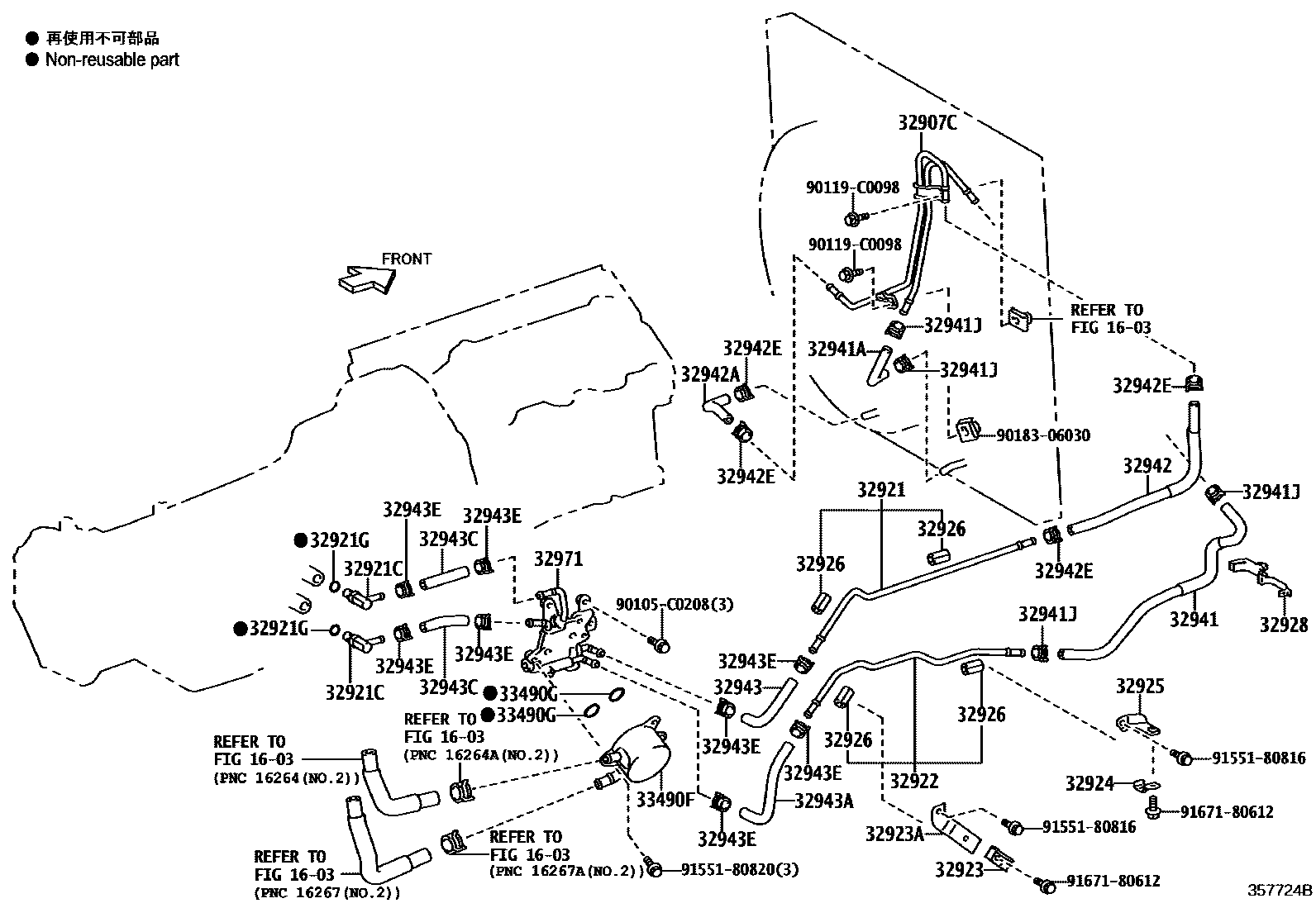

OIL COOLER & TUBE (ATM)

0001 1A750F 0002 1AC60F 0003 1A343F 0004 1AC60F

1603

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-0G010iGRJ150201005-201311

main32907-0G040iGRJ152201711-202006

main32907-60300iTRJ150..4FC201503-201509

sub32907-60301

32921TUBE, OIL COOLER INLET, NO.1

main32921-0G040iGRJ150201311-201509

main32921-0G050iGRJ152201509-201711

main32921-60240iTRJ150..4FC201503-201509

main32921-60500iTRJ152..6FC201509-201711

32921CUNION(FOR OIL COOLER TUBE)

main90407-14033×2iGRJ150201005-201311

main90407-16009iTRJ150..4FC201503-201509

NO.1

main90407-16012iTRJ150..4FC201503-201509

NO.2

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGRJ152201711-202006

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0G040iGRJ150201311-201509

main32922-0G050iGRJ152201509-201711

main32922-60260iTRJ150..4FC201503-201509

main32922-60530iTRJ152..6FC201509-201711

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32928-0G010iGRJ152201711-202006

main32928-60170iGRJ150201311-201509

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-0G010iGRJ152201509-201711

main32923-60140iGRJ150201005-201311

main32923-60190iTRJ152..6FC201509-201711

32924CLAMP, OIL COOLER TUBE, NO.2

main32929-24060iGRJ150201005-201311

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-0G010iGRJ152201509-201711

main32925-60200iGRJ150201005-201311

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×4iGRJ150201005-201311

L=35,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-0G020iGRJ152201509-201711

main32928-34030iGRJ150201311-201509

main32928-60100iTRJ150..4FC201503-201509

32941HOSE, OIL COOLER INLET, NO.1

main32941-0G010iGRJ150201005-201311

main32941-0G020iGRJ152201711-202006

main32941-60410iTRJ152..6FC201509-201711

main90445-17124iTRJ150..4FC201503-201509

32941AHOSE, OIL COOLER INLET, NO.2

main32943-0G030iGRJ152201509-201711

main90445-17074iGRJ150201311-201509

sub90445-17101

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iTRJ152..6FC201509-201711

(J)

main90466-C0024iGRJ152201509-201711

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0G010iGRJ150201005-201311

main32942-0G020iGRJ152201509-201711

main32942-60510iTRJ150..4FC201503-201509

main32942-60570iTRJ152..6FC201509-201711

32942AHOSE, OIL COOLER OUTLET, NO.2

main32943-0G010iGRJ150201005-201311

main32943-0G020iGRJ152201509-201711

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×4iGRJ150201005-201311

main90466-C0024iGRJ152201509-201711

(L)

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-35030iGRJ150201311-201509

main32943-60550iTRJ150..4FC201503-201509

main32943-60650iGRJ152201711-202006

main32943-60710iTRJ152..6FC201509-201711

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60560iTRJ150..4FC201503-201509

main32943-60590iGRJ150201005-201311

main32943-60670iGRJ152201509-201711

main32943-60720iTRJ152..6FC201509-201711

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-60570×2iGRJ150201005-201311

main32943-60660iGRJ152201509-201711

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iGRJ150,TRJ150..ATM201311-201509

main90466-C0024×4iGRJ152201711-202006

(L)

32971THERMOSTAT, TRANSMISSION OIL

main32971-60010iGRJ150201005-201311

main32971-60020iGRJ152201509-201711

33490FCOOLER ASSY, TRANSMISSION OIL

main33493-34030iGRJ150201311-201509

main33493-60020iGRJ152201509-201711

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iGRJ150201005-201311

90105C0208

main90105-C0208

90119C0098

main90119-C0098

9018306030

main90183-06030

9155180816

main91551-80816

9155180820

main91551-80820

9167180612

main91671-80612

31 parts on this diagram · 4 diagrams in section
