IGNITION COIL & SPARK PLUG / GLOW PLUG

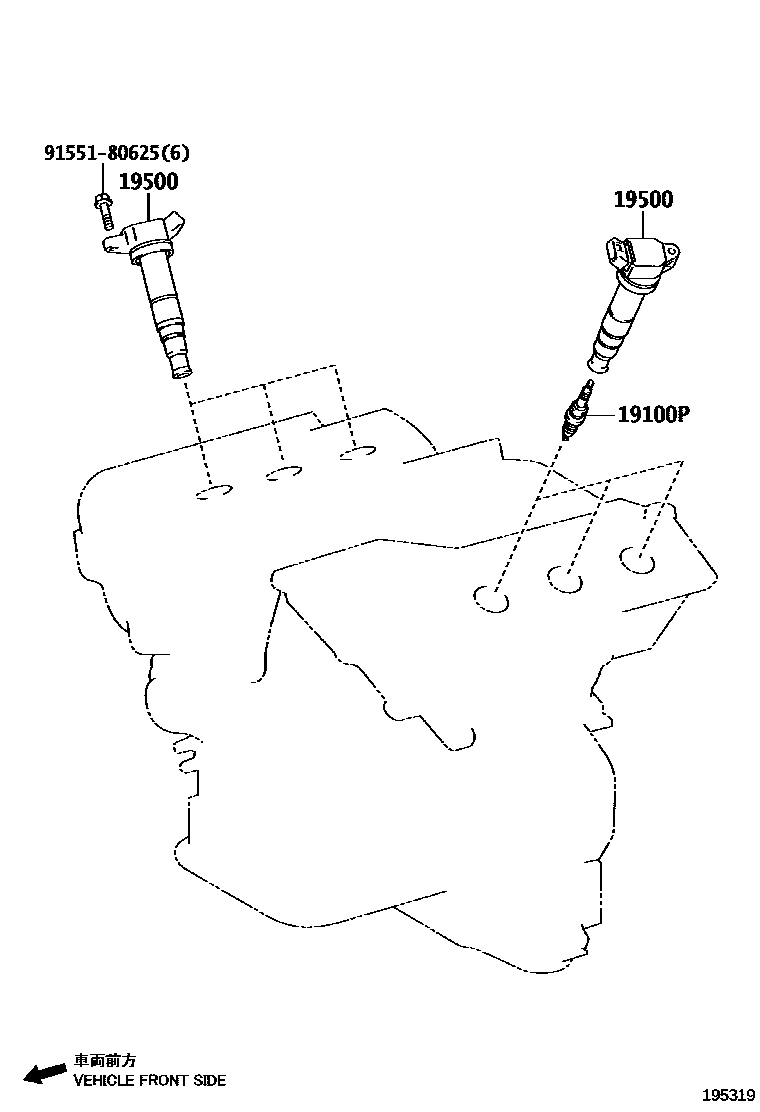

Parts diagram

19100PPLUG, SPARK

main90919-01191×6i201005-201306

SK20HR11

main90919-01233×6i201306-201311

SK16HR11

main90919-01263×6i201711-202006

FK20HBR8

main90919-01266×4i201503-201509

SK20HR-A11

main90919-01287×4i201509

FK20HR-A8

19500COIL ASSY, IGNITION

main90919-02256×6i201005-201311

main90919-02260×4i201503-201509

main90919-02273×6i201711-202006

9155180625

main91551-80625

3 parts on this diagram · 2 diagrams in section
