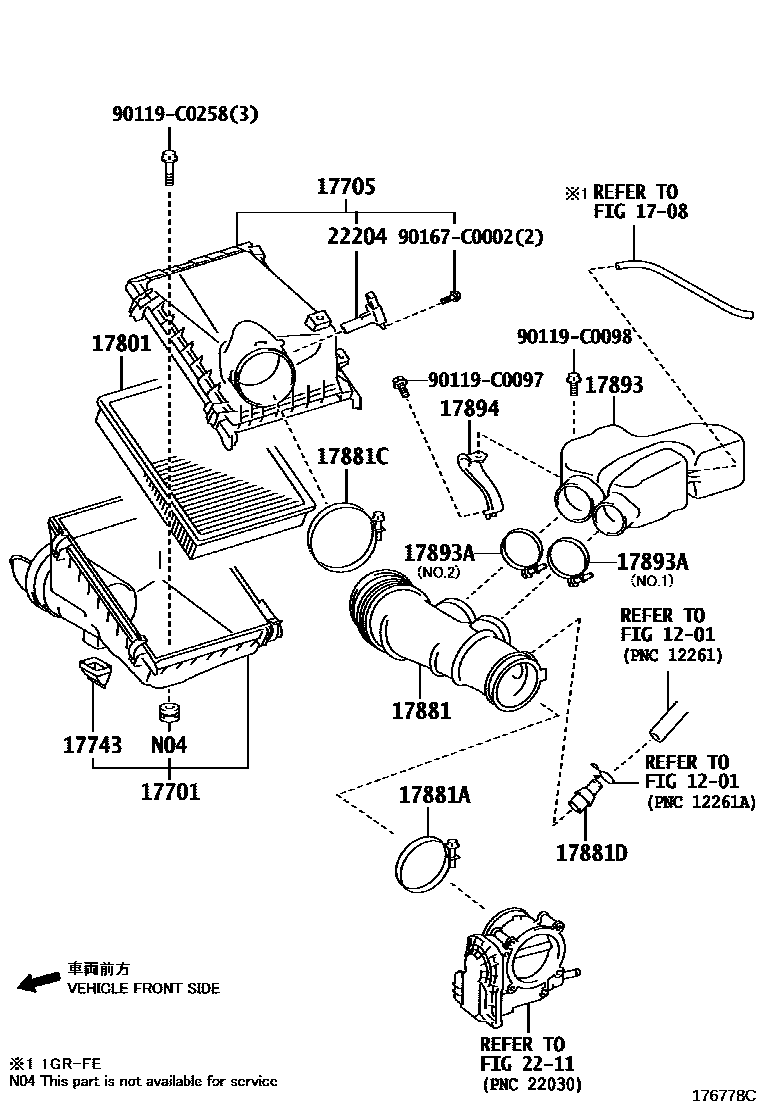

AIR CLEANER
1201
1708
17701CASE SUB-ASSY, AIR CLEANER
17743VALVE, DUST RELIEF
(L)
(J)
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
NO.1
NO.1
NO.2
17894BRACKET, RESONATOR
2211
90119C0097
main90119-C0097
90119C0098
main90119-C0098
90119C0258
main90119-C0258
90167C0002
main90167-C0002
19 parts on this diagram · 3 diagrams in section
