V-BELT

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

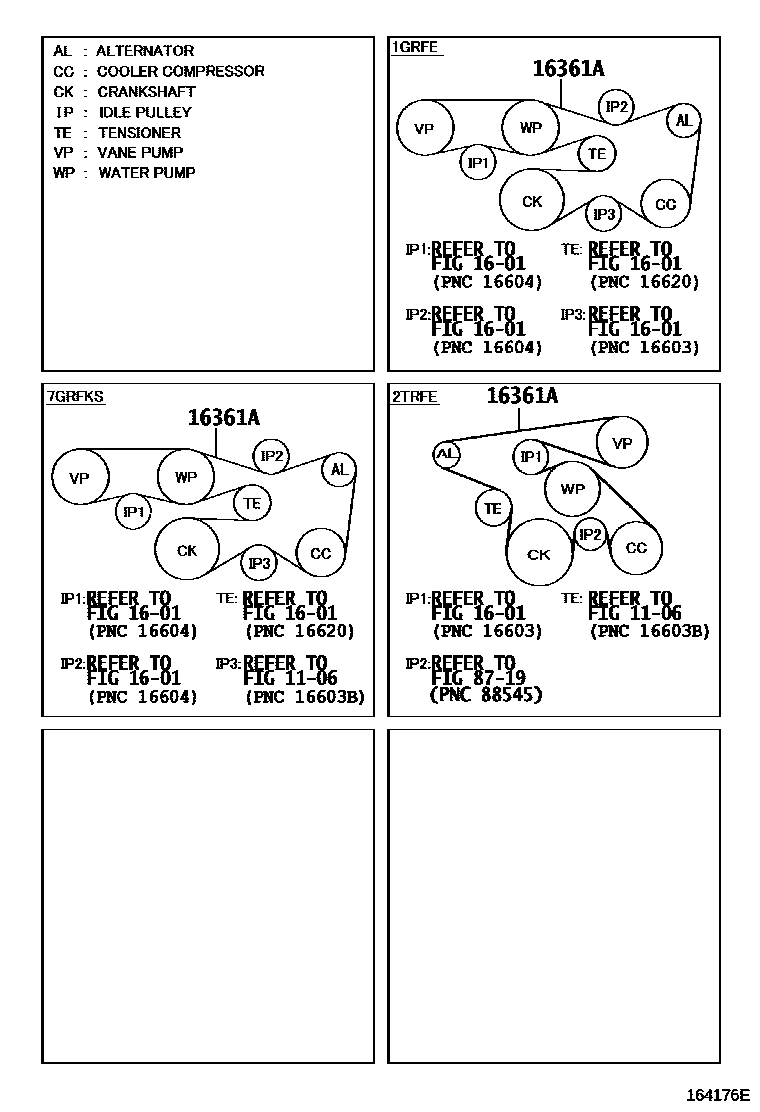

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02708i201503-201711

main90916-02768i201905-202006

main99367-H2150i201005-201311

main99367-K2120i201509-201711

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

4 parts on this diagram · 1 diagram in section
