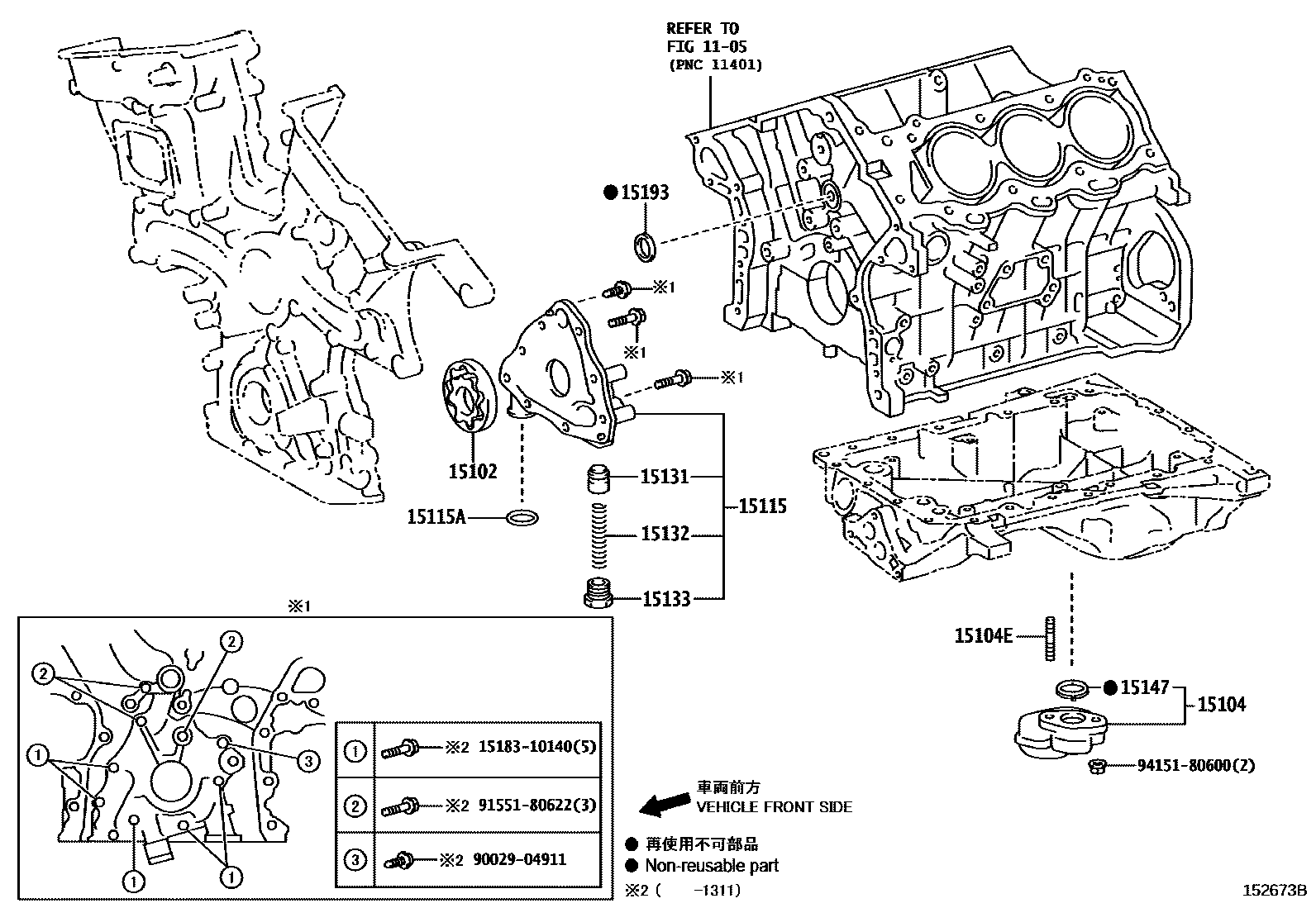

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105

15102ROTOR SET, OIL PUMP

main15103-31080i1GRFE..GRJ150201005-201311

15104STRAINER SUB-ASSY, OIL

main15104-31140i7GRFKS..GRJ152201711-202006

main15104-75210i2TRFE..TRJ152201509

sub15104-75211

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06029×2i1GRFE..GRJ150201005-201311

15115COVER, OIL PUMP

main15115-31080i1GRFE..GRJ150201005-201311

15115ARING, O(FOR OIL PUMP COVER)

main96722-24030i1GRFE..GRJ150201005-201311

15131VALVE, OIL PUMP RELIEF

main15131-17010i1GRFE..GRJ150201005-201311

main15131-31100i7GRFKS..GRJ152201509-201711

main15131-46040i2TRFE..TRJ15#201503

15132SPRING, OIL PUMP RELIEF VALVE

main15132-31100i7GRFKS..GRJ152201509-201711

main15132-46020i1GRFE..GRJ150201311-201509

15133PLUG, OIL PUMP RELIEF VALVE

main15133-28020i1GRFE..GRJ150201005-201311

main15133-31100i7GRFKS..GRJ152201711-202006

main15133-33040i2TRFE..TRJ15#201503

15147GASKET, OIL STRAINER

main15147-31070i1GRFE..GRJ150201311-201509

main15147-75040i2TRFE..TRJ15#201503

sub15147-75041

15193GASKET, OIL PUMP

main15193-38010i1GRFE..GRJ150201311-201509

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9002904911

main90029-04911

9155180622

main91551-80622

9415180600

main94151-80600

15 parts on this diagram · 3 diagrams in section
