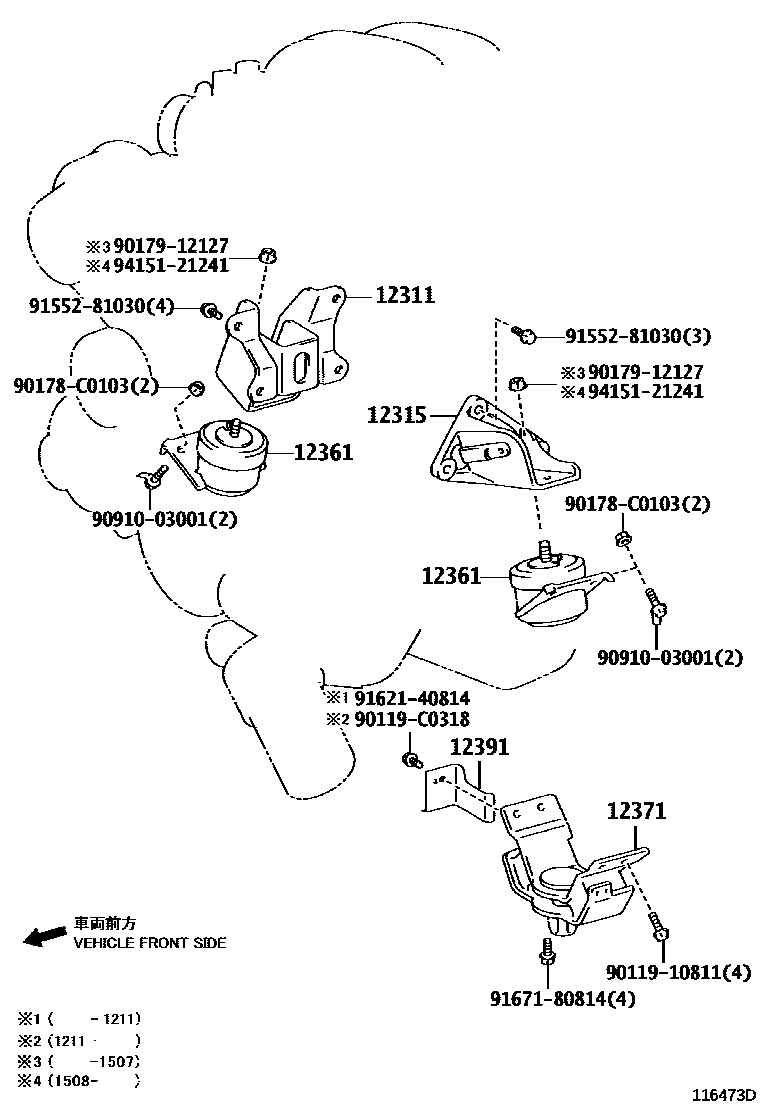

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31021i1GRFE..GRJ150201005-201509

main12311-31160i7GRFKS..GRJ152201509-202006

main12311-75090i2TRFE..TRJ150201503-201509

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31051i1GRFE..GRJ150201005-201509

main12315-31190i7GRFKS..GRJ152201509-201702

main12315-31191i7GRFKS..GRJ152201703-202006

main12315-75090i2TRFE..TRJ150201503-201509

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31290i1GRFE,7GRFKS..GRJ15#201005-202006

main12361-75071i2TRFE..TRJ152201503-201509

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0C260i2TRFE..TRJ152..6FC201509

main12371-0P140i1GRFE..GRJ150201005-201509

main12371-0P280i7GRFKS..GRJ152201509-202006

main12371-75160i2TRFE..TRJ152..5F201503-201509

main12371-75180i2TRFE..TRJ150..4FC201503-201509

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0P010i7GRFKS..GRJ152201509-202006

main12391-31020i1GRFE..GRJ150201005-201509

main12391-50070i2TRFE..TRJ150201503-201509

9011910811

main90119-10811

90119C0318

main90119-C0318

90178C0103

main90178-C0103

9017912127

main90179-12127

9091003001

main90910-03001

9155281030

main91552-81030

9162140814

main91621-40814

9167180814

main91671-80814

9415121241

main94151-21241

14 parts on this diagram · 5 diagrams in section
