ENGINE OVERHAUL GASKET KIT

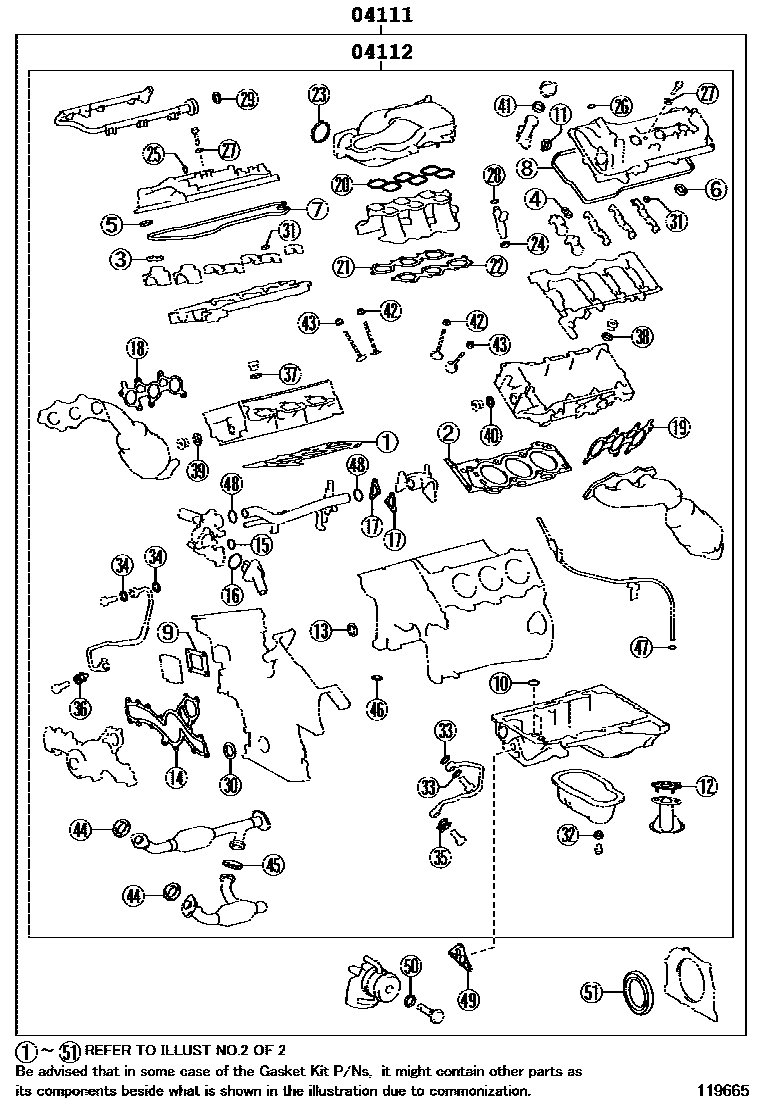

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31A21i201005-201012

main04111-31A22i201012-201103

main04111-31A23i201103-201110

main04111-31A24i201110-201208

main04111-31B50i201209-201311

main04111-31C10i201509-201706

main04111-31C11i201711-201806

main04111-31C12i201806-202006

main04111-75B50i201509-201701

main04111-75B51i201701

main04111-75C00i201503-201509

main04111-75C60i201509-201701

main04111-75C61i201701

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31580i201005-201012

main04112-31581i201012-201103

main04112-31700i201103-201108

main04112-31701i201108-201110

main04112-31702i201110-201208

main04112-31820i201209-201311

main04112-31870i201509-201706

main04112-31871i201706-201711

main04112-75684i201503-201509

main04112-75950i201509

2 parts on this diagram · 14 diagrams in section
