PARTIAL ENGINE ASSEMBLY

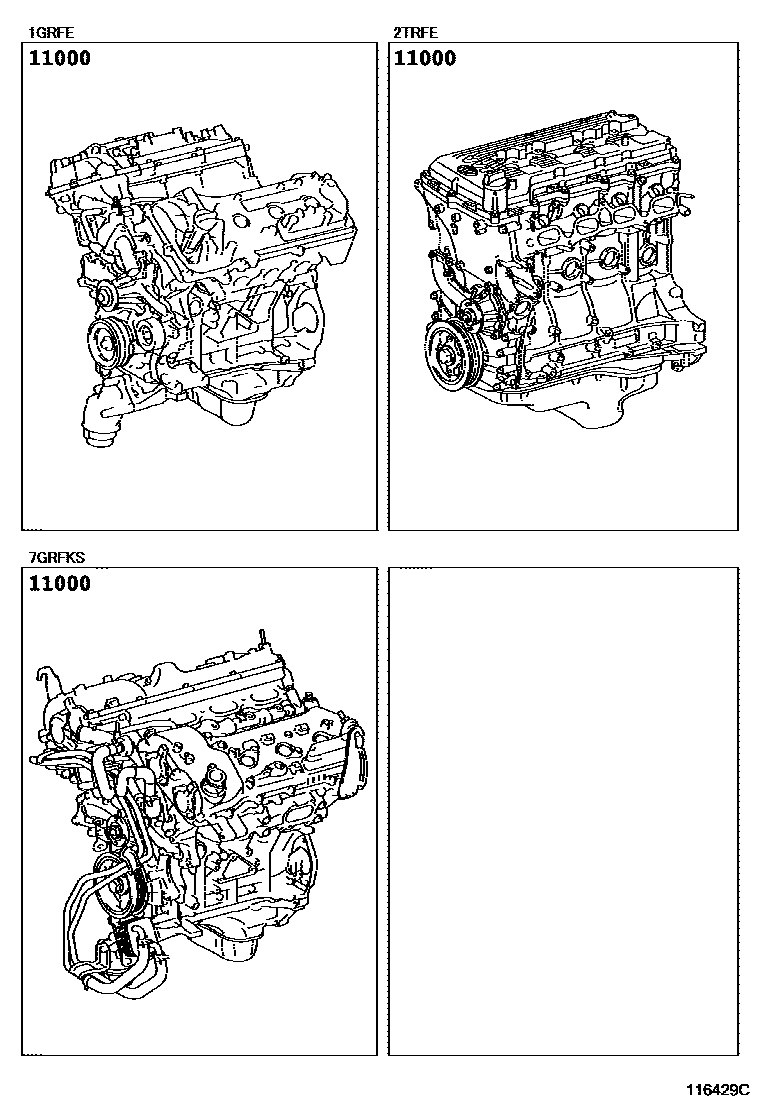

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-31L40i201005-201012

main19000-31L41i201012-201509

main19000-31P50i201509-201711

main19000-31S10i201711-202006

main19000-75G41i201503-201509

main19000-75M70i201509-201711

main19000-75M80i201509-201711

1 parts on this diagram · 1 diagram in section
