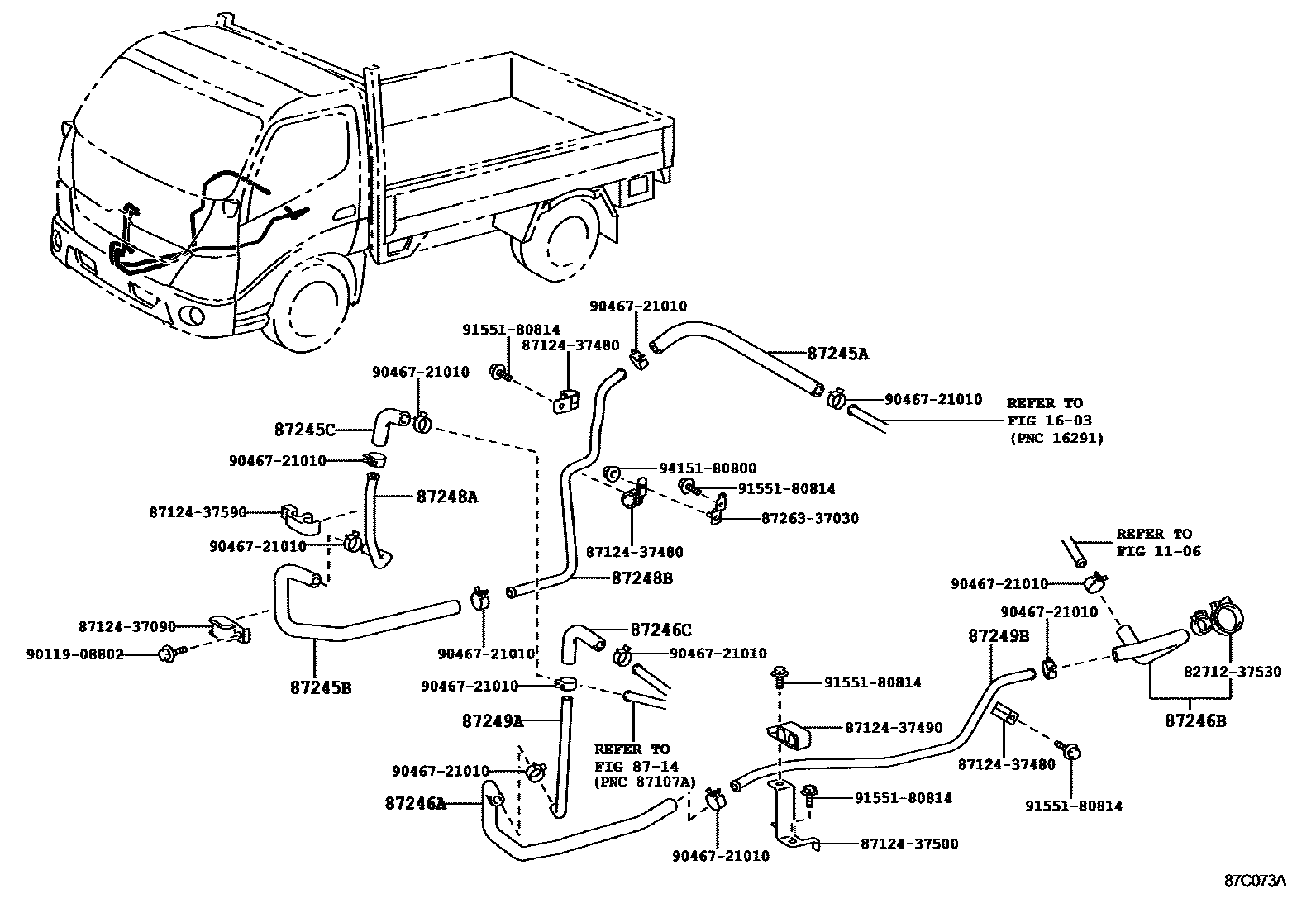

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-37A10iXZU710..DCB; XZU720..75T..CBU;XZU710,720..MTM..(65T,85T)201108-202003

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO)

main87245-37A11iXZU710,720..MTM..GCC; XZU710..DCB202004-202005

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO)

main87245-37C60iWU710,720..GCC201605-202005

main87245-37K51iXZU710,720..GEN201911

FRONT HEATER-WITHOUT & WITH(BOOST VENTILATOR)

87245BHOSE, HEATER WATER, INLET B

main87245-37F80iWU710,720..GCC;XZU720..75T..GCC..IV3201605-202005

main87245-37F30iWU710..RHD201107-202005

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main87245-37F90iXZU710..DCB201108-202005

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO)

87245CHOSE, HEATER WATER ,INLET C

main87245-37F10iXZU710,720,730..EUR201108-201512

87246AHOSE, HEATER WATER, OUTLET A

main87246-37870iXZU720..75T..CBU;XZU710,720..MTM..(65T,85T)201108-202005

main87246-37820iWU710..RHD201107-202005

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

main87246-37880iXZU710..DCB201108-202005

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO)

87246BHOSE, HEATER WATER, OUTLET B

main87246-37791iXZU710,720,730..EUR201109-201512

main87246-37792iXZU710,720..MTM..GCC; XZU710..DCB201911-202005

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO)

main87246-37890iWU710,720..GCC201605-202005

main87246-37790iXZU710..IV3201108-201109

AIR CONDITIONER-MANUAL & WITH(*POF & *RECO); AIR CONDITIONER-MANUAL & WITH(REAR COOLER)

87246CHOSE, HEATER WATER, OUTLET C

main87246-37810iXZU710,720,730..EUR201108-201512

87248APIPE, HEATER WATER INLET, A

main87248-37F30iXZU720..75T..CBU;XZU710,720..MTM..(65T,85T)201108-202005

main87248-37D70iWU710..RHD201107-202005

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

87248BPIPE, HEATER WATER INLET, B

main87248-37D90iXZU710,720,730..EUR201108-201512

main87248-37F10iWU710..65T..GCC201605-202005

main87248-37K20iWU710,720..LHD..75T..GEN; XZU710..MTM..GCC;WU710,720,XZU720..6F..GCC201911-202005

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

87249APIPE, HEATER WATER OUTLET, A

main87248-37F20iXZU710,720,730..EUR201108-201512

main87248-37D40iWU710..RHD201107-202005

FRONT HEATER-WITH & WITHOUT(WARM UP SWITCH)

87249BPIPE, HEATER WATER OUTLET, B

main87248-37F00iWU710,720..GCC201605-202005

main87248-37G80iXZU710..IV3201108-201109

main87248-37G81iXZU710,720,730..EUR201109-201512

8271237530CLAMP, WIRING HARNESS

main82712-37530

8712437090CLAMP, HEATER

main87124-37090

8712437480CLAMP, HEATER

main87124-37480

8712437490CLAMP, HEATER

main87124-37490

8712437500CLAMP, HEATER

main87124-37500

8712437590CLAMP, HEATER

main87124-37590

8726337030BRACKET, HEATER WATER PIPE, NO.1

main87263-37030

9011908802

main90119-08802

9046721010

main90467-21010

9155180814

main91551-80814

9415180800

main94151-80800

24 parts on this diagram · 7 diagrams in section
