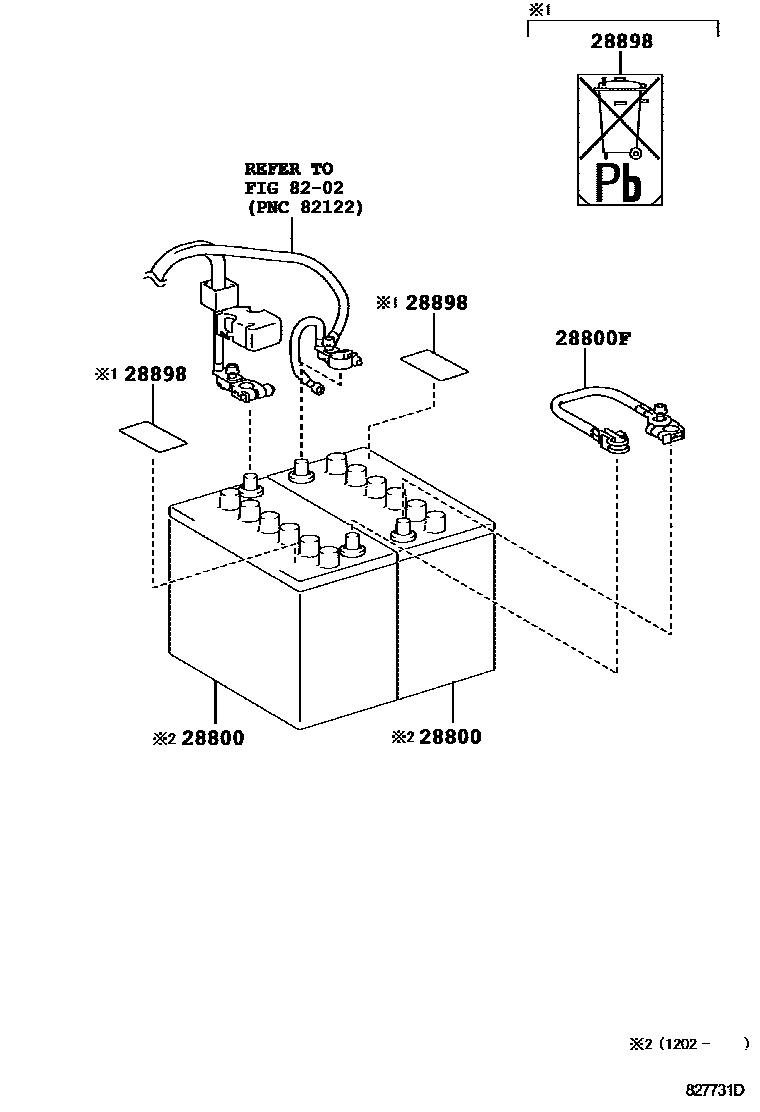

Toyota DYNA — BATTERY & BATTERY CABLE
28800BATTERY
28800FCABLE, BATTERY TO BATTERY
28898PLATE, BATTERY
8202WIRING & CLAMP
4 parts on this diagram · 2 diagrams in section
BATTERY & BATTERY CABLE for Toyota DYNA
This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota DYNA. Key components include: BATTERY, COVER, CONNECTOR(FOR BATTERY TERMINAL), CABLE, BATTERY TO BATTERY, TERMINAL, BATTERY NEGATIVE, TERMINAL, BATTERY POSITIVE.
