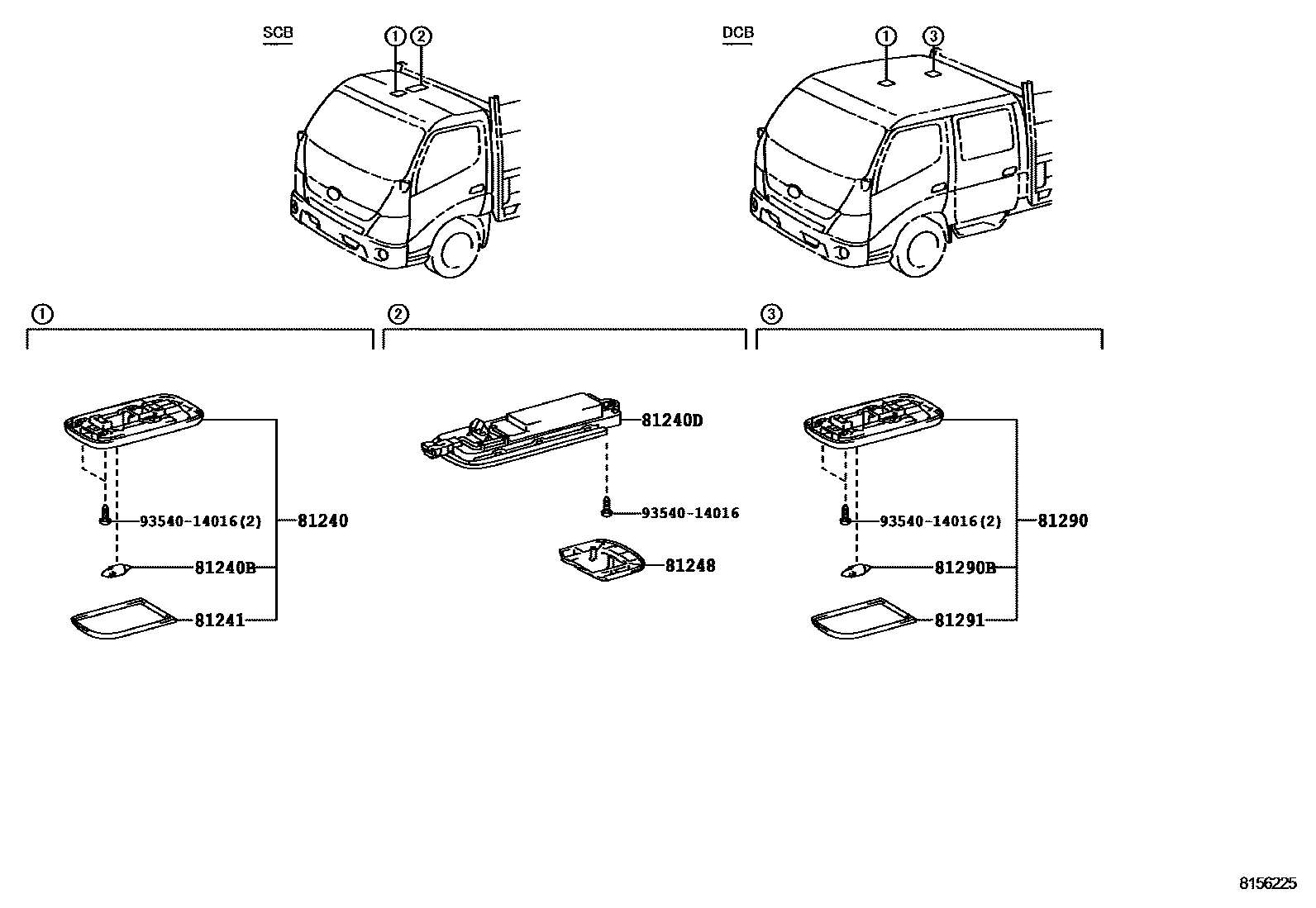

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-E0090iXZU710..CBU201107-201505

81240BBULB, ROOM LAMP, NO.1

mainSZ98032045iXZU710..CBU201107-201505

24V 10W

81240DLAMP ASSY, ROOM, NO.2

main81240-37090-B0iXZU710..CBU201107-201505

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

81241LENS, ROOM LAMP, NO.1

mainS812411140iXZU710..CBU201107-201505

81248COVER, ROOM LAMP, NO.1

main87834-37040-B0iXZU710..CBU201107-201505

ROOM LAMP-WITH(LED LAMP),GRAY,TRIM1#

81290LAMP ASSY, ROOM, NO.3

main81240-E0090iXZU710..DCB201108-202005

81290BBULB, ROOM LAMP, NO.3

mainSZ98032045iXZU710..DCB201108-202005

24V 10W

81291LENS, ROOM LAMP, NO.3(FOR REAR)

mainS812411140iXZU710..DCB201108-202005

9354014016

main93540-14016

9 parts on this diagram · 1 diagram in section
