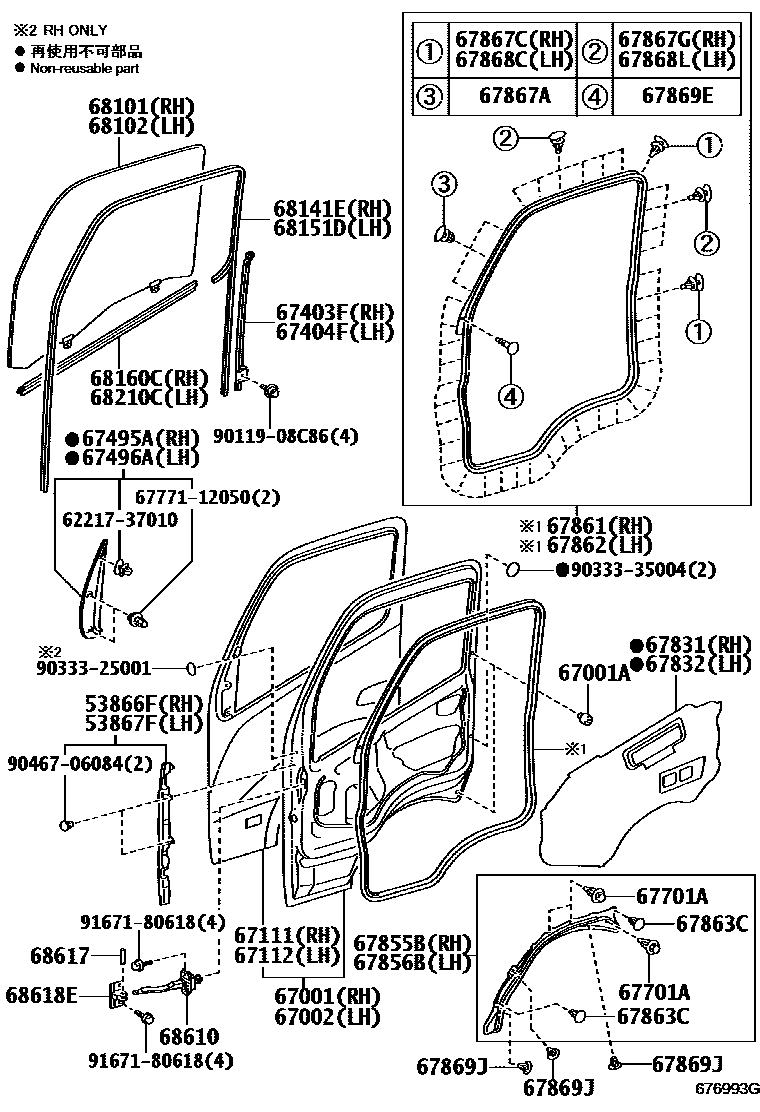

FRONT DOOR PANEL & GLASS
53866FSEAL, FRONT FENDER TO COWL SIDE, RH
53867FSEAL, FR FENDER TO COWL SIDE, LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
sub67001-37481
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
sub67001-37491
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
sub67001-37501
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
sub67002-37501
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
sub67002-37511
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
sub67002-37521
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
67111PANEL, FRONT DOOR, OUTER RH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
67112PANEL, FRONT DOOR, OUTER LH
OUTSIDE REAR VIEW MIRROR-CONVEX MIRROR, *LOS
OUTSIDE REAR VIEW MIRROR-DOOR MIRROR, *LOS, *MIH, *RCM
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67701ACLIP(FOR FRONT DOOR TRIM COVER)
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*UVCT,T=3.5,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*UVCT,T=3.5,GREEN
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68618EBRACKET, FRONT DOOR CHECK ARM
6221737010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-37010
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9011908C86
main90119-08C86
9033325001
main90333-25001
9033335004
main90333-35004
9046706084
main90467-06084
9167180618
main91671-80618
42 parts on this diagram · 2 diagrams in section
