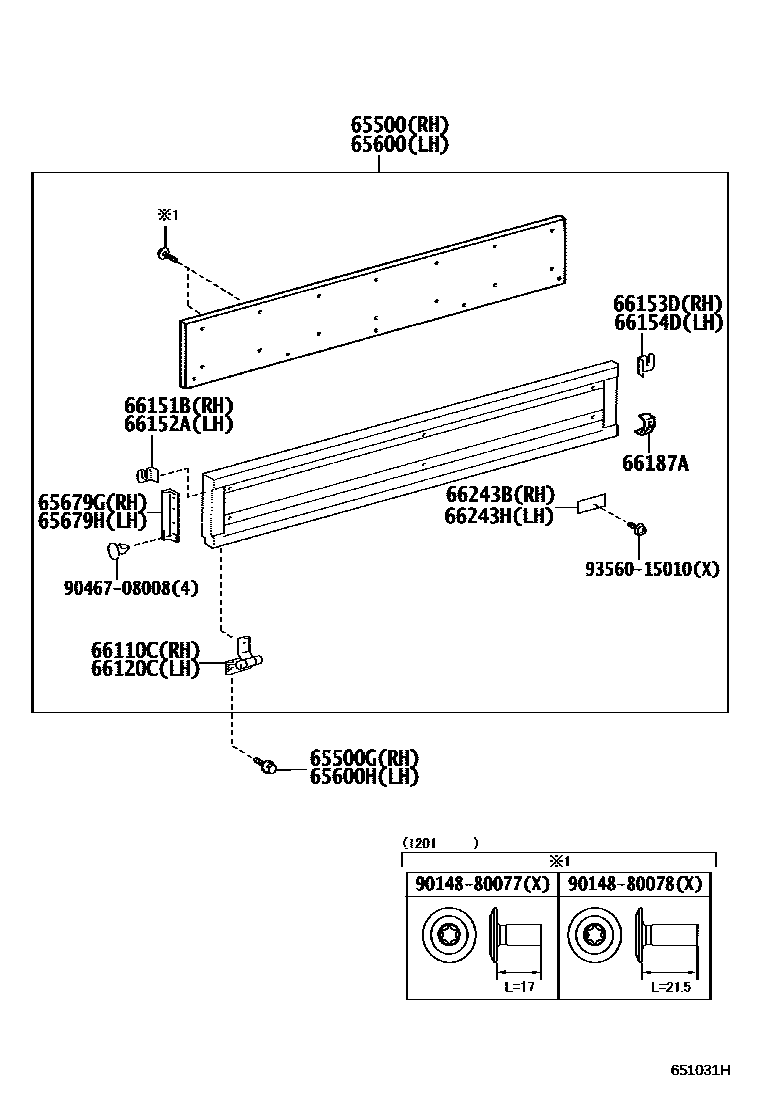

REAR BODY SIDE PANEL

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37J11iWU710,XZU710..CBU201107-201112

sub65500-37J12

main65500-37J12iXZU710..GEN..CBU201201-202103

main65500-37J21iWU720..CBU201107-201112

sub65500-37J22

main65500-37J22iWU720,XZU720..CBU201201-202005

main65500-37L50iXZU710..GEN..CBU202103-202310

main65500-37L51iXZU710..GEN..CBU202310

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main90119-08464iXZU710..CBU201107-201904

main91551-80820iWU710..CBU;XZU710..5F..GCC..CBU201905-202005

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37J90iXZU710..GEN..CBU202103-202310

main65600-37J91iXZU710..GEN..CBU202310

main65600-37K91iWU710,XZU710..CBU201107-201112

sub65600-37K92

main65600-37K92iWU710..CBU;XZU710..5F..GCC..CBU201201-202103

main65600-37L01iWU720..CBU201107-201112

sub65600-37L02

main65600-37L02iWU720,XZU720..CBU201201-202005

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main90119-08464iWU720,XZU720..CBU201107-201904

main91551-80820iWU710..CBU;XZU710..5F..GCC..CBU201905-202005

65679GSEAL, SIDE GATE

main65679-37011iXZU710..CBU201107-202005

65679HSEAL, SIDE GATE

main65679-37011iXZU710..CBU201107-202005

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37070iWU720..CBU201107-201112

sub65010-37071

main65010-37071iXZU710..CBU201201-202005

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37070iWU710,XZU710..CBU201107-201112

sub65010-37071

main65010-37071iXZU710..CBU201201-202005

66151BLATCH, SIDE GATE, FRONT RH

main66151-37030iXZU710..CBU201107-202005

66152ALATCH, SIDE GATE, FRONT LH

main66152-37030iXZU710..CBU201107-202005

66153DLATCH, SIDE GATE, REAR RH

main66153-37010iXZU710..CBU201107-202005

66154DLATCH, SIDE GATE, REAR LH

main66154-37010iXZU710..CBU201107-202005

66187ALATCH, SIDE GATE SUPPORT

main66187-25020iXZU710..GEN..CBU202310

RH

main66187-25030iXZU710..GEN..CBU202310

LH

main66187-37040iXZU710..5F..GCC..CBU;WU710,720,XZU720..CBU201107-202310

RH

main66187-37050iXZU710..GEN..CBU201107-202310

LH

66243BPROTECTOR, REAR BODY, NO.1

main66243-37060iWU710,720,XZU710..CBU201107-202005

66243HPROTECTOR, REAR BODY, NO.1

main66243-37060iWU710,720,XZU710..CBU201107-202005

9014880077

main90148-80077

9014880078

main90148-80078

9046708008

main90467-08008

9356015010

main93560-15010

19 parts on this diagram · 1 diagram in section
