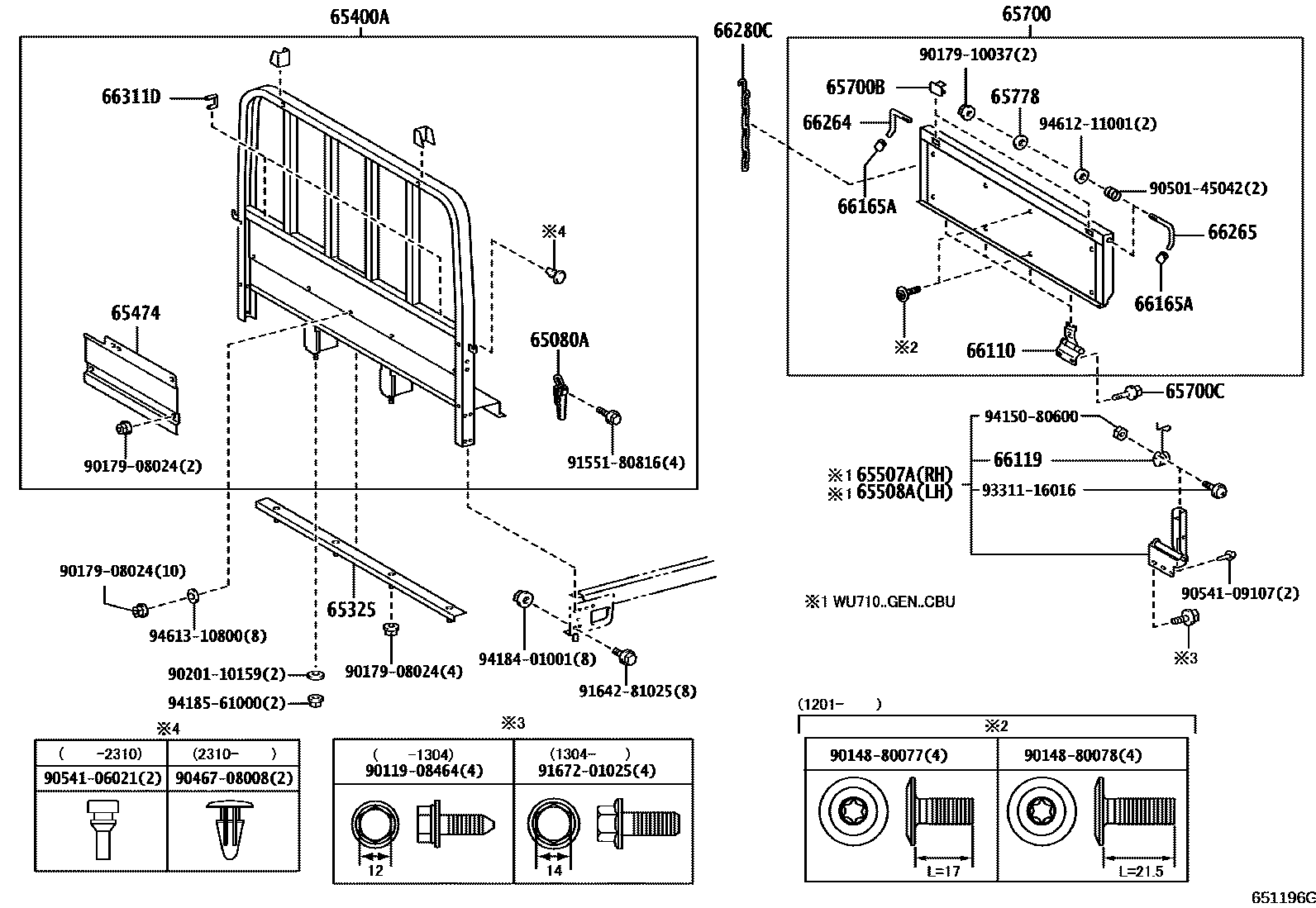

REAR BODY GUARD FRAME & TAIL GATE

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701×2iXZU710..CBU201107-201505

main65080-92702×2iXZU710..GEN..CBU202403

65325PLATE, FLOOR BOARD, FRONT

main65325-37050iXZU710..CBU201107-201505

main65325-37110iXZU710..5F..GCC..CBU;WU710,720,XZU720..CBU201905-202005

65400AGUARD ASSY, REAR BODY

main65400-37P80iXZU710..GEN..CBU201911-202103

main65400-37V40iXZU710..GEN..CBU202103-202309

main65400-37V41iXZU710..GEN..CBU202310

65474INSULATOR, HEADER

main65474-37150iXZU710..GEN..CBU201911

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-25011iXZU710..GEN..CBU202310

main65507-37050iWU710..GEN..CBU201107-201304

main65507-37051iWU710..GEN..CBU;XZU710,720..MTM..GCC..CBU201304-202005

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-25011iXZU710..GEN..CBU202310

main65508-37050iWU710..GEN..CBU201107-201304

main65508-37051iWU710..GEN..CBU;XZU710,720..MTM..GCC..CBU201304-202005

65700GATE ASSY, REAR BODY TAIL

main65700-37220iWU710,720,XZU710..CBU201107-201111

main65700-37221iXZU710..CBU201112-201505

main65700-37290iXZU710..GEN..CBU202103

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430×2iXZU710..CBU201107-201505

65700CBOLT, W/WASHER(FOR TAIL GATE)

main90119-08464×8iXZU710..CBU201107-201505

main91551-80820×8iXZU710..5F..GCC..CBU;WU710,720,XZU720..CBU201905-202005

65778STOPPER, TAIL GATE STAY

main65772-37010×2iXZU710..5F..GCC..CBU;WU710,720,XZU720..CBU201802-202005

66110HINGE ASSY, TAIL GATE

main66110-37020×4iWU710,720,XZU710..CBU201107-201111

main66110-37021×4iXZU710..CBU201112-201505

66119SPRING, TAIL GATE CHECK BALL

main72771-25011iXZU710..GEN..CBU202310

RH

main72772-25011iXZU710..GEN..CBU202310

LH

main90035-08023iXZU710..GEN..CBU201911-202310

LH

main90035-08024iWU710..GEN..CBU;XZU710,720..MTM..GCC..CBU201107-202005

RH

66165ACAP, GATE LATCH HANDLE

main66165-87402×2iXZU710..CBU201107-201505

66264HANDLE, TAIL GATE LATCH, RH

main66264-37010iXZU710..5F..GCC..CBU;WU710,720,XZU720..CBU201107-202005

66265HANDLE, TAIL GATE LATCH, LH

main66265-37010iXZU710..CBU201107-201505

66280CCHAIN ASSY, TAIL GATE

main66280-37020×2iWU710,720,XZU710..CBU201107-201403

main66280-37030×2iXZU710..CBU201404-201505

66311DHOOK, ROPE

main66312-37030×2iXZU710..CBU201107-201505

9011908464

main90119-08464

9014880077

main90148-80077

9014880078

main90148-80078

9017908024

main90179-08024

9017910037

main90179-10037

9020110159

main90201-10159

9046708008

main90467-08008

9050145042

main90501-45042

9054106021

main90541-06021

9054109107

main90541-09107

9155180816

main91551-80816

9164281025

main91642-81025

9167201025

main91672-01025

9331116016

main93311-16016

9415080600

main94150-80600

9418401001

main94184-01001

9418561000

main94185-61000

9461211001

main94612-11001

9461310800

main94613-10800

36 parts on this diagram · 1 diagram in section
