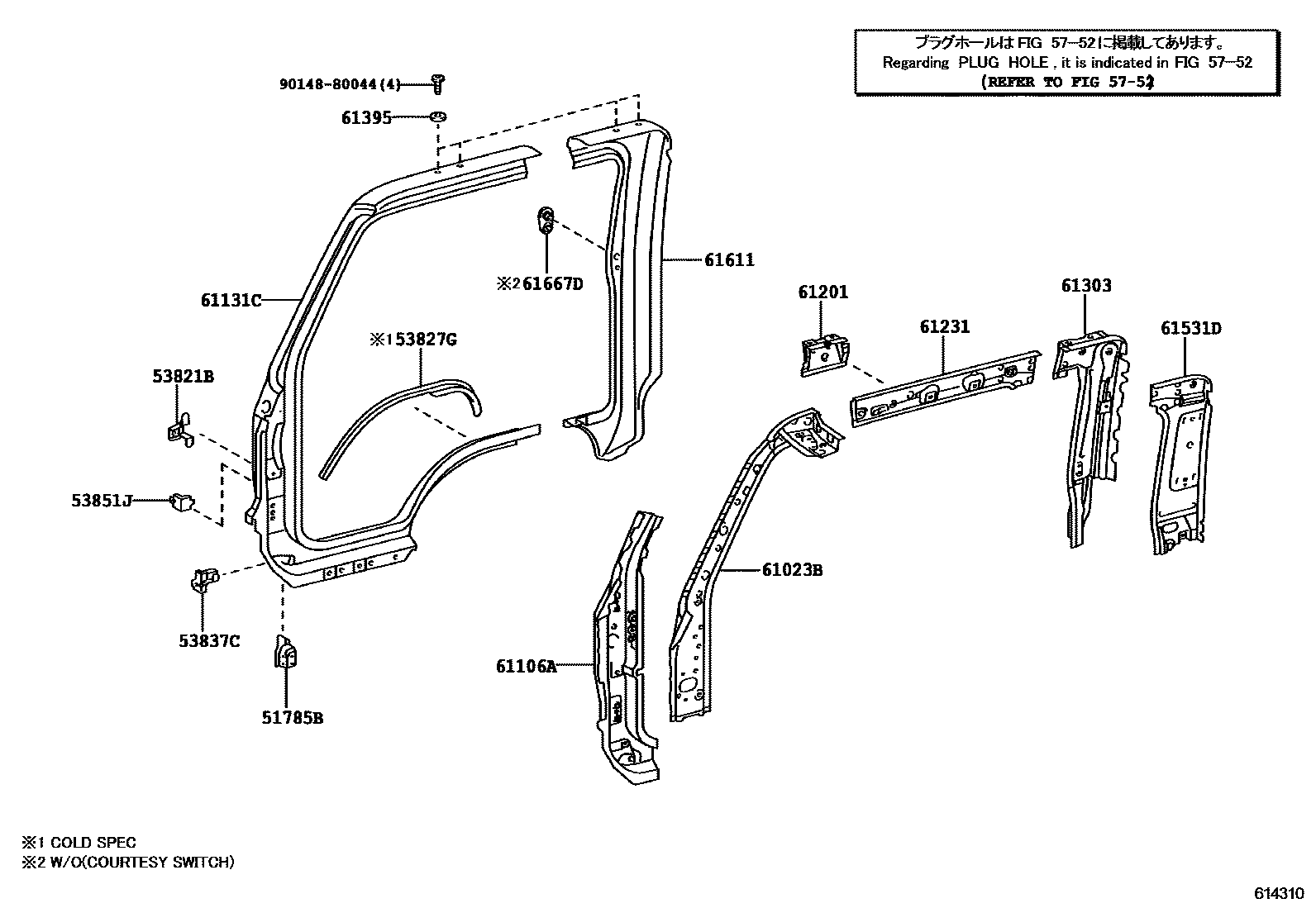

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH 0005 1RH 0006 1LH

51785BBRACKET, FRONT STEP PANEL, RH

main51785-37040iXZU710..GCC..IV3201107-201309

sub51785-37050

main51785-37050iWU700,710,720;XZU710,720..MTM..GCC201309-202005

53821BBRACKET, FRONT FENDER, REAR RH

main53821-37110iXZU710..CBU201107-202005

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-37040iXZU710..CBU201107-202005

53851JSTAY, FENDER, RH

main53851-37060iXZU710..CBU201107-202005

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37130iXZU710,720..GEN201107-202005

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-37010iWU700,710,720,XZU710,720,730201107-201408

sub61106-37011

main61106-37011iWU700,710,720;XZU710,720..MTM..GCC201409-202005

61131CPILLAR, FRONT BODY, OUTER RH

main61131-37140iWU710..RHD201107-202005

main61131-37160iXZU710..CBU201107-202005

main61131-37170iXZU710..DCB201108-202005

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-37030iXZU710..CBU201107-202005

61231RAIL, ROOF SIDE, INNER RH

main61231-37140iXZU710..CBU201107-202005

main61231-37150iXZU710..DCB201108-202005

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-37030iXZU710..DCB201108-201703

sub61303-37031

main61303-37031iXZU710..DCB201704-202005

main61303-37040iXZU710,720,730..EUR201107-201703

sub61303-37041

main61303-37041iWU710,720;XZU710,720..SCB..MTM..GCC201704-202005

61395SEAL, CENTER BODY PILLAR, RH

main61395-37010iXZU710,720..GEN201107-202005

61531DPANEL, CAB REAR PILLAR, INNER RH

main61531-37080iXZU710..CBU201107-201703

sub61531-37081

main61531-37081iWU710,720;XZU710,720..SCB..MTM..GCC201704-202005

61611PANEL, QUARTER, RH

main61611-37420iXZU710,720..GEN201107-202005

main61611-37430iXZU710..DCB201108-202005

61667DSEAL, QUARTER PANEL

main61667-37010iXZU710..CBU201107-202005

9014880044

main90148-80044

17 parts on this diagram · 6 diagrams in section
