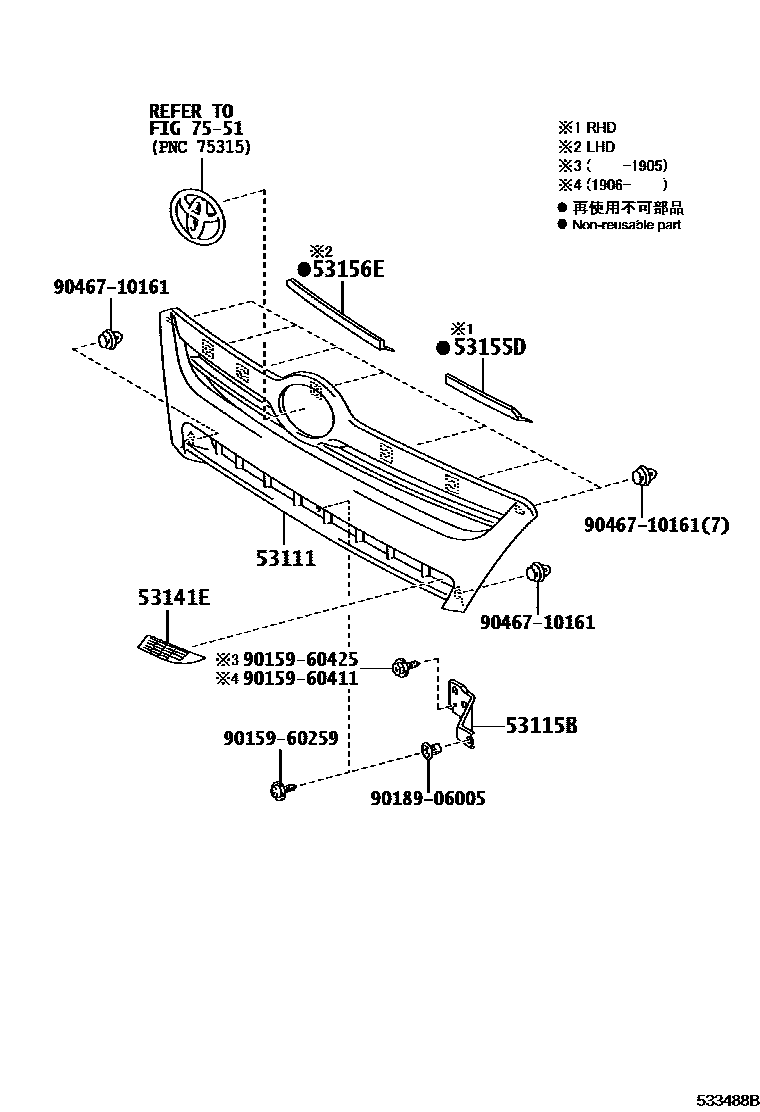

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53111-37A30-A0iXZU710,720,730..EUR201306-201512

WHITE,058

main53111-37A30-B1iXZU710,720,730..EUR201306-201512

SILVER ME.,199

main53111-37A30-H0iXZU710,720,730..EUR201306-201512

TURQUOISE,766

main53111-37A30-J1iXZU710,720,730..EUR201306-201512

BLUE,8P0

main53111-37B30-A0iXZU710,720..GEN201911

WHITE,058

main53111-37B30-B1iXZU710,720..GEN201911

SILVER ME.,199

main53111-37B30-H0iXZU710,720..GEN201911

TURQUOISE,766

main53111-37B30-J1iXZU710,720..GEN201911

BLUE,8P0

main53111-37A20iXZU710,720,730..EUR201306-201512

RADIATOR GRILLE-MATERIAL COLOR

main53111-37A40iWU700,710,720,XZU710,720..GCC,GEN201107-201310

RADIATOR GRILLE-PLATING

main53111-37A50supersedes 53111-37A20iXZU710..CBU201311-201505

RADIATOR GRILLE-PLATING

main53111-37B40iXZU710,720..GEN201911

PLATED,RADIATOR GRILLE-PLATING

53115BBRACKET, RADIATOR GRILLE

main53115-37090iWU700,710,720;XZU710,720..MTM..GCC201107-202005

main53115-37110iXZU710,720..GEN201911-202005

main53115-37121iXZU710,720..GEN202006

53141ECOVER, RADIATOR, NO.1

main53141-37080iXZU710,720,730..EUR201107-201512

main53141-37090supersedes 53141-37080iXZU710..CBU201107-201505

RADIATOR GRILLE-PLATING

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-37030iWU710..RHD201107-202005

53156ESEAL, RADIATOR GRILLE, NO.2

main53156-37010iXZU710..CBU201107-201505

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

9015960259

main90159-60259

9015960411

main90159-60411

9015960425

main90159-60425

9018906005

main90189-06005

9046710161

main90467-10161

11 parts on this diagram · 2 diagrams in section
