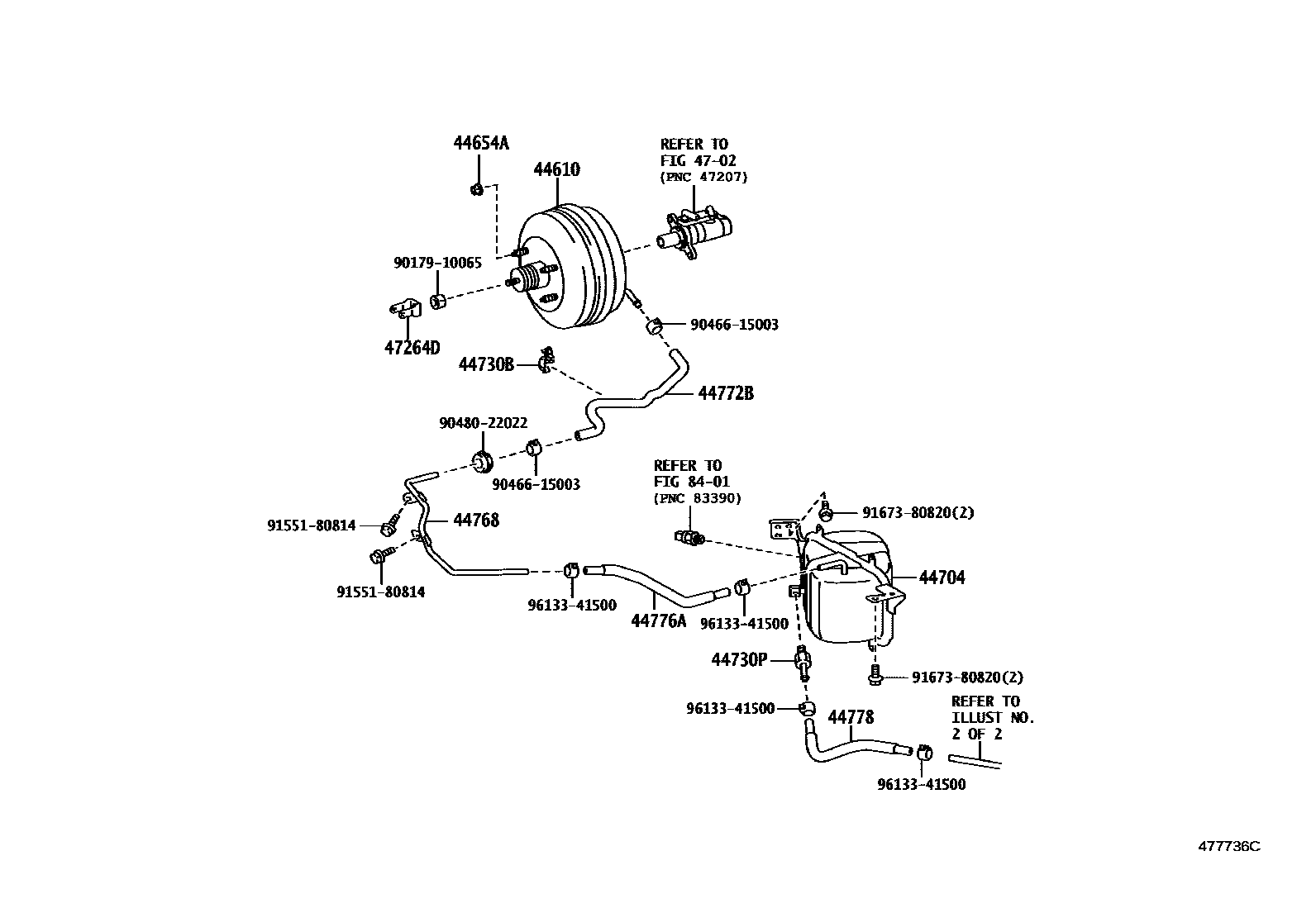

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44610BOOSTER ASSY, BRAKE

main44610-37280supersedes 44610-37290iXZU710,720..GCC201107-201505

main44610-37300iXZU710,720..GEN201911

main44610-37290iXZU710..GCC201107-201505

FRONT WHEEL BRAKE-114.8 DISC

44654ANUT, BOOSTER

main90179-08038×4iXZU710..CBU201107-201505

main90179-08057×4iXZU710,720..GEN202109

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37210iWU710..RHD201107-201905

main44704-37230iWU700,710,720,XZU710,720,730..LHD201107-201405

main44704-37231iXZU710..CBU201406-201505

main44704-37330iWU710..RHD201905-202005

44730BCLAMP, VACUUM HOSE

main44597-37021iXZU710,720..GEN201911

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

44768TUBE, BOOSTER VACUUM

main44768-37220iWU710..RHD201107-202005

main44768-37260iWU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)201107-201910

main44768-37270iXZU710,720..GEN201911

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-37170iXZU710,720..GCC201107-201505

44776HOSE, BRAKE BOOSTER

main44776-37330iXZU710,720,730..EUR201306-201512

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37430iXZU710,720,730..EUR201107-201512

main44776-37450iWU710..RHD201107-201904

main44776-37470iWU710..RHD201905-202005

main44776-37490iWU710,720..LHD;XZU710,720..MTM..GCC202001-202005

44778HOSE, CONNECTOR TO CHECK VALVE

main44750-37400iWU710..RHD201905-202005

main44778-37360iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

main44778-37370iWU710..RHD201107-201904

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-50010iXZU710,720,730..EUR201107-201512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910065

main90179-10065

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9167380820

main91673-80820

9613341500

main96133-41500

19 parts on this diagram · 9 diagrams in section
