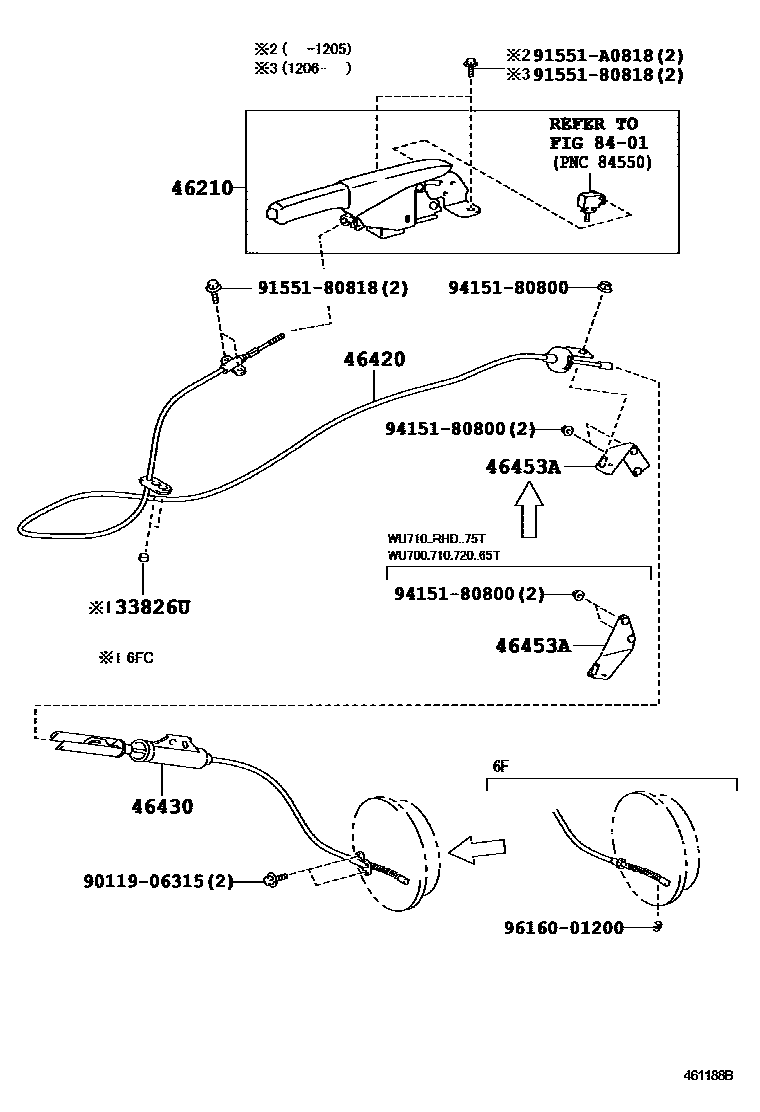

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1 0005 1MYY6S

33826UBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33577-37050iXZU710..CBU201107-201505

46210LEVER ASSY, PARKING BRAKE

main46210-37130-C0iWU700,710,720;XZU710,720..MTM..GCC201107-202005

BLACK,TRIM1#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37A70iWU710..RHD201107-202005

main46420-37B20iWU700,710,720..LHD..65T201107-202005

main46420-37B30iXZU710..MTM..GCC;WU710,720,XZU720..LHD..(75T,85T)..(GCC,GEN)201107-201910

sub46420-37B32

main46420-37B32iXZU710,720..MTM..GCC;WU710,720..LHD..(75T,85T)201911-202005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37461iXZU710,720,730..EUR201107-202005

main46430-37790iXZU710..CBU201107-201505

main46430-37A50iXZU710..5F..GCC;WU710,720..LHD..75T..GEN201107-202005

main46430-37A60iWU710..RHD..75T;WU700,710,720..65T201107-202005

main46430-37G20iXZU710,720..GEN201911

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37200iXZU710,720..MTM..GCC;WU710,720..LHD..(75T,85T)201107-202005

main46453-37320iWU710..RHD..75T;WU700,710,720..65T201107-202005

8401

9011906315

main90119-06315

9155180818

main91551-80818

91551A0818

main91551-A0818

9415180800

main94151-80800

9616001200

main96160-01200

11 parts on this diagram · 5 diagrams in section
