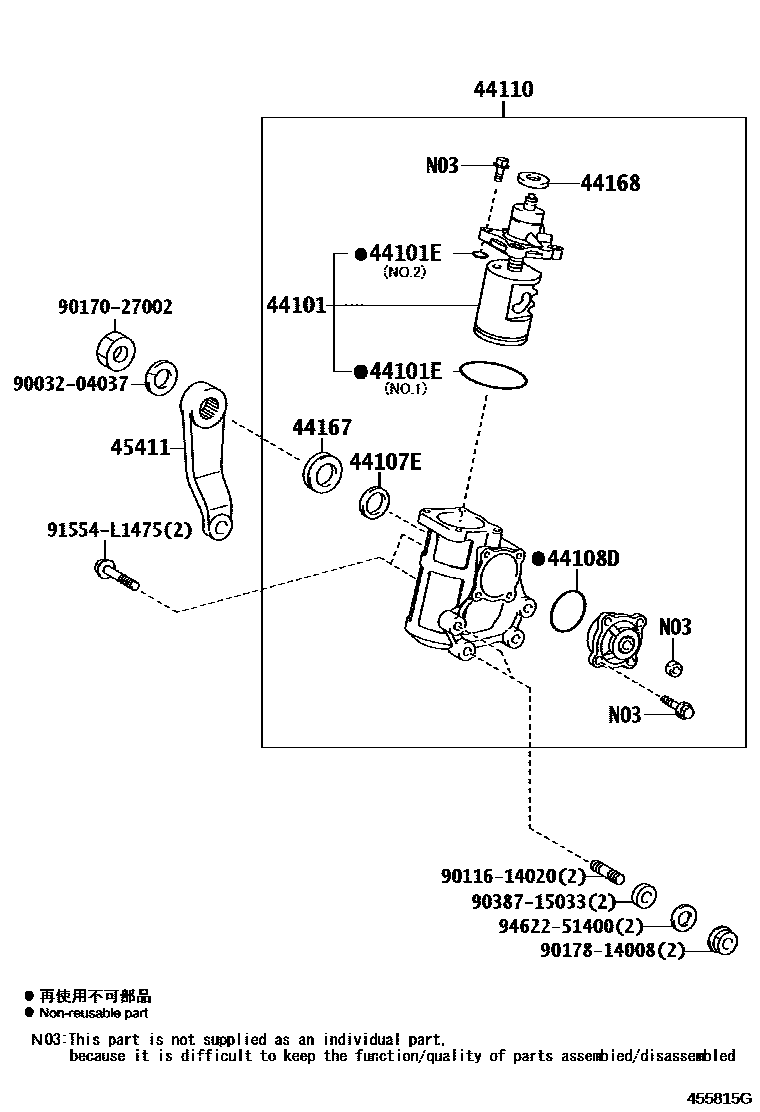

FRONT STEERING GEAR & LINK

0001 1 0002 1 0004 1 0005 1PNC45611=TYPEA 0006 1PNC45611=TYPEB 0007 1PNC45611=TYPEB

44101WORM SUB-ASSY, STEERING

main44101-37050iWU710..RHD201107-201711

main44101-37051iWU710..RHD201711-202005

main44101-37060iWU710,720,XZU710,720..LHD..MTM..(GCC,GEN)201702-201711

main44101-37061iWU710,720..LHD;XZU710,720..MTM..GCC201711-202005

44101ERING, O(FOR STEERING WORM)

main44999-37030iWU710,720;XZU710,720..MTM..GCC201711-202005

NO.1

main44999-37040iXZU710,720..GEN201911

NO.2

44107ESEAL, OIL(FOR POWER STEERING GEAR HOUSING)

main45333-37010iXZU710,720..GEN201911

44108DRING, O(FOR SECTOR COVER)

main44999-37050iWU710,720,XZU710,720..LHD..MTM..(GCC,GEN)201702-201711

44110GEAR ASSY, POWER STEERING

main44110-37280iWU710..RHD201107-201710

main44110-37281iWU710..RHD201711-202005

main44110-37300iXZU710,720,730..EUR201107-201512

main44110-37301iXZU710,720..GEN201911

44167COVER, SECTOR SHAFT DUST

main45222-37050iXZU710,720..GEN201911

44168COVER, WORM SHAFT DUST

main45222-37040iXZU710,720..GEN201911

45411ARM, PITMAN

main45411-37250iWU710..RHD201107-202005

main45411-37340iWU700,710,XZU710..5F..GCC201107-202005

main45411-37350supersedes 45411-37340iXZU710,720,730..EUR201107-201512

9003204037

main90032-04037

9011614020

main90116-14020

9017027002

main90170-27002

9017814008

main90178-14008

9038715033

main90387-15033

91554L1475

main91554-L1475

9462251400

main94622-51400

15 parts on this diagram · 6 diagrams in section
