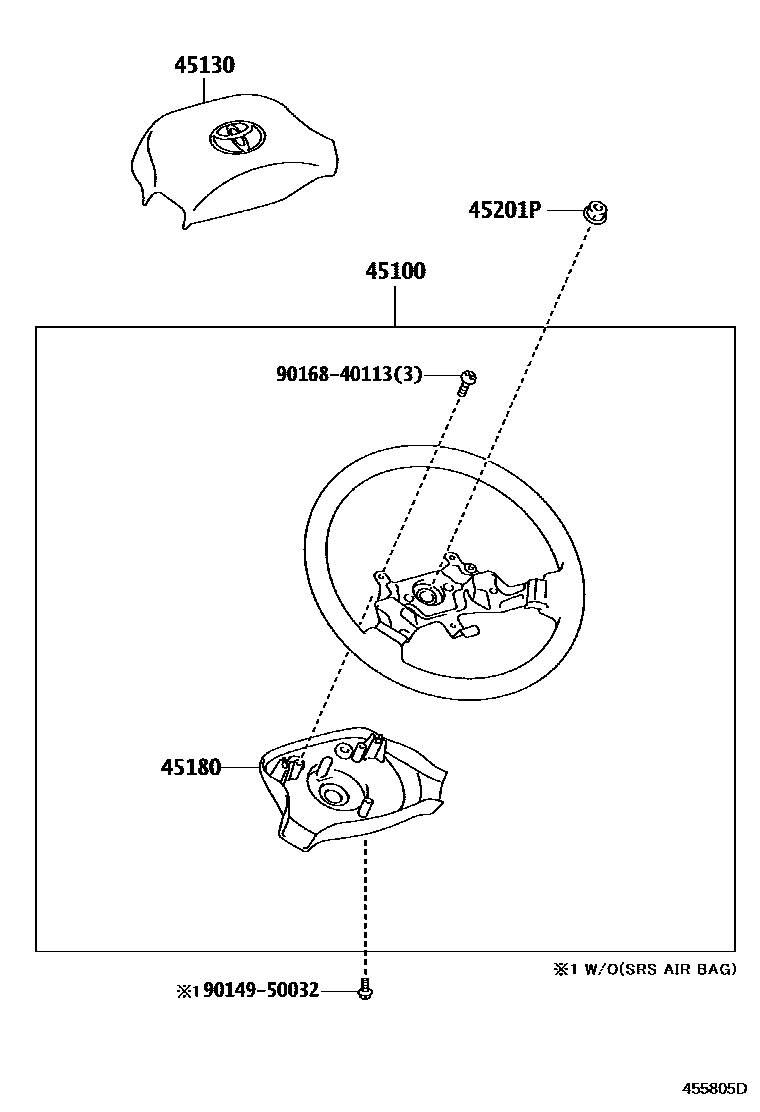

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-37060-C0iXZU710,720,730..EUR201306-201505

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37070-C0iWU700,710,720,XZU710,720..GCC,GEN201107-201505

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37090-C0supersedes 45100-37100-C0iXZU710,720,730..EUR201505-201512

2-SPOKE,URETHANE,BLACK,TRIM1#

main45100-37100-C0iWU710,720;XZU710,720..MTM..GCC201505-202005

2-SPOKE,URETHANE,BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-37101-C0iXZU710,720,730..EUR201306-201505

BLACK,TRIM1#

main45130-37120-C0iWU700,710,720,XZU710,720..GCC,GEN201107-201505

BLACK,TRIM1#

main45130-37170-C0supersedes 45130-37190-C0iXZU710,720,730..EUR201505-201512

BLACK,TRIM1#

main45130-37190-C0iWU710,720;XZU710,720..MTM..GCC201505-202005

BLACK,TRIM1#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-37020-C0iXZU710,720,730..EUR201306-201505

BLACK,TRIM1#

main45180-37030-C0iWU700,710,720,XZU710,720..GCC,GEN201107-201505

BLACK,TRIM1#

main45180-37050-C0supersedes 45180-37060-C0iXZU710,720,730..EUR201505-201512

BLACK,TRIM1#

main45180-37060-C0iWU710,720;XZU710,720..MTM..GCC201505-202005

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iXZU710,720..GEN201911

9014950032

main90149-50032

9016840113

main90168-40113

6 parts on this diagram · 2 diagrams in section
