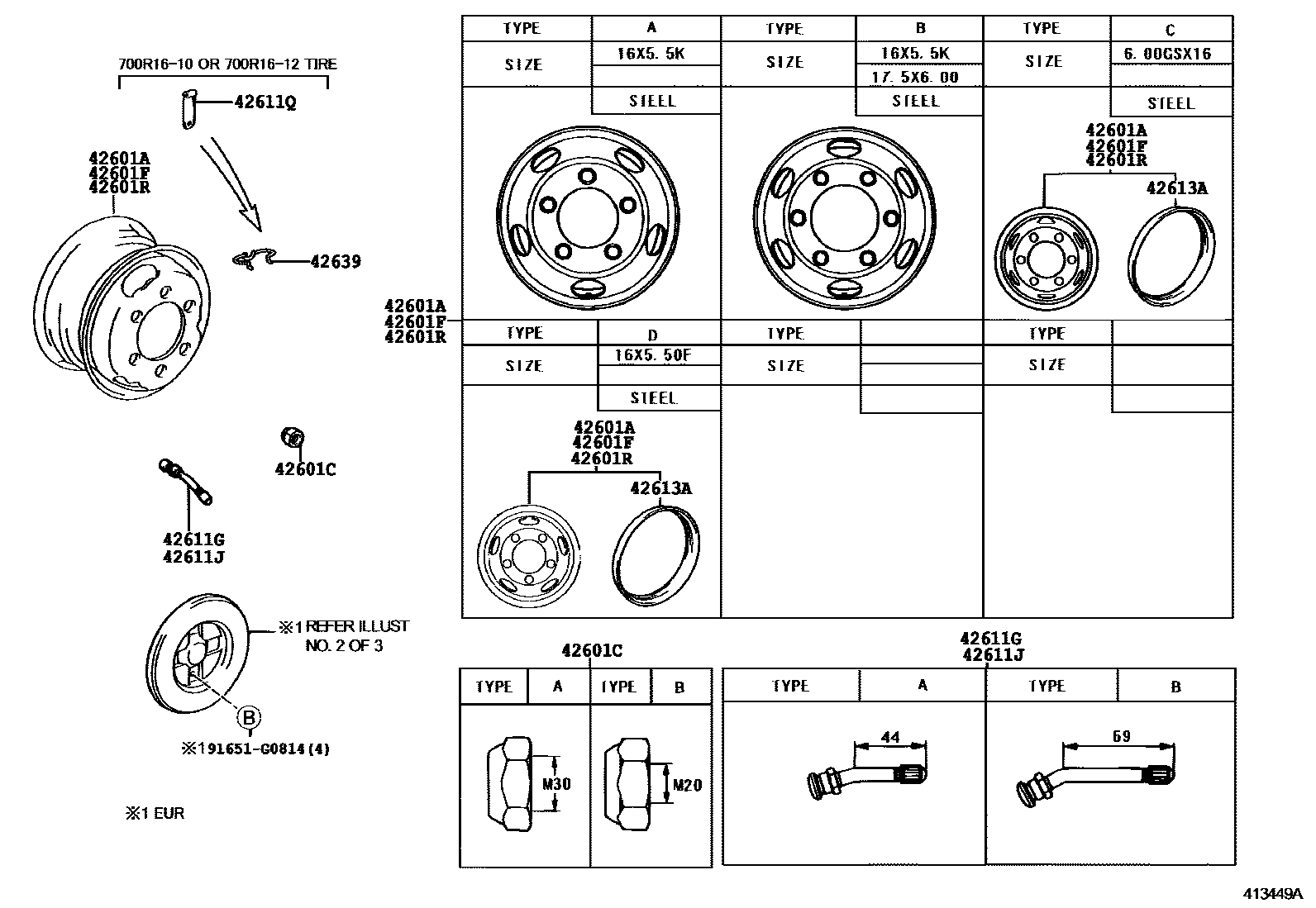

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
17.5X6.00, #,TYPE B:REFER ILLUST.
6.00GSX16, #,TYPE C:REFER ILLUST.
16X5.5K, #,TIRE & DISK WHEEL-195/85R16 114 RIB,TYPE A:REFER ILLUST.
16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,TYPE D:REFER ILLUST.
17.5X6.00, #,FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF REIN TENSION(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE &DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG,RH,TYPE A:REF.ILL.; FRONT SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB,RH,TYPE A:REF.ILL.; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB; RH,TYPE A:REF.ILL.
LH,TYPE A:REF.ILL.
RH,TYPE B:REF.ILL.
LH,TYPE B:REF.ILL.
42601FWHEEL, DISC (FOR FRONT)
17.5X6.00, #,TYPE B:REFER ILLUST.
6.00GSX16, #,TYPE C:REFER ILLUST.
16X5.5K, #,TIRE & DISK WHEEL-195/85R16 114 RIB,TYPE A:REFER ILLUST.
16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,TYPE D:REFER ILLUST.
17.5X6.00, #,FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
42601RWHEEL, DISC (FOR REAR)
17.5X6.00, #,TYPE B:REFER ILLUST.
6.00GSX16, #,TYPE C:REFER ILLUST.
16X5.5K, #,TIRE & DISK WHEEL-195/85R16 114 RIB,TYPE A:REFER ILLUST.
16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFER ILLUST.; 16X5.50F, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB,TYPE D:REFERILLUST.; 16X5.50F, #,TYPE D:REFER ILLUST.
17.5X6.00, #,FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEEL BRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; 17.5X6.00, #,TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-195/85R16 114 RIB,TYPE A:REFER ILLUST.
FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE B:REFER ILLUST.
TIRE & DISK WHEEL-195/85R16 114 RIB,TYPE A:REFER ILLUST.
FRONT WHEEL BRAKE-320(100) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&ABS-WITHOUT&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.; TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
42611QCLIP (FOR TUBE)
REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB
42613ARING, DISC WHEEL SIDE
REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM AUTO ADJUSTR&REAR WHEEL BRAKE-320(115) DRUM AUTO ADJUSTR&TIRE & DISK WHEEL-225/85R16 121 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-320(100) DRUM&REAR WHEELBRAKE-320(115) DRUM&TIRE & DISK WHEEL-225/85R16 121 RIB
42639STOPPER, TIRE VALVE
REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF REIN TENSION&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG; REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&FRONT WHEEL BRAKE-115.7 DISC&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
91651G0814
main91651-G0814
10 parts on this diagram · 3 diagrams in section
