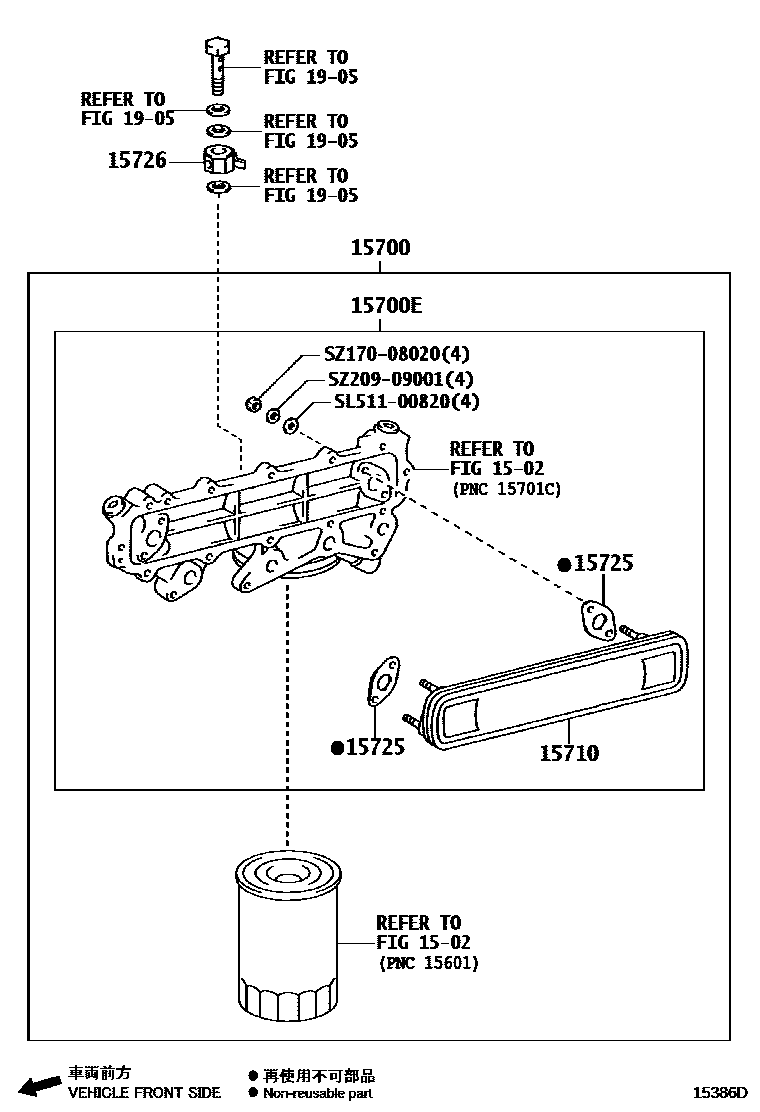

ENGINE OIL COOLER

0001 1 0002 1 0003 1 0004 1

1502OIL FILTER

→ Go to FIG 15-02

15700COOLER ASSY, OIL W/BRACKET

main15700-78140iN04C..XZU710,720..GEN201911-202204

main15700-78141iN04C..XZU710,720..GEN202205

main15700-E0013iN04C..XZU710..5F; W04D..WU710,720..LHD..(75T,85T)201107-201810

main15700-E0014iN04C..XZU710..5F..GCC; W04D..WU710,720..LHD..(75T,85T)201811-202005

main15700-E0023iN04C..XZU710,720..6F..GCC201211-201810

main15700-E0024iN04C..XZU710,720..6F..GCC201811-202005

main15700-E0502iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

15700ECOOLER SUB-ASSY, OIL, W/O OIL FILTER

mainS1570EV020iN04C..XZU710..5F; W04D..WU710,720..LHD..(75T,85T)201605-201811

mainS1570EV021iN04C..XZU710..5F..GCC; W04D..WU710,720..LHD..(75T,85T)201811-202005

mainS1570EV030iN04C..XZU710,720..6F..GCC201605-201811

mainS1570EV031iN04C..XZU710,720..6F..GCC201811-202005

mainS1570EV050iW04D..WU710..65T;W04D..WU710..RHD..75T201605-202005

15710COOLER ASSY, OIL

main16491-78140iN04C..XZU710,720..GEN201911

main16491-EV040iN04C..XZU710..5F..GCC201811-202005

main16491-EV050iN04C..XZU710,720..6F..GCC201811-202005

mainS157122250iN04C..XZU710..5F; W04D..WU710,720..LHD..(75T,85T)201107-201811

mainS157122260iN04C..XZU710,720,730..EUR201211-201512

mainS157122330iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

15725GASKET, OIL COOLER COVER

main15785-EV010×2iN04C..XZU710,720..MTM..GCC; W04D..WU700,710,720201212-202005

mainS157171270×2iN04C..XZU710,720; W04D..WU700,710,720201107-201212

15726CONNECTOR, OIL COOLER UNION BOLT

mainSZ92035020iW04D..WU700,710,720201107-202005

1905VACUUM PUMP

→ Go to FIG 19-05

SL51100820

mainSL511-00820

SZ17008020

mainSZ170-08020

SZ20909001

mainSZ209-09001

10 parts on this diagram · 4 diagrams in section
