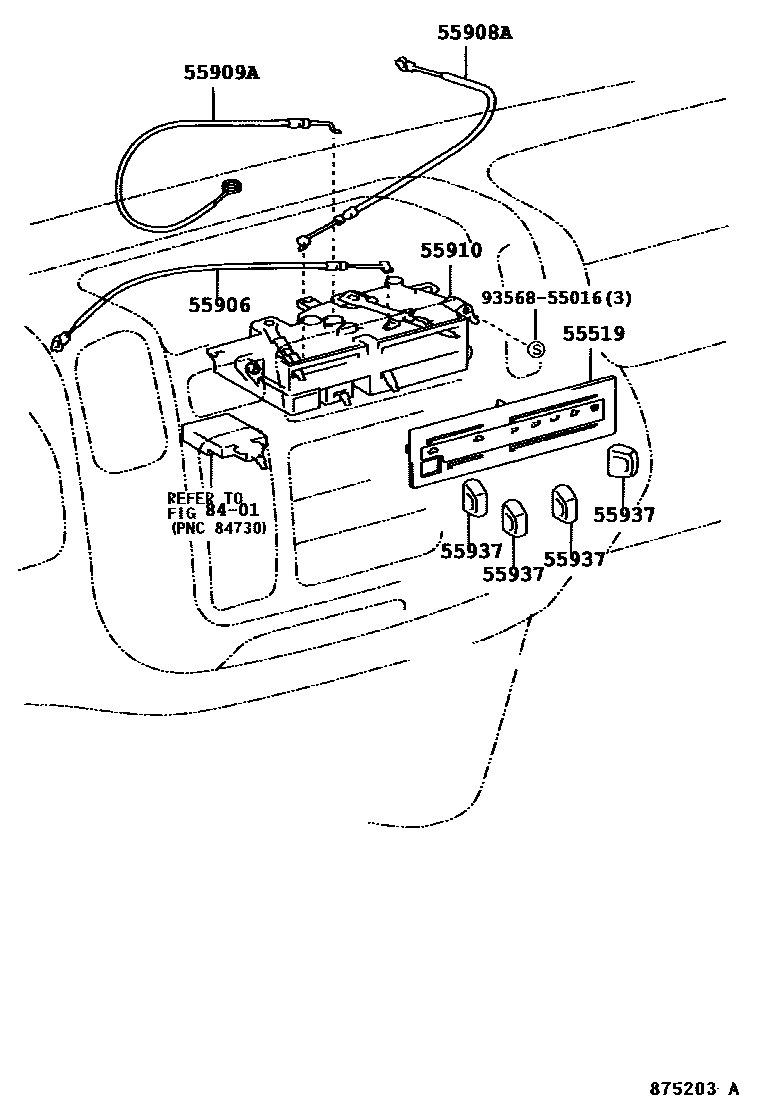

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-37070iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

W(AIR CONDITIONER)

main55519-37080iWU410,420,XZU423,433..SA200802-200812

main55519-37090iXZU417,427200801-200807

W(AIR CONDITIONER)

main55519-37100iXZU415,425,435200708-200712

main55519-37130iWU41#,422,XZU413,423..LHD200812-201208

W(AIR CONDITIONER)

main55519-37140iXZU417,419,427,429,439200807-201208

W/O(AIR CONDITIONER)

main55519-37150iWU410,XZU412,422..RHD..GEN200212-200610

W(BOOST VENTILATOR)

main55519-37160iWU410,XZU412,414,422,424..LHD..5F200212-200610

W(BOOST VENTILATOR)

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-37060iBU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD200110-200802

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-37040iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main55908-37070iXZU414,424,434..EUR200110-200608

main55908-37080iXZU412,422..6F200301-200802

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-37050iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main55909-37080iBU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(DCR,DSL,TD)200110-200802

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-37061iWU410,420,XZU420,430..SA200304-200802

main55910-37070iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

main55910-37110iWU410,XZU412,422..RHD..GEN200212-200610

main55910-37120iWU41#,422,XZU413,423..LHD200610-201106

55937KNOB, HEATER CONTROL LEVER

main55905-89115×3iWU41#,422,XZU413,423..GCC,GEN200610-201106

W(HEATER)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356855016

main93568-55016

8 parts on this diagram · 4 diagrams in section
