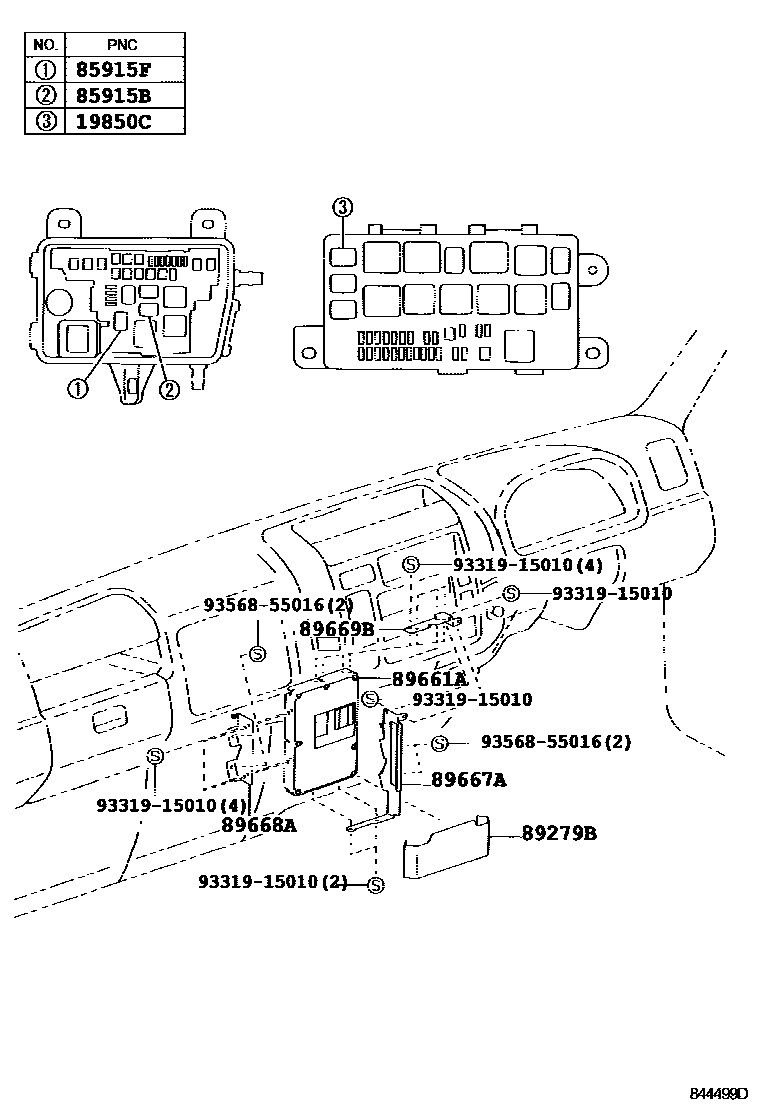

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1 0005 1

19850CGLOW PLUG RELAY

main90987-02017iS05C..XZU412,422..GEN..DSL200212-200610

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iXZU414,424,434..EUR200110-200608

main90987-02027iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

85915FRELAY, SPILL VALVE

main90987-02017iXZU414,424,434..EUR200110-200608

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-12150iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200705-201208

main89279-37020iXZU414,424..LHD..GEN200110-200610

main89279-37060iXZU404,414,424,434..RHD200110-200610

89661ACOMPUTER, ENGINE CONTROL

main89561-37130iXZU404,414,424,434..RHD200110-200610

main89561-37150iXZU414,424,434..EUR200110-200408

main89561-37230iXZU414,424..LHD..GEN200212-200610

main89561-37260iXZU414,424,434..EUR200408-200608

main89661-37060iBU410,420200411-200701

main89661-37540iXZU415,425,435200608-200704

main89661-37541iXZU415,425,435200705-200708

main89661-37600iXZU415,425,435200708-200811

main89661-37601iXZU415,425,435200812-200905

main89661-37630iXZU413,423200610-200701

main89661-37631iXZU413,423..GEN200702-200811

main89661-37632iXZU413,423200812-200907

main89661-37633iXZU413,423200908-201106

main89661-37640iXZU417,427200701-200811

main89661-37641iXZU417,427200812-200901

main89661-37860iXZU419,429,439200908-201012

main89661-37861iXZU419,429,439201101-201208

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37020iBU410,420200411-200701

main89667-37050iXZU414,424,434..EUR200110-200608

main89667-37060iXZU404,414,424,434..RHD200110-200610

main89667-37070iXZU423,433..SA200802-200812

main89667-37100iXZU413,415,417,419,423,425,427,429,435,439..LHD..DCRTK200610-201208

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37020iBU410,420200411-200701

main89668-37050iXZU414,424..LHD..GEN200110-200610

main89668-37060iXZU404,414,424,434..RHD200110-200610

main89668-37070iXZU423,433..SA200802-200812

main89668-37090iXZU415,425,435200608-200708

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-37020iXZU414,424,434..EUR200110-200608

main89669-37060iXZU404,414,424,434..RHD200110-200610

9331915010

main93319-15010

9356855016

main93568-55016

10 parts on this diagram · 5 diagrams in section
