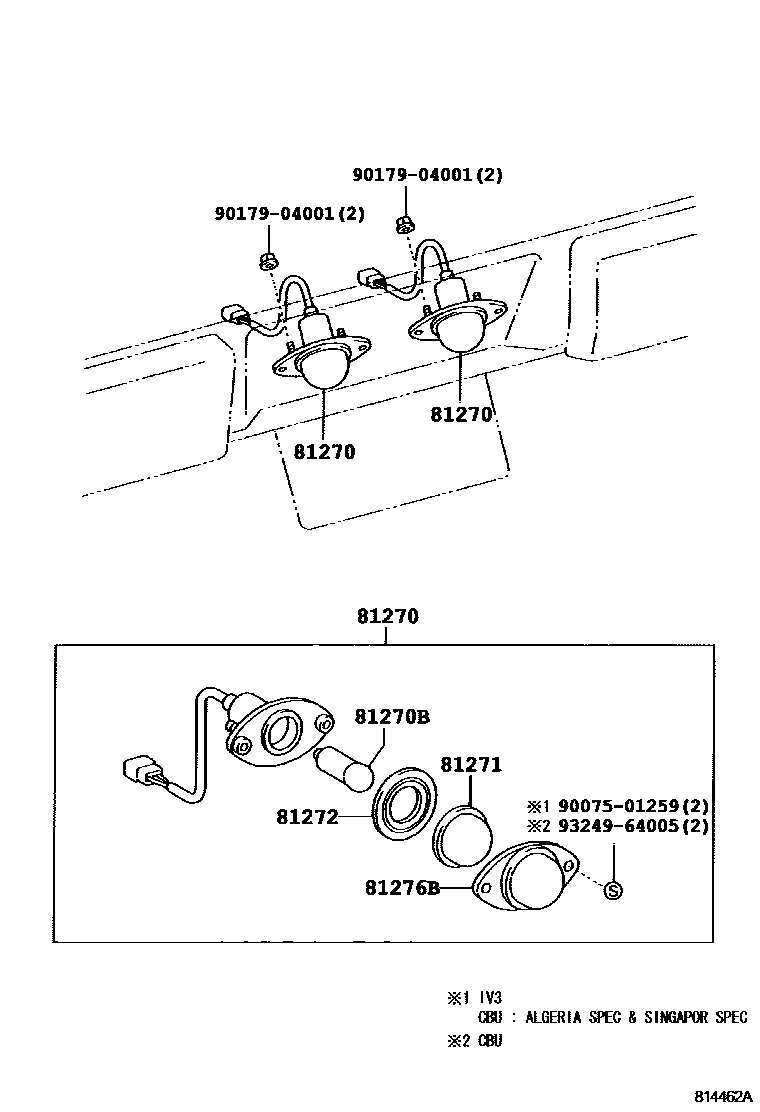

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-37010×2iWU410,XZU412,422..CBU200212-200610

main81270-37020×2iXZU414,424..LHD..GEN;BU410,420,WU410,XZU412,422..(GCC,GEN,TAIW)..IV3200212-200610

main81270-37110×2iXZU412,422..LHD..GEN..IV3..DSL; XZU412..RHD..IV3..TD200212-200610

ALGERIA SPEC; SINGAPORE SPEC

main81270-37130×2iXZU412,422..LHD..GEN..CBU; XZU412..CBU..TD200212-200610

ALGERIA SPEC; SINGAPORE SPEC

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16017×2iXZU412,422200610-200802

24V 10W

main99134-11120×2iWU41#,422..CBU200610-201106

24V 12W

81271LENS, LICENSE PLATE LAMP

main81271-10010×2iBU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD200110-200802

main81271-25040×2iXZU412,422..LHD..GEN..CBU; XZU412..CBU..TD200212-200610

ALGERIA SPEC; SINGAPORE SPEC

81272GASKET, LICENSE PLATE LAMP LENS

main81272-37020×2iBU410,420,WU410,420,XZU404,412,414,415,420,422,424,425,43#..DCR,DSL,TD200110-200802

81276BCOVER, LICENSE PLATE LAMP

main81276-95016×2iWU410,XZU412,422..CBU200212-200610

main81278-25040×2iXZU412..CBU..TD;XZU412,422..LHD..GEN..CBU200212-200610

ALGERIA SPEC

main81278-37110×2iWU41#..65T..IV3;WU412,422..GCC..IV3;WU410..75T..GEN..IV3;WU420,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK,DSL200610-201208

main81278-95425×2iXZU414,424..LHD..GEN;BU410,420,WU410,XZU412,422..(GCC,GEN,TAIW)..IV3200212-200610

9007501259

main90075-01259

9017904001

main90179-04001

9324964005

main93249-64005

8 parts on this diagram · 1 diagram in section
