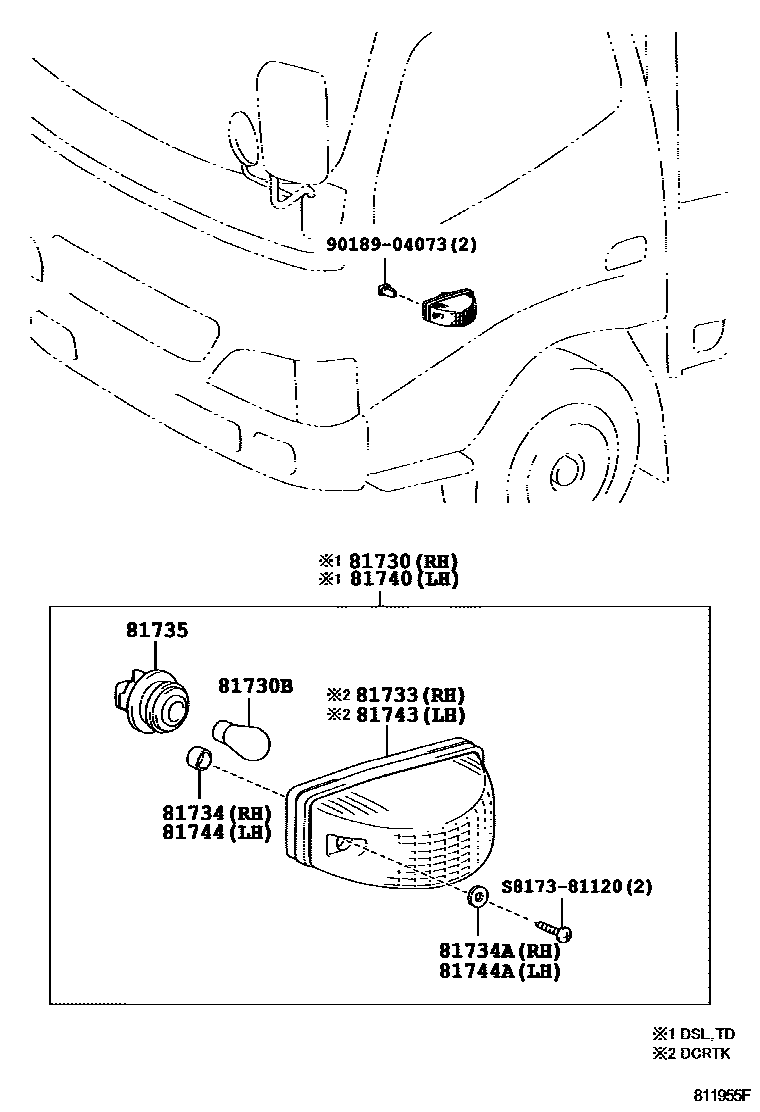

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0003 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-37010iXZU414,424,434..EUR200110-200608

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-16014×2iXZU414,424,434..EUR200110-200608

24V 21W

81733BODY, SIDE TURN SIGNAL LAMP, RH

main81733-37010iXZU417,427200701-200811

mainS816731061iXZU419,429,439201011-201208

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81734-37010×2iXZU414,424,434..EUR200110-200608

mainS900755107iXZU419,429,439201011-201208

81734APROTECTOR, SIDE TURN SIGNAL LAMP, RH

main81738-37010×2iXZU414,424,434..EUR200110-200608

mainS900752103iXZU419,429,439201011-201208

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81515-12520×2iXZU414,424,434..EUR200110-200608

mainS817011060×2iXZU419,429,439201011-201208

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-37010iXZU414,424,434..EUR200110-200608

81743BODY, SIDE TURN SIGNAL LAMP, LH

main81733-37010iXZU417,427200701-200811

mainS816731061iXZU419,429,439201011-201208

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81734-37010×2iXZU414,424,434..EUR200110-200608

mainS900755107iXZU419,429,439201011-201208

81744APROTECTOR, SIDE TURN SIGNAL LAMP, LH

main81738-37010×2iXZU414,424,434..EUR200110-200608

mainS900752103iXZU419,429,439201011-201208

9018904073

main90189-04073

S817381120

mainS8173-81120

12 parts on this diagram · 2 diagrams in section
