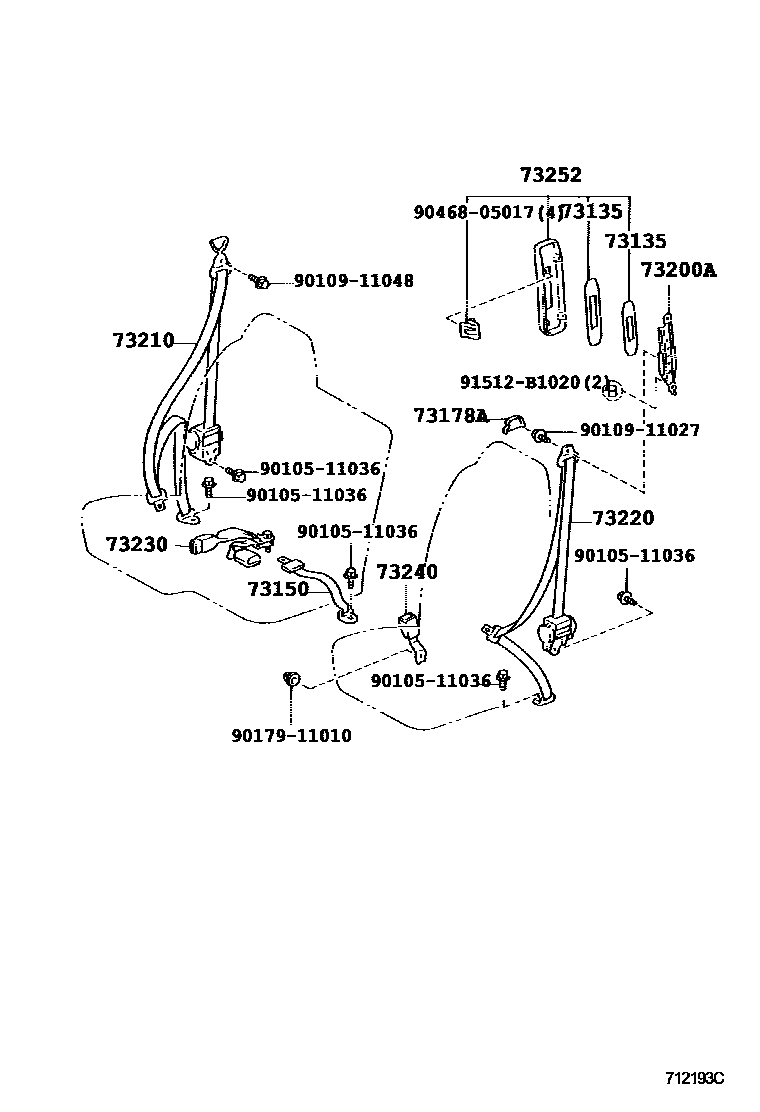

SEAT BELT

0001 1 0002 1 0003 1 0004 1W/O(CENTER SEAT BELT) 0005 1W/O(CENTER SEAT BELT) 0006 1NON-RETRACTOR TYPE SEAT BELT 0007 1NON-RETRACTOR TYPE SEAT BELT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35010-B1iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#,OUTER

main73135-35020-B1iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#,INNER

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37041-B0iXZU413,423..6F..GEN200805-200908

GRAY,TRIM1#

main73150-37041-B1iXZU413,423..6F200908-201106

GRAY,TRIM1#

main73150-37100-B0iWU410,XZU412,414,422,424..LHD..5F..GEN200302-200610

GRAY,TRIM1#

main73150-37100-B1iXZU413,423..5F;WU41#,422,XZU419,429,439200908-201208

GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-B1iXZU415,419,425,429,435,439200708-201208

MD.CHARCOAL,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030iXZU414,424,434..EUR200110-200608

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-25060-B0iWU41#,422,XZU413,423..5F..GEN200610-200901

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B0iWU41#,422,XZU413,423..5F..GEN200902-200908

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B1iWU41#,422,XZU413,423..5F..GEN200908-201106

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-37170-B0iWU410,420,XZU404,41#,42#,43#200110-200408

GRAY,TRIM1#

main73210-37230-B0iXZU404,414,424,434..ARL200212-200408

W(SRS AIR BAG,DRIVER SIDE),GRAY,TRIM1#

main73210-37250-B0iXZU415,425,435200409-200708

GRAY,TRIM1#

main73210-37251-B0iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435200801-200908

GRAY,TRIM1#

main73210-37251-B1iWU41#,422,XZU41#,42#,439200908-201208

GRAY,TRIM1#

main73210-37270-B0iXZU404,414,424,434..ARL200409-200610

W(SRS AIR BAG,DRIVER SIDE),GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-25060-B0iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..GEN200212-200610

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B0iWU41#,422,XZU413,423..5F..GEN200902-200908

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-25061-B1iWU41#,422,XZU413,423..5F..GEN200908-201106

NON-RETRACTOR TYPE SEAT BELT,GRAY,TRIM1#

main73210-37170-B0iWU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA200110-200408

GRAY,TRIM1#

main73210-37180-B0iXZU414,424,434..EUR200110-200408

GRAY,TRIM1#

main73210-37250-B0iBU410,420200409-200701

GRAY,TRIM1#

main73210-37251-B0iXZU412,422;WU410,420,XZU420,430..SA200801-200802

GRAY,TRIM1#

main73210-37251-B1iWU41#,422,XZU413,423200908-201106

GRAY,TRIM1#

main73210-37260-B0iXZU415,425,435200708-200905

GRAY,TRIM1#

main73210-37260-B1iXZU419,429,439200908-201208

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-37090-B0iWU410,XZU412,422..GCC200406-200610

DK.CHARCOAL,TRIM1#

main73230-37110-B0iXZU414,424,434..EUR200401-200802

DK.CHARCOAL,TRIM1#

main73230-37190-B0iBU410,420,WU410,XZU412,414,415,422,424,425,434,435..EUR,GCC,TAIW200110-200708

GRAY,TRIM1#

main73230-37191-B0iWU41#,422,XZU41#,42#,435..LHD200902-200908

GRAY,TRIM1#

main73230-37191-B1iWU41#,422,XZU41#,42#,439..LHD200908-201208

GRAY,TRIM1#

main73230-37220-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

DK.CHARCOAL,TRIM1#

main73240-37180-B0iWU410,XZU412,422..LHD..GEN..CBU200212-200610

W/O(CENTER SEAT BELT),DK.CHARCOAL,TRIM1#

main73240-37180-B6iWU41#,422,XZU413,423..LHD..5F..GEN200908-201106

W/O(CENTER SEAT BELT),GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-37090-B0iWU410,XZU412,422..GCC200212-200610

DK.CHARCOAL,TRIM1#

main73230-37110-B0iBU410,420,WU410,XZU412,414,415,422,424,425,434,435..LHD..(EUR,GEN,TAIW)..(DCR,DSL,TD)200110-200802

DK.CHARCOAL,TRIM1#

main73230-37180-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-200901

GRAY,TRIM1#

main73230-37181-B0iWU410..RHD200902-200908

GRAY,TRIM1#

main73230-37181-B1iWU410..RHD200908-201106

GRAY,TRIM1#

main73230-37200-B0iWU41#,422..GCC200610-201106

DK.CHARCOAL,TRIM1#

main73230-37210-B0iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(EUR,GEN,TAIW)..(DCRTJ,DCRTK,DSL)200610-201208

DK.CHARCOAL,TRIM1#

main73230-37220-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

DK.CHARCOAL,TRIM1#

main73240-37180-B0iWU410..RHD..GEN200610-200908

W/O(CENTER SEAT BELT),DK.CHARCOAL,TRIM1#

main73240-37180-B6iWU410..RHD200908-201106

W/O(CENTER SEAT BELT),GRAY,TRIM1#

73252COVER, SHOULDER BELT ANCHOR ADJUST, RH

main73252-25010-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

main73252-25011-B0iXZU419,429,439200910-201208

MD.CHARCOAL,TRIM1#

9010511036

main90105-11036

9010911027

main90109-11027

9010911048

main90109-11048

9017911010

main90179-11010

9046805017

main90468-05017

91512B1020

main91512-B1020

15 parts on this diagram · 7 diagrams in section
