SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1DRIVER SEAT 0003 1DRIVER SEAT 0005 1DRIVER SEAT 0007 1DRIVER SEAT 0008 1DRIVER SEAT 0010 1PASSENGER SEAT 0011 1PASSENGER SEAT

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37010iWU410,420,XZU420,430..SA200212-200802

main71610-37050iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37510-B3iXZU404,414,424..RHD..GEN200110-200303

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71071-37580-B0iXZU414,424,434..EUR200110-200212

MEDIUM CHARCOAL,TRIM15

main71071-37580-B1iXZU415,425,435200212-200708

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71071-37590-B0iXZU404,414,424..ARL;WU410,420,XZU412,420,422,43#..RHD200212-200406

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71071-37600-B1iWU410,420,XZU420,430..SA200212-200802

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71071-37620-B0iWU410,420,XZU420,430..SA200406-200802

SEAT = TYPE A-*104,MD.CHARCOAL,TRIM1#

main71071-37730-B1iBU410,420200406-200701

SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1#

main71071-37740-B1iXZU412,422..6F200406-200802

W/O(CENTER SEAT BELT) & SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1#

main71071-37760-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

MD. CHARCOAL,TRIM1#

main71071-37770-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

MEDIUM CHARCOAL,TRIM1#

main71071-37780-B0iXZU413,423..5F;WU41#,422,XZU417,427..LHD200610-201106

W(CENTER SEAT BELT),MD. CHARCOAL,TRIM1#

main71071-37790-B0iWU41#,422,XZU413,423..LHD..5F..GEN200610-201106

MD. CHARCOAL,TRIM1#

main71071-37800-B0iXZU415,419,425,429,435,439200708-201208

MD. CHARCOAL,TRIM1#

main71071-3V030-B0iWU41#,422,XZU413,423..LHD200610-201106

W(CENTER SEAT BELT),MEDIUM CHARCOAL,TRIM1#

main71071-3V040-B0iWU410,XZU41#,422,424..LHD..(GCC,GEN)200212-200406

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71071-3V050-B0iWU410,XZU41#,422,424..LHD..GEN200212-200406

W/O(CENTER SEAT BELT) & SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71071-3V060-B0iXZU412,422..6F200212-200802

W/O(CENTER SEAT BELT) & SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-37020-B1iWU410,XZU412,414,422,424..LHD..5F200406-200610

SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1#

main71027-37030-B1iXZU404,414,424..RHD..GEN200406-200610

SEAT = TYPE A-*104,DK. CHARCOAL,TRIM1#

main71027-37070-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

MD. CHARCOAL,TRIM1#

main71027-37080-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

MEDIUM CHARCOAL,TRIM1#

main71027-37090-B0iXZU413,423..5F;WU41#,422,XZU417,427..LHD200610-201106

MD. CHARCOAL,TRIM1#

main71027-37100-B0iXZU415,419,425,429,435,439200708-201208

MD. CHARCOAL,TRIM1#

main71027-37150-B0iXZU404,414,424..RHD..GEN200303-200406

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71027-37160-B0iWU410,420,XZU420,430..SA200212-200802

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71027-37180-B0iWU410,XZU41#,422,424..LHD..(GCC,GEN)200212-200406

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71027-37190-B0iXZU412,422..6F200212-200802

SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#

main71073-37670-B1iXZU404,414,424..RHD..GEN200110-200303

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71073-37720-B0iXZU415,425,435200110-200708

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

main71073-37870-B0iWU410,420,XZU420,430..SA200406-200802

SEAT = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12053iBU410,420200110-200701

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-37020iXZU414,424,434..EUR200110-200608

main71501-37021iXZU419,429,439201109-201208

main71511-37080iWU410,420,XZU420,430..SA200212-200802

main71511-37130iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

7152

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37140iXZU404,414,424..RHD..GEN200110-200610

sub71551-25060

main71551-37150iXZU404,414,424,434..ARL;WU410,XZU412,422..RHD..GEN200212-200610

main71551-37190iXZU414,424,434..EUR200110-200608

main71551-37191iXZU419,429,439201109-201208

main71551-37210iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37020iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

sub71587-37021

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71013-37120iXZU414,424,434..EUR200110-200608

main71013-37121iXZU419,429,439201205-201208

main71630-37030iXZU404,414,424..RHD..GEN200110-200610

sub71630-25050

main71630-37060iWU410,420,XZU420,430..SA200212-200802

sub71630-37020

main71630-37110iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

sub71630-25060

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37010-B0iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

MD.CHARCOAL,TRIM1#

sub71811-37011

main71811-37020-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-200909

MD.CHARCOAL,TRIM1#

main71811-37021-B0iWU410..RHD200910-201106

MD.CHARCOAL,TRIM1#

sub71811-37022

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-37020iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

72137BCOVER, SEAT TRACK, RH

main72137-35050-B1iXZU415,425,435200110-200708

DK.CHARCOAL,TRIM1#

main72137-37010-B0iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

DK.CHARCOAL,TRIM1#

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37030iXZU414,424,434..EUR200110-200608

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-37020iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main72510-37050-B0iWU410,XZU412,414,422,424..LHD..5F200110-200610

MD.CHARCOAL,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37010-B0iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

MD.CHARCOAL,TRIM1#

main72525-37020-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

MD.CHARCOAL,TRIM1#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-37030iXZU404,414,424..RHD..GEN200110-200610

72791LEVER, LUMBAR SUPPORT

main72791-12010-B9iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)

main90520-01006iXZU414,424,434..EUR200110-200608

9011908134

main90119-08134

9011910111

main90119-10111

9011910229

main90119-10229

9011910825

main90119-10825

9016740044

main90167-40044

9017908149

main90179-08149

9046818071

main90468-18071

9165160614

main91651-60614

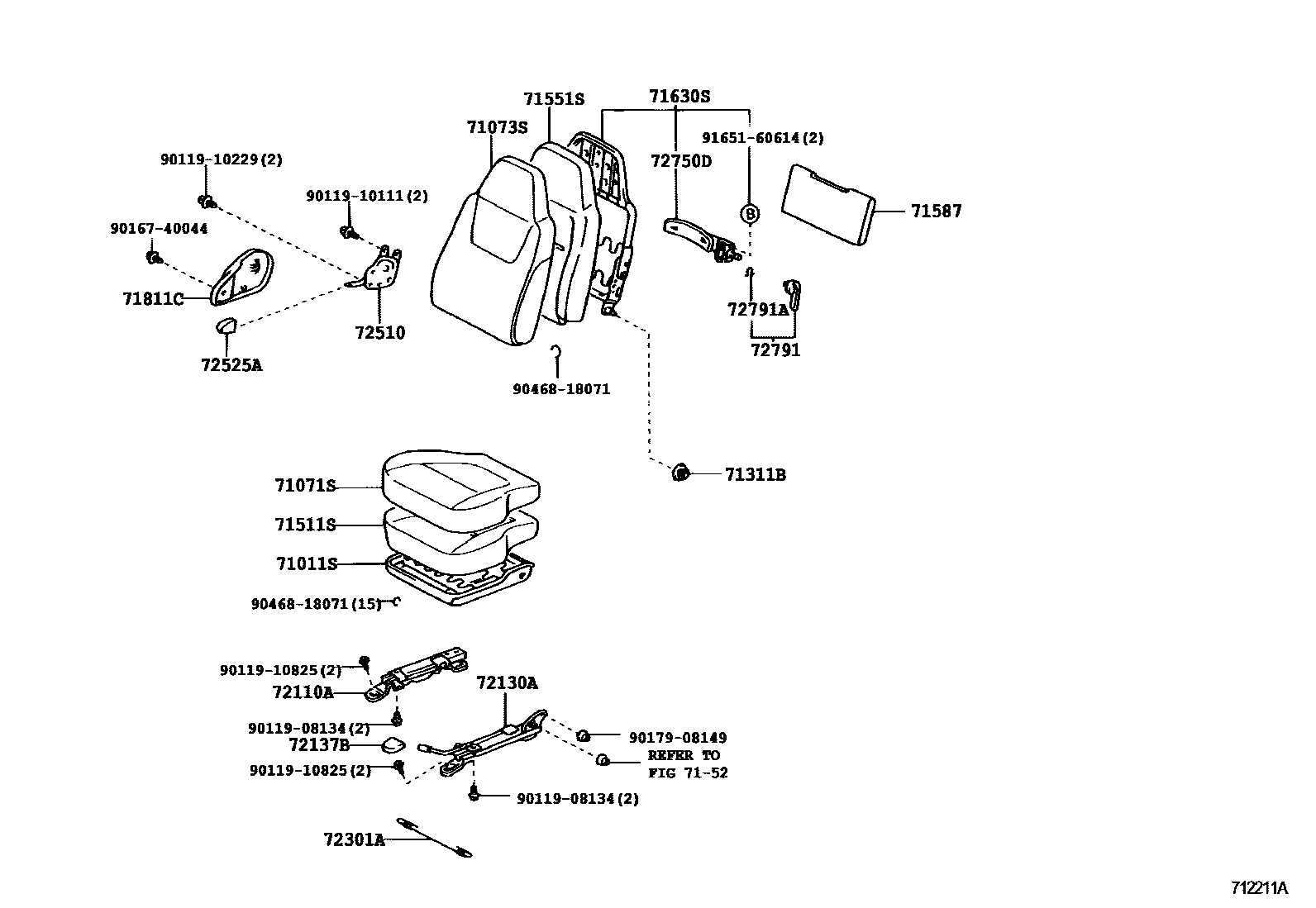

27 parts on this diagram · 8 diagrams in section
