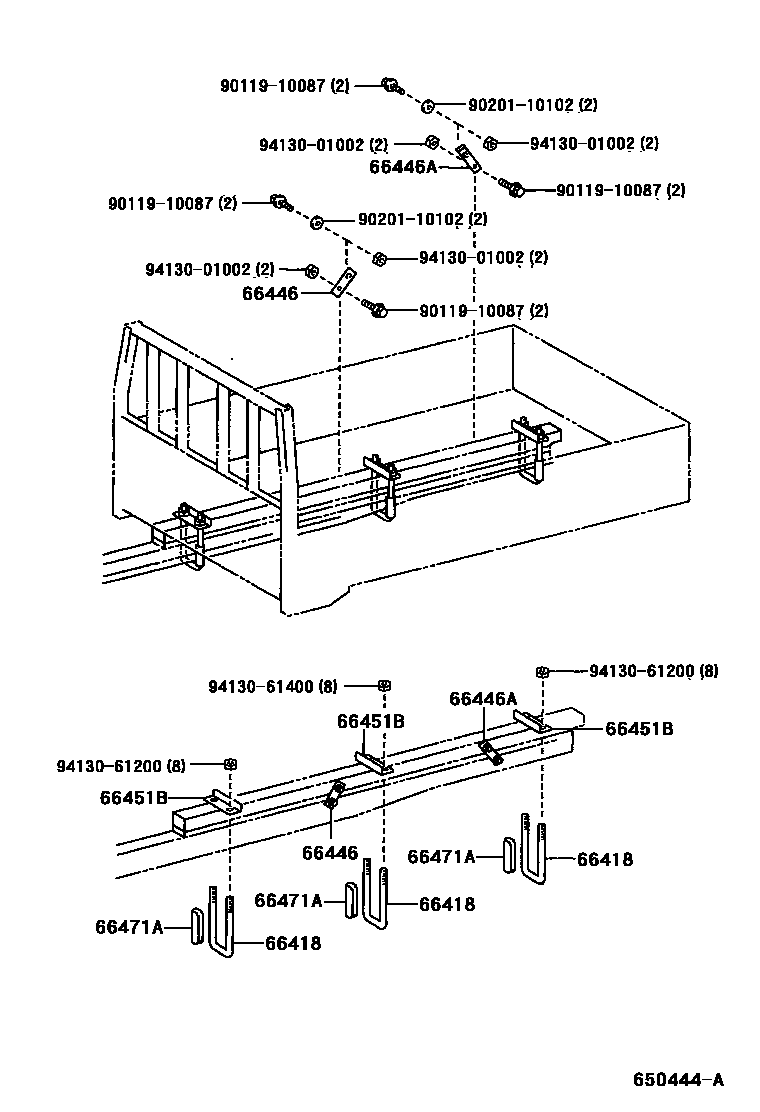

REAR BODY MOUNTING

0001 1 0002 1

66418BOLT, MOUNTING

main90031-17021×2iXZU422..CBU;XZU412..85T..CBU200212-200610

NO.4

main90031-17023×2iXZU412..85T..CBU200212-200610

NO.3

main90031-17024×2iXZU412..85T..CBU; XZU422..CBU200212-200610

NO.1; NO.1 & NO.2

main90117-12037×2iWU410,XZU412..(55T,65T,75T)..CBU200212-200610

REAR

main90117-12041×2iWU410,XZU412..(55T,65T,75T)..CBU200212-200610

FRONT

main90117-14074×2iWU41#..5F..CBU200610-201106

CENTER

66446BRACE, FRAME FLOOR

main66446-37060×2iWU422..CBU;WU412..85T..CBU200610-201106

main66446-92803×2iWU41#..5F..CBU200610-201106

66446ABRACE, FRAME TO REAR BODY FLOOR

main66446-37060×2iWU422..CBU;WU412..85T..CBU200610-201106

main66447-92802×2iWU41#..5F..CBU200610-201106

66451BPLATE, U BOLT

main66451-37030×2iWU41#..5F..CBU200610-201106

main66451-37040×6iWU422..CBU;WU412..85T..CBU200610-201106

66471AREINFORCEMENT, FRAME U BOLT

main66405-37040×2iWU410,XZU412..(55T,65T,75T)..CBU200212-200610

FRONT

main66405-37050×2iWU41#..5F..CBU200610-201106

CENTER

main66405-37070×2iWU410,XZU412..(55T,65T,75T)..CBU200212-200610

REAR

main66471-37060×3iWU412..85T..CBU; WU422..CBU200610-201106

NO.1; NO.1 & NO.2(RH)

main66471-37070iWU422..CBU200610-201106

NO.2(LH)

main66471-37080×2iXZU422..CBU;XZU412..85T..CBU200212-200610

NO.4

main66471-37090×2iWU412..85T..CBU200610-201106

NO.3

9011910087

main90119-10087

9020110102

main90201-10102

9413001002

main94130-01002

9413061200

main94130-61200

9413061400

main94130-61400

10 parts on this diagram · 2 diagrams in section
