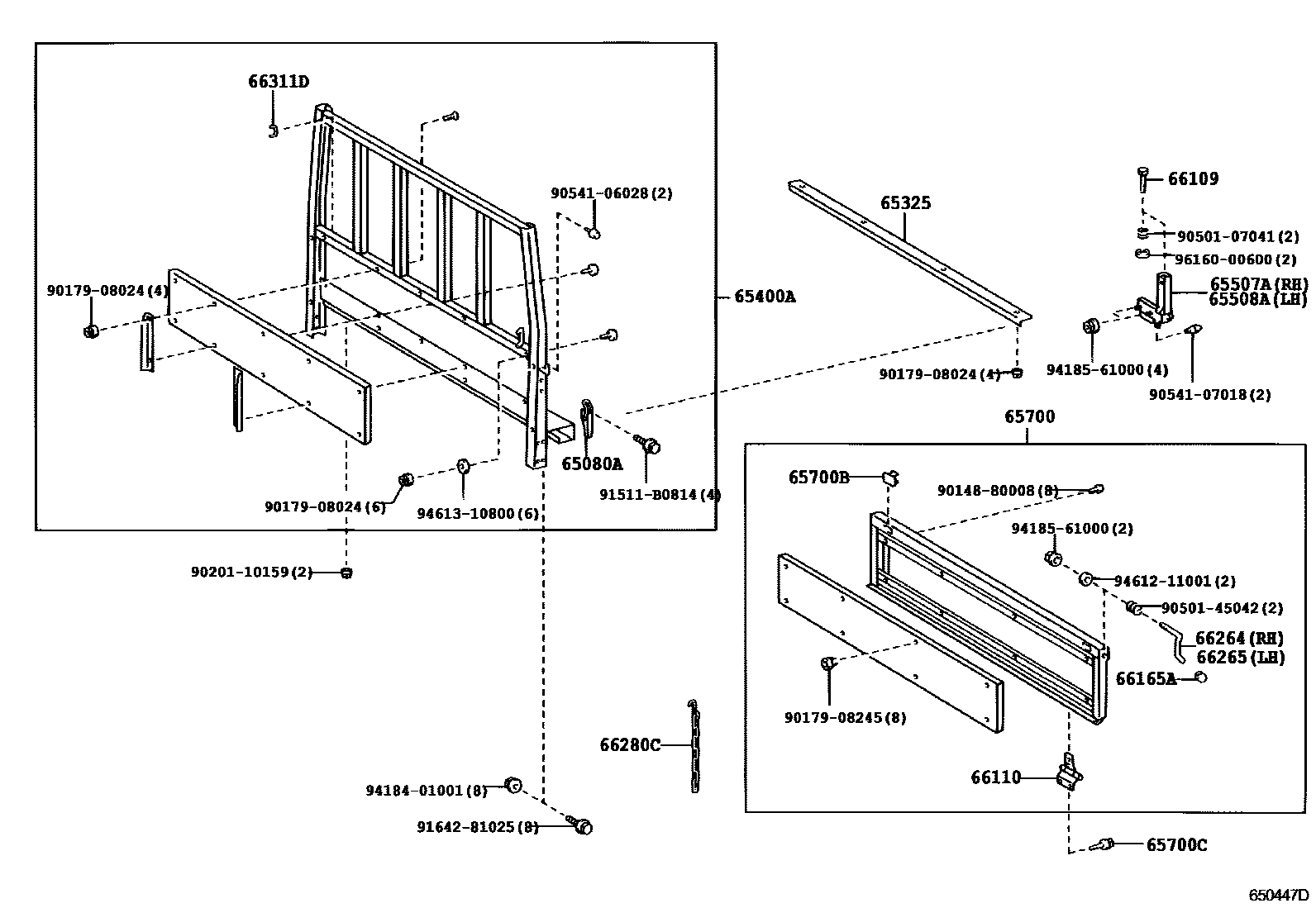

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701iWU410,XZU412,422..CBU200212-201106

sub65080-92702

65325PLATE, FLOOR BOARD, FRONT

main65325-37040iXZU412..55T..CBU200212-200610

sub65325-37100

main65325-37050iWU410,XZU412..(65T,75T)..CBU200212-201106

sub65325-37110

65400AGUARD ASSY, REAR BODY

main65400-3V250iXZU422..CBU;XZU412..85T..CBU200212-201106

main65400-3V580iXZU412..55T..CBU200212-200610

main65400-3V600iWU410,XZU412..(65T,75T)..CBU200212-201106

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-37030iWU422..CBU;WU412..85T..CBU200212-201106

main65507-37040iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-37030iXZU422..CBU;XZU412..85T..CBU200212-201106

main65508-37040iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

65700GATE ASSY, REAR BODY TAIL

main65700-37040iWU410,XZU412..(65T,75T)..CBU200212-201106

main65700-37050iXZU412..55T..CBU200212-200610

main65700-37120iWU422..CBU;WU412..85T..CBU200212-201106

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430iWU410,XZU412,422..CBU200212-201106

65700CBOLT, W/WASHER(FOR TAIL GATE)

main90119-08464iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

66109HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER

main66193-37010iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

66110HINGE ASSY, TAIL GATE

main65535-37080iXZU422..CBU;XZU412..85T..CBU200212-201106

main66110-37010iWU41#..5F..CBU200212-201012

sub66110-37012

main66110-37011iWU41#..5F..CBU201101-201106

sub66110-37012

66165HANDLE, TAIL GATE LATCH, LH

main66265-37010iXZU422..CBU;XZU412..85T..CBU200212-201106

66165ACAP, GATE LATCH HANDLE

main66165-87402iWU41#,422..CBU200912-201106

main66165-92701iWU410,XZU412,422..CBU200212-200911

66264HANDLE, TAIL GATE LATCH, RH

main66264-37010iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

66265HANDLE, TAIL GATE LATCH, LH

main66265-37010iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

66280CCHAIN ASSY, TAIL GATE

main66280-37020iWU410,XZU412,422..CBU200212-201106

66311DHOOK, ROPE

main66312-37030iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

9014880008

main90148-80008

9017908024

main90179-08024

9017908245

main90179-08245

9020110159

main90201-10159

9050107041

main90501-07041

9050145042

main90501-45042

9054106028

main90541-06028

9054107018

main90541-07018

91511B0814

main91511-B0814

9164281025

main91642-81025

9418401001

main94184-01001

9418561000

main94185-61000

9461211001

main94612-11001

9461310800

main94613-10800

9616000600

main96160-00600

31 parts on this diagram · 2 diagrams in section
