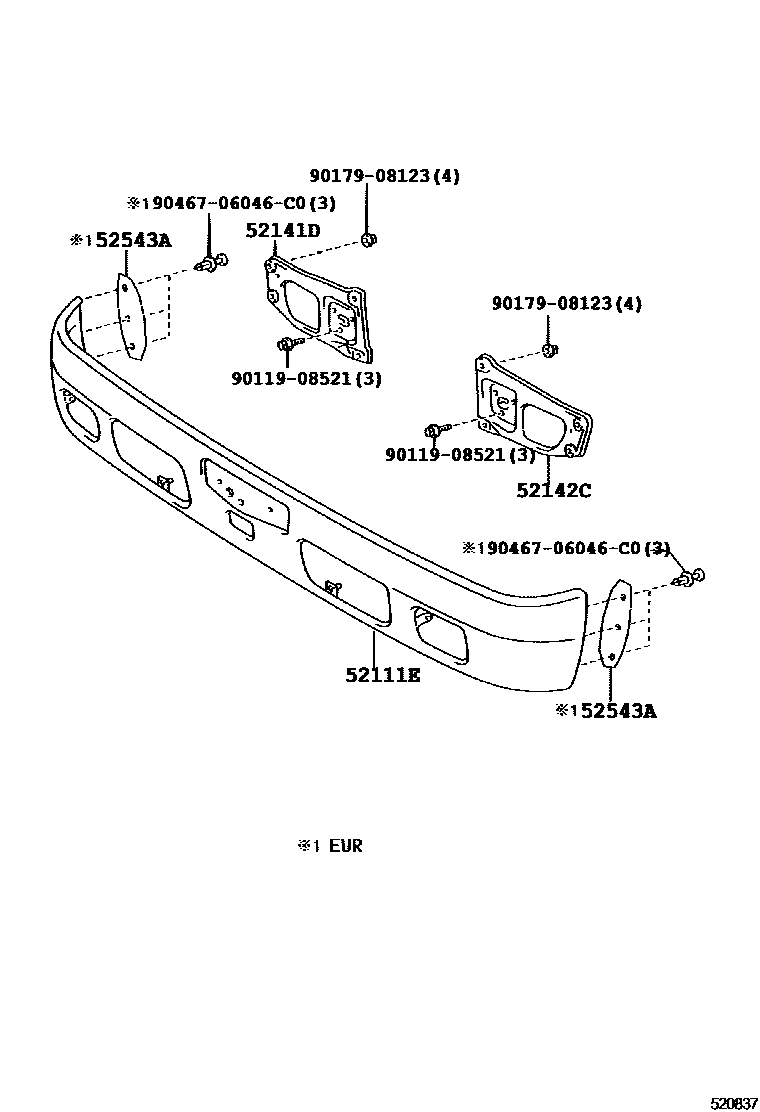

FRONT BUMPER & BUMPER STAY

0001 1STEEL TYPE 0002 1RESIN TYPE

52111EBAR, FRONT BUMPER

main52101-37211-A0iXZU404,414,424..GEN200110-200207

STEEL TYPE (PAINTED),WHITE,058

main52101-37212-A0iXZU414,424,434..EUR200112-200205

STEEL TYPE (PAINTED),WHITE,058

main52101-37560-A0iXZU414,424,434..EUR200205-200212

STEEL TYPE (PAINTED),WHITE,058

main52101-37563-A0iXZU414,424,434..EUR200302-200506

STEEL TYPE (PAINTED),WHITE,058

main52101-37917iXZU404,414,424,434..ARL200506-200610

STEEL TYPE (LESS COLOR)

main52101-37918iXZU415,425,435200506-200708

STEEL TYPE (LESS COLOR)

main52101-37920iBU410,420200506-200701

STEEL TYPE (DARK GRAY METALLIC PAINTED)

main52101-37921iBU410,420,WU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA,TAIW200302-200506

STEEL TYPE (DARK GRAY METALLIC PAINTED)

main52101-37922iXZU404,414,424,434..ARL200501-200506

STEEL TYPE (LESS COLOR)

main52101-37925iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433200610-200906

STEEL TYPE (DARK GRAY METALLIC PAINTED)

main52101-37927iXZU415,425,435200708-200905

STEEL TYPE (LESS COLOR)

main52101-37950iWU41#,422,XZU413,423200906-201106

STEEL TYPE (DARK GRAY METALLIC PAINTED)

main52101-37970iXZU419,429,439200908-201208

STEEL TYPE (LESS COLOR)

main52111-37320iBU410,420200212-200701

RESIN TYPE (LESS COLOR)

52141DSTAY, FRONT BUMPER, RH

main52141-37130iXZU404,414,424..GEN200110-200212

main52141-37131iXZU412,422..6F;WU410,420,XZU420,430..SA200302-200802

MARK = R

main52141-37180iBU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW200212-200506

MARK = RZ

main52141-37181iWU41#,422,XZU413,417,423,427..GCC,GEN,TAIW200610-201106

MARK = RZ

52142CSTAY, FRONT BUMPER, LH

main52142-37110iXZU404,414,424..GEN200110-200212

main52142-37111iXZU412,422..6F;WU410,420,XZU420,430..SA200302-200802

MARK = L

main52142-37160iBU410,420,WU410,XZU404,41#,422,424,434..ARL,GCC,GEN,TAIW200212-200506

MARK = LZ

main52142-37161iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200506-200610

MARK = LZ

52543ASEAL, FRONT BUMPER SIDE

main52543-25010×2iXZU415,425,435200112-200708

9011908521

main90119-08521

9017908123

main90179-08123

9046706046C0

main90467-06046C0

7 parts on this diagram · 2 diagrams in section
