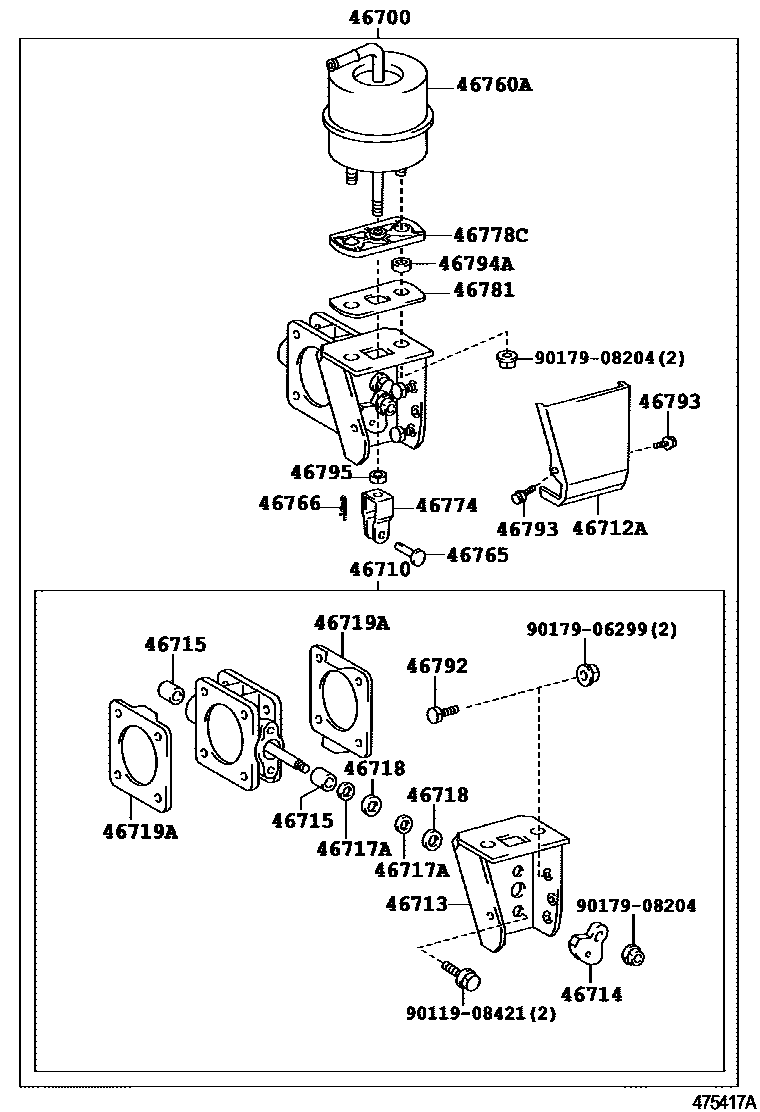

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

0001 1 0002 1

46700RETARDER ASSY, EXHAUST

main46700-37071iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

main46700-37120iBU410,420200411-200601

main46700-37130iXZU412,422..LHD..TD200212-200606

main46700-37131iXZU412,422..6F200607-200703

main46700-37132iXZU412,422200704-200802

main46700-37161iWU410..GCC,GEN200610-200611

main46700-37162iWU410,XZU417,427..GCC,GEN,TAIW200611-200702

main46700-37163iWU410,XZU417,427..GCC,GEN,TAIW200703-200704

main46700-37164iWU410..65T;WU410..75T..GEN;WU420,XZU417,427200704-201106

main46700-37170iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200408-200606

main46700-37171iXZU414,424,434..EUR200607-200608

main46700-37172iWU410,420,XZU415,420,425,43#..EUR,SA200611-200702

main46700-37173iWU410,420,XZU415,420,425,43#..EUR,SA200703-200704

main46700-37174iXZU415,425,435200704-200708

main46700-37190iXZU413,423200610-200703

main46700-37191iXZU413,423,433200704-201106

main46700-37200iBU410,420200602-200701

main46700-37210iWU412,422200610-201106

46710VALVE ASSY, EXHAUST BRAKE

main46710-37031iXZU412,422..LHD..TD200110-200607

main46710-37032iXZU413,423200610-200704

main46710-37033iXZU413,423,433200704-201106

main46710-37110iWU412,422200610-201106

main46710-37120iBU410,420200411-200602

main46710-37150iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200408-200607

main46710-37151iXZU414,424,434..EUR200607-200608

main46710-37152iWU410,420,XZU420,430..SA200704-200802

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iWU412,422200610-201106

main46712-36270iBU410,420200411-200602

main46712-37030iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

main46712-37150iWU410..65T;WU410..75T..GEN;WU420,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK,DSL200610-201208

46713BRACKET, EXHAUST VALVE

main46713-36060iBU410,420200602-200701

main46713-36270iBU410,420200411-200602

main46713-37030iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

main46713-37150iXZU415,425,435200704-200708

46714LEVER, EXHAUST VALVE

main46714-36010iWU412,422200610-201106

main46714-37030iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200703

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBU410,420200602-200701

L=16.0

main46715-37031×2iXZU412,422..6F200110-200704

L=14,OD=18

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iWU412,422200610-201106

main46717-37030×2iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

main46717-37150×2iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,XZU404,414,424,434..ARL,GCC,GEN200408-200610

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iWU412,422200610-201106

main46718-37030×2iWU410..65T;WU410..75T..GEN;WU420,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK,DSL200610-201208

46719AGASKET, EXHAUST RETARDER

main46719-37030×2iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36093iWU412,422200610-201106

main46760-37040iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

main46760-37130iXZU413,423,433200610-201106

main46760-37160iWU410..GCC,GEN200610-200611

main46760-37162iWU410..65T;WU410..75T..GEN;WU420,XZU417,427200611-201106

main46760-37170iWU410,420,XZU415,420,425,430,435..EUR,SA200408-200611

main46760-37172iWU410,420,XZU415,420,425,43#..EUR,SA200611-200703

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iWU412,422200610-201106

main46765-37030iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200703

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU410,420200411-200701

main46766-37030iWU410,420,XZU420,430..SA200704-200802

46774CLEVIS, EXHAUST BRAKE ROD

main46744-25010iBU410,420200602-200701

main46774-36270iBU410,420200411-200602

main46774-37030iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200703

46778CGUIDE, EXHAUST RETARDER ACTUATOR ROD

main46778-36060iBU410,420200411-200701

main46778-37030iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200611

main46778-37031iXZU415,425,435200704-200708

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-28010iWU412,422200610-201106

main46781-37030iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200703

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iWU412,422200610-201106

main46792-37030×2iWU410,420,XZU415,420,425,430,435..EUR,SA200110-200703

46793BOLT, EXHAUST VALVE LINK COVER

main46791-37150×2iXZU412,422..6F200607-200802

main46793-36010×2iBU410,420200411-200701

main93381-16008×2iXZU422..DSL;XZU412..RHD;XZU412..LHD..DSL;WU410,420,XZU404,414,420,424,43#200110-200408

46794ACOLLAR, ACTUATOR ROD GUIDE

main46794-37030×2iXZU415,425,435200704-200708

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBU410,420200411-200701

main46795-37030iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200610

9011908421

main90119-08421

9017906299

main90179-06299

9017908204

main90179-08204

22 parts on this diagram · 2 diagrams in section
