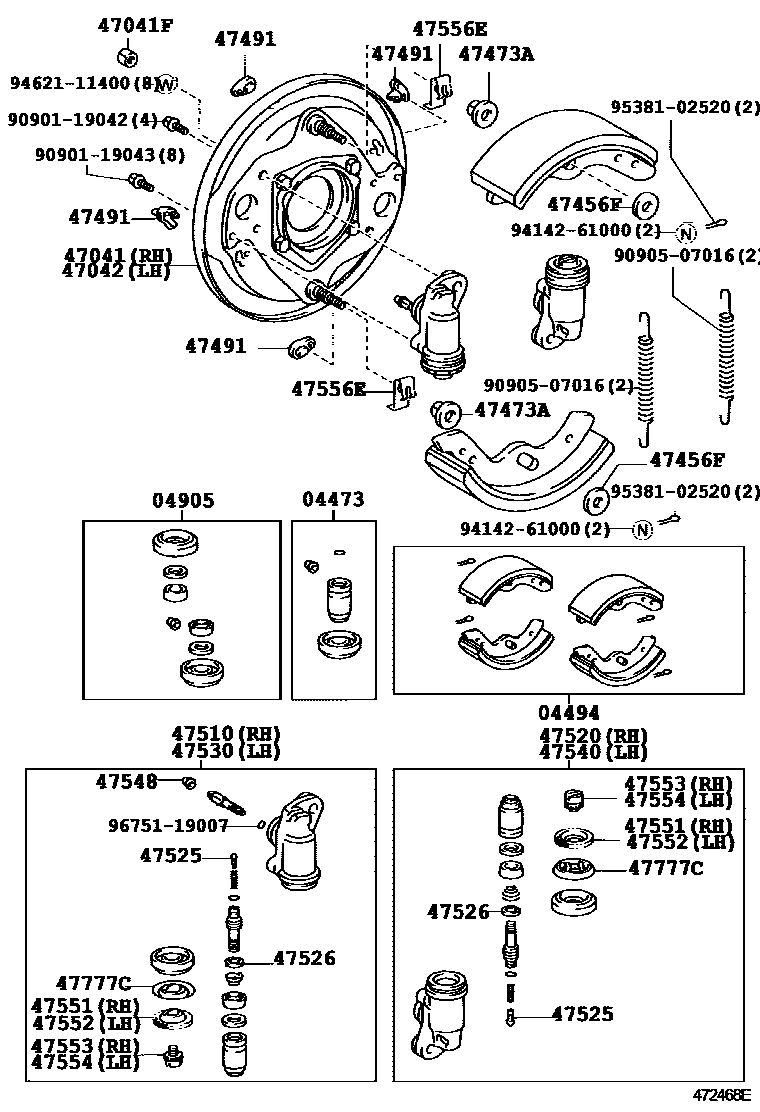

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1 0005 1 0008 1

04473CYLINDER KIT, FRONT WHEEL

main04469-37010iWU410,420,XZU423,433..SA200802-200812

LH

sub04469-37011

main04469-37110iWU410..GCC;XZU413..55T200610-201106

LH

main04473-36030×2iXZU412..55T;XZU414..LHD..GEN200212-200610

RH

main04473-36040×2iXZU412..55T;XZU414..LHD..GEN200212-200610

LH

main04473-37050×2iXZU424,434..75T;XZU414..75T..GEN200110-200212

RH

sub04473-37051

main04473-37060×2iXZU424,434..75T;XZU414..75T..GEN200110-200212

LH

sub04473-37061

main04473-37070×2iXZU424..LHD..GEN;WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200212-200610

RH

sub04473-37071

main04473-37080×2iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

LH

sub04469-37091

main04473-37091×2iXZU424,434..EUR200212-200608

RH

sub04473-37121

main04473-37101×2iXZU414,424..RHD..75T..GEN200212-200610

LH

sub04469-37011

main04473-37120iWU410,420,XZU423,433..SA200802-200812

RH

sub04473-37121

main04473-37180iWU410..GCC;XZU413..55T200610-201106

RH

04494SHOE KIT, FRONT BRAKE

main04494-36290iWU410..GCC;XZU413..55T200610-201106

MARK NBK LN519

main04494-37021×2iXZU414..EUR200305-200608

MARK NBK D2167

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-36140iWU410..GCC;XZU413..55T200610-201106

main04905-36160×2iXZU412..55T;XZU414..LHD..GEN200212-200610

main04905-37050×2iXZU424,434..75T;XZU414..75T..GEN200110-200212

sub04905-37052

main04905-37071iWU410,420,XZU423,433..SA200802-200812

sub04905-37072

main04905-37080×4iXZU412,422..6F200212-200802

sub04905-37081

main04905-37160×2iXZU424,434..EUR200212-200608

sub04905-37161

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-37101iWU410..GCC;XZU413..55T200610-201106

main47041-37131iWU410,420,XZU420,430..SA200110-200802

sub47041-37210

main47041-37180iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

sub47041-37220

47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main94130-01441×8iXZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)200110-200610

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-37101iXZU412..55T;XZU414..LHD..GEN200212-200610

main47042-37131iXZU414,424,434..RHD..(65T,75T,85T)200110-200610

sub47042-37210

main47042-37180iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

sub47042-37220

47456FPLATE, FRONT BRAKE SHOE GUIDE

main47456-37010×4iWU410,420,XZU420,430..SA200110-200802

47473ANUT, FRONT BRAKE SHOE ADJUSTING

main47473-37020×4iXZU414,424,434..EUR200110-200608

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-36020×8iXZU412..55T;XZU414..LHD..GEN200212-200610

NO.1

main47491-37090×8iXZU414,424,434..EUR200110-200608

main47492-28010×4iXZU412..55T;XZU414..LHD..GEN200212-200610

NO.2

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-36170iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47510-36171

main47510-37070iXZU414,424..75T..GEN200110-200212

sub47510-37071

main47510-37080iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201002

main47510-37081iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47510-37082

main47510-37110iXZU414,424,434..EUR200305-200608

sub47510-37111

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-36180iWU410..GCC;XZU413..55T200610-201106

sub47520-36181

main47520-37090iXZU414,424..75T..GEN200110-200212

sub47520-37091

main47520-37100iBU410,420200212-200701

main47520-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47520-37102

main47520-37130iWU410,420,XZU423,433..SA200802-200812

sub47520-37131

47525PIN, WHEEL CYLINDER ADJUSTER

main47525-37010×8iXZU414,424..75T..GEN200110-200212

47526RING, AUTOMATIC ADJUSTER

main47526-37010×4iXZU414,424..75T..GEN200110-200212

RH

main47526-37020×4iXZU414,424..75T..GEN200110-200212

LH

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-36170iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47530-36171

main47530-37070iXZU414,424..75T..GEN200110-200212

sub47530-37071

main47530-37080iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201002

main47530-37081iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47530-37082

main47530-37110iXZU414,424,434..EUR200305-200608

sub47530-37111

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-36180iXZU412..55T;XZU414..LHD..GEN200212-200610

sub47540-36181

main47540-37090iXZU414,424..75T..GEN200110-200212

sub47540-37091

main47540-37100iBU410,420200212-200701

main47540-37101iWU412,422;WU410,XZU413,423..(65T,75T)..GEN201003-201106

sub47540-37102

main47540-37130iWU410,420,XZU423,433..SA200802-200812

sub47540-37131

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010×2iBU410,420200110-200701

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47506-37110×2iXZU414,424,434..RHD..(65T,75T,85T)200212-200610

main47552-37070×2iXZU414,424,434..EUR200110-200305

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47507-37110×2iXZU414,424,434..EUR200305-200608

main47552-37070×2iXZU414,424,434..EUR200110-200305

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47445-37040×2iXZU414,424..75T..GEN200110-200212

main47553-36060×2iWU410..GCC;XZU413..55T200610-201106

main47553-37050×2iWU412,422;WU410,XZU413,423..(65T,75T)..GEN200610-201106

main47553-37110×2iXZU412,422..6F;WU410,420,XZU420,430..SA200212-200802

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47445-37040×2iXZU414,424,434..EUR200110-200305

main47554-36060×2iWU410..GCC;XZU413..55T200610-201106

main47554-37050×2iXZU412,422..6F200212-200802

main47554-37110×2iWU410,420,XZU420,430..SA200212-200802

47556ESPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47556-37010×4iXZU414,424,434..EUR200110-200608

47777CPROTECTOR, DUST BOOT

main47777-37010×8iXZU414,424..75T..GEN200110-200212

9090119042

main90901-19042

9090119043

main90901-19043

9090507016

main90905-07016

9414261000

main94142-61000

9462111400

main94621-11400

9538102520

main95381-02520

9675119007

main96751-19007

29 parts on this diagram · 4 diagrams in section
