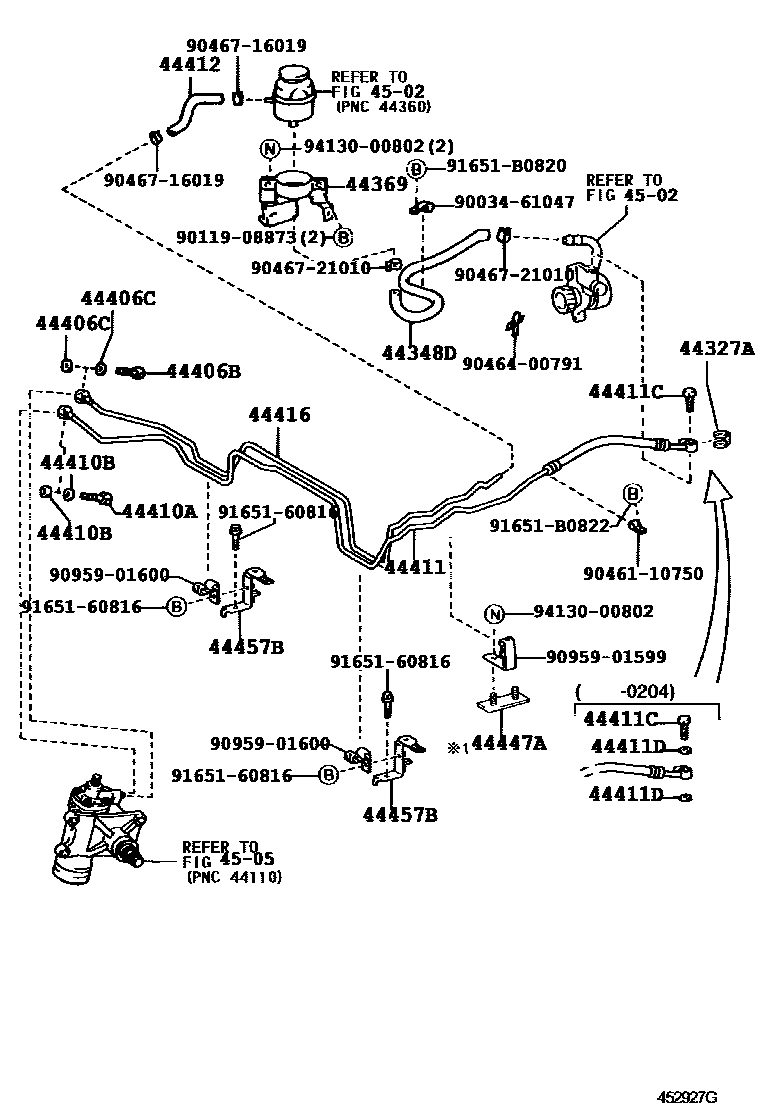

POWER STEERING TUBE

0001 1 0003 1 0005 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0015 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iXZU414,424,434..EUR200204-200608

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-37180iBU410,420200411-200701

main44348-37250iXZU404,412,422..5F;XZU414,424,434..ARL,GEN200110-200610

main44348-37280iWU410,420..SA200212-200802

main44348-37310iXZU415,425,435200608-200708

main44348-37410iWU412,42#;WU410..65T;WU410..75T..GEN200610-201106

main44348-37420iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

44369BRACKET, OIL RESERVOIR, NO.1

main44369-37110iWU410..GCC,GEN200212-200610

main44369-37150iXZU412,420,422,430..6F200110-200802

main44369-37170iXZU415,425,435200608-200708

main44369-37220iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-14003iXZU412,422..6F;WU410,420,XZU420,430..SA200110-200802

44406CGASKET(FOR RETURN TUBE)

main90430-14235×2iXZU414,424,434..EUR200110-200608

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-14003iXZU414,424,434..EUR200110-200608

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-14235×2iXZU414,424,434..EUR200110-200608

44411HOSE, PRESSURE FEED

main44411-37141iWU410,420..SA200212-200802

main44411-37210iXZU414,424,434..EUR200110-200212

main44411-37211iXZU412,422..LHD..DSL200302-200610

main44411-37220iXZU404,412,414,422,424,434..RHD200110-200610

main44411-37320iXZU415,425,435200608-200708

main44411-37370iXZU423,433..SA200802-200812

main44411-37380iXZU413,415,417,419,423,425,427,429,435,439..LHD..DCRTK200610-201208

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iXZU414,424,434..EUR200110-200608

main90904-01001iBU410,420200411-200701

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iXZU415,425,435200212-200708

main90430-16168×2iXZU404,414,424,434200110-200204

44412HOSE, RETURN

main44412-37080iXZU414,424,434..EUR200110-200608

main44412-37140iXZU415,425,435200608-200708

main44412-37240iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-37370iXZU414,424,434..EUR200110-200212

main44416-37371iWU410,XZU41#,422,424,434..LHD200212-200405

main44416-37372iBU410,420200406-200701

main44416-37380iWU410,420,XZU404,41#,42#,43#..RHD200110-200405

main44416-37381iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200406-200610

main44416-37490iXZU415,425,435200608-200708

main44416-37570iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main44416-37580iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-37020iBU410,420200212-200701

NO.1

main44447-37110iXZU412,422..LHD..DSL200302-200610

NO.1

main44447-37170iWU410..LHD; XZU412,414,422,424..LHD..5F..TD200212-200610

NO.2; PLANT NO. P11,NO.2

main44447-37220iXZU415,425,435200608-200708

main44447-37250iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

NO.1

main44447-37260iWU412,42#;WU410..65T;WU410..75T..GEN200610-201106

NO.3

main44447-37270iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

NO.3

44457BBRACKET, POWER STEERING TUBE SUPPORT, NO.2

main44457-37130×2iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200610

main44457-37150iXZU415,425,435200608-200708

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9003461047

main90034-61047

9011908873

main90119-08873

9046110750

main90461-10750

9046400791

main90464-00791

9046716019

main90467-16019

9046721010

main90467-21010

9095901599

main90959-01599

9095901600

main90959-01600

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0822

main91651-B0822

9413000802

main94130-00802

28 parts on this diagram · 10 diagrams in section
